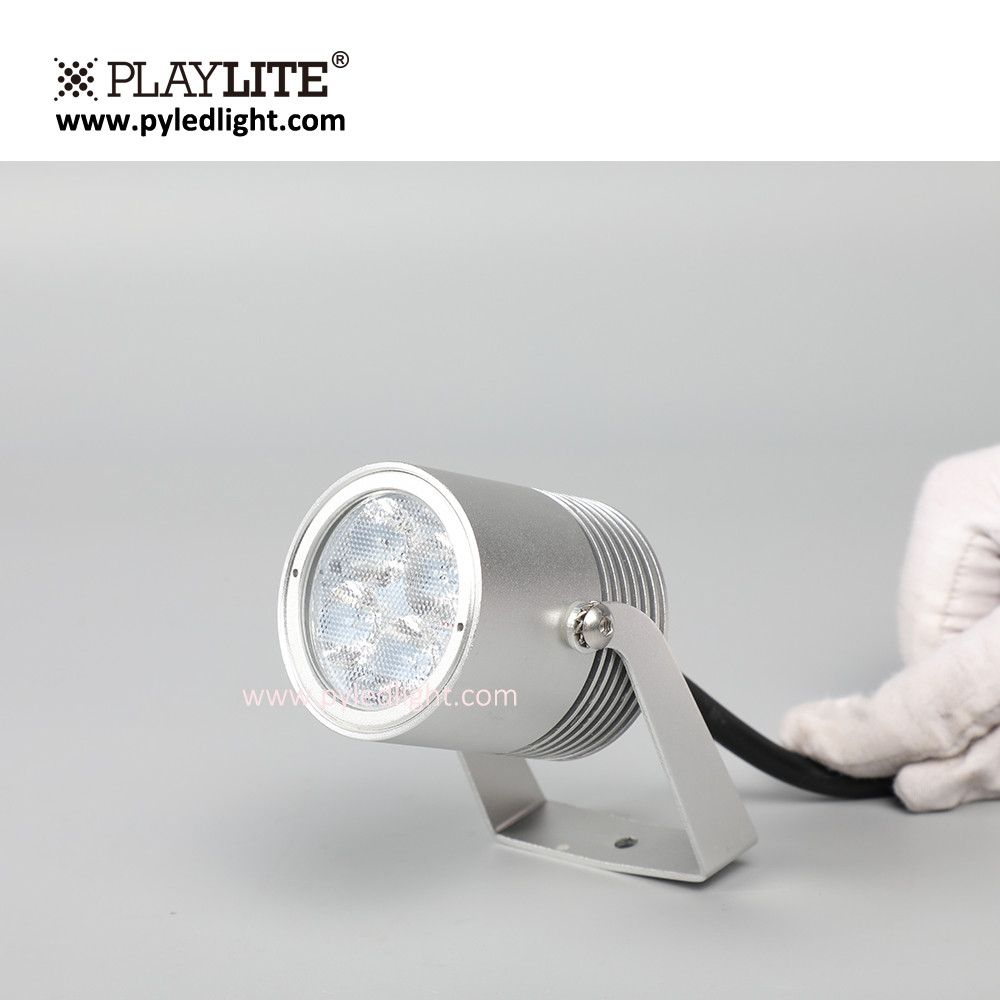

Layr Light
1 / 5
| General Data | |
| Item No. | UL-4002-0400-A |
| Power | 4 Watts |
| LED type | 4pcs 1W LED |
| Luminous flux | 320-370lm |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |

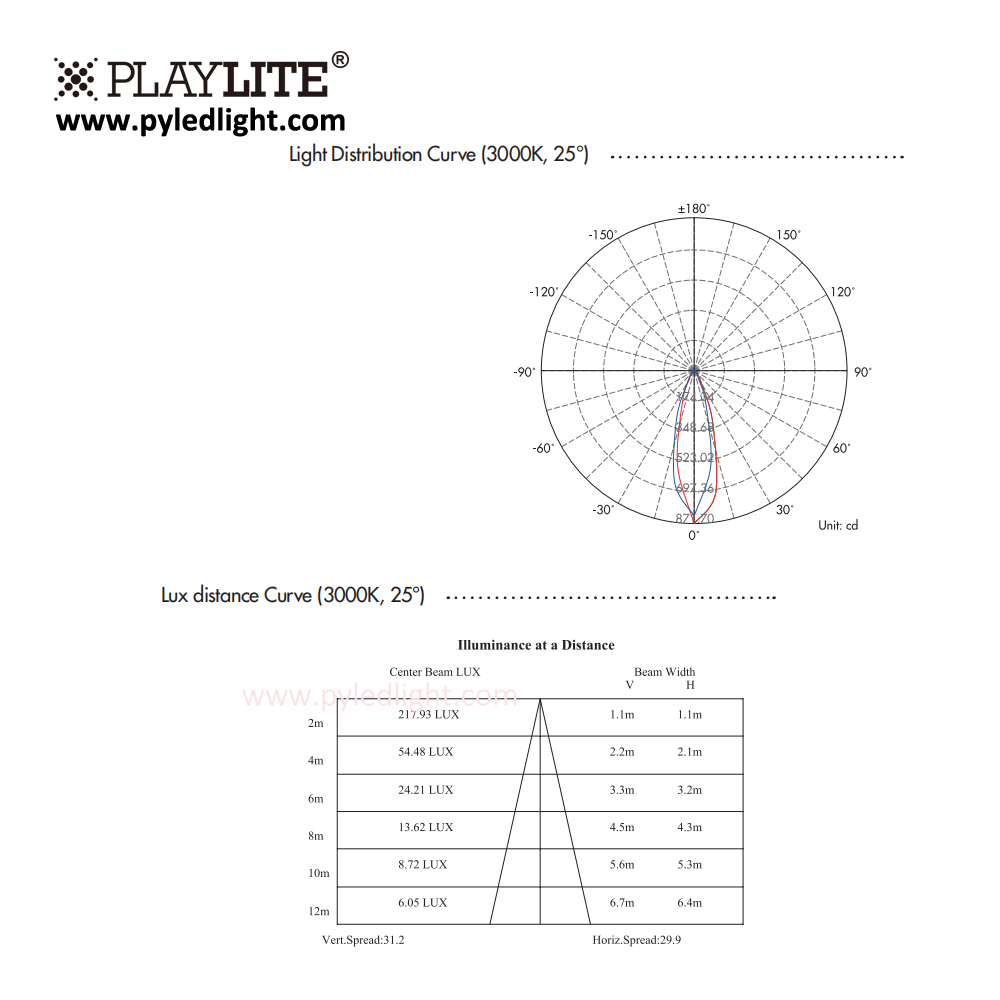

| Beam angle | 15°, 23°, 38°, 45°, 60° |

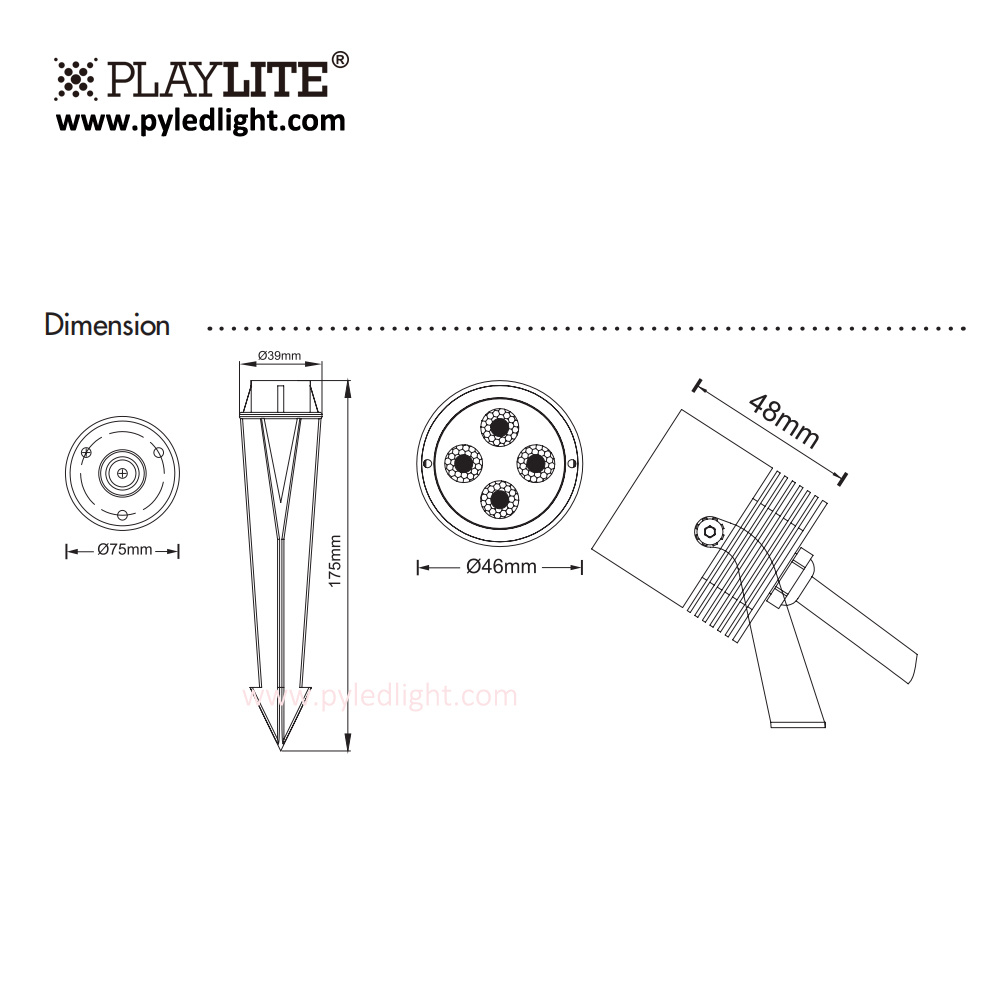

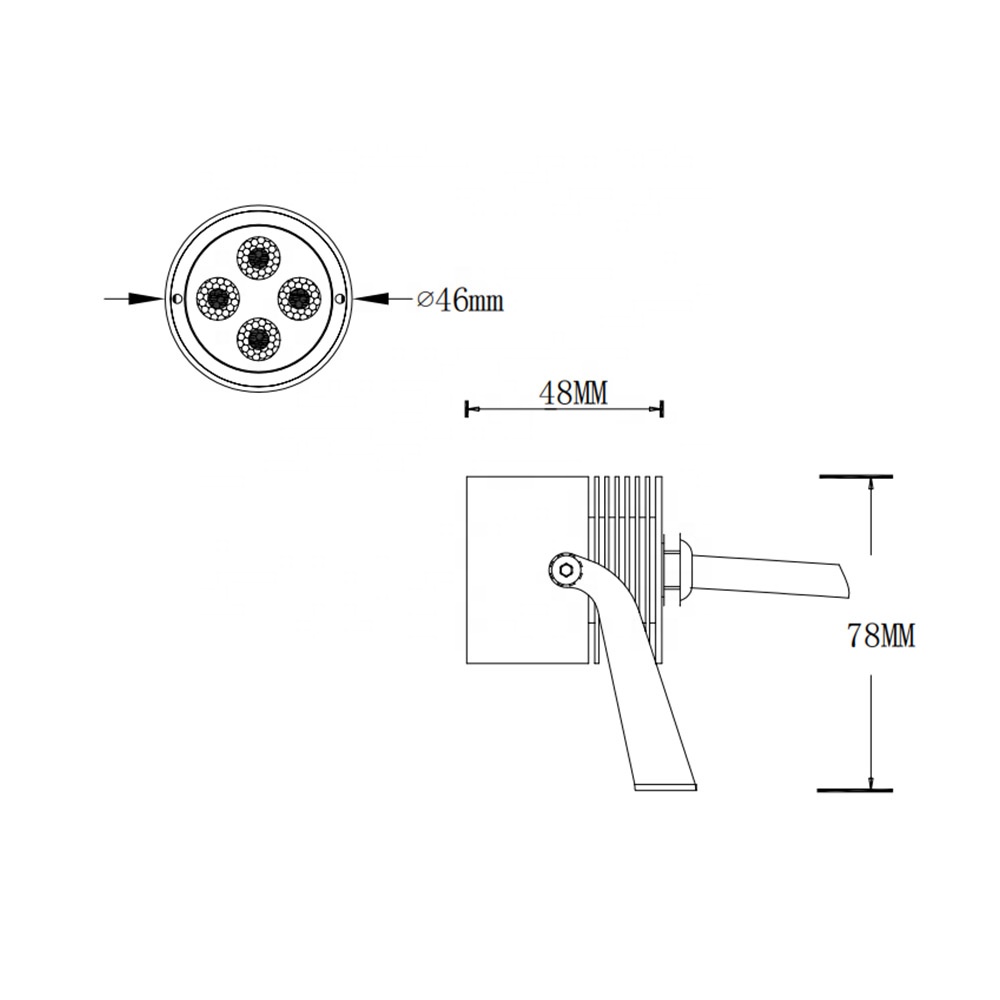

| Dimension | 46*48mm (Diameter x Height) |
| Cut out | / |
| Net weight | 0.246 kgs |
| Warranty | 3 years |
| Certifications | CE, RoHS |
| Electrical Data | |
| Input voltage | DC24V |
| Insulation class | Class I |
| Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
| Driver | high voltage constant current driver with transformer |
| Construction Data | |
| IP rating | IP67 Waterproof |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection finishing | 20~25µm thickness anodized film for housing. Dark grey |
| Trim | Passivated (Anodizing) Aluminum |
| Glass | Step tempered Glass. T=4mm. |
| Loading capacity | 220 kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |

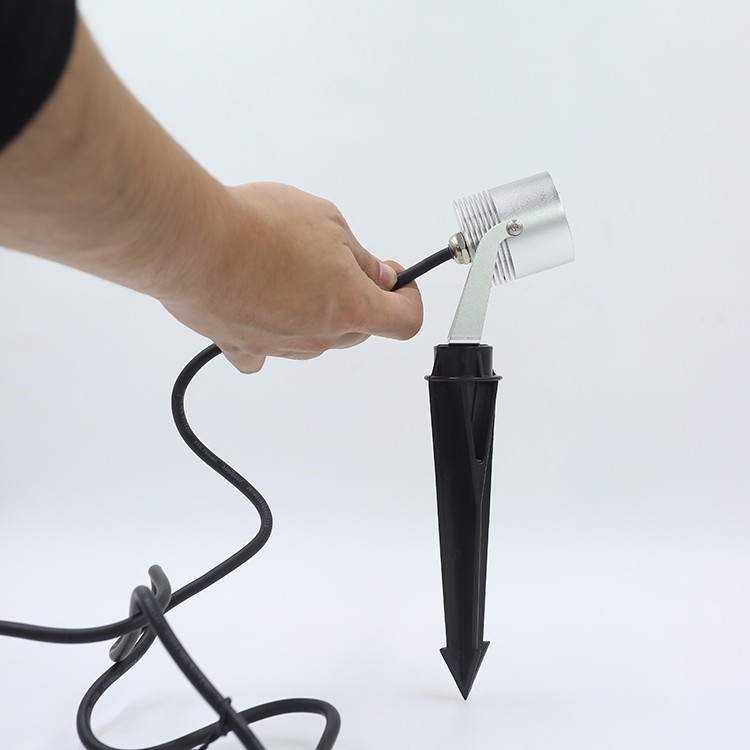

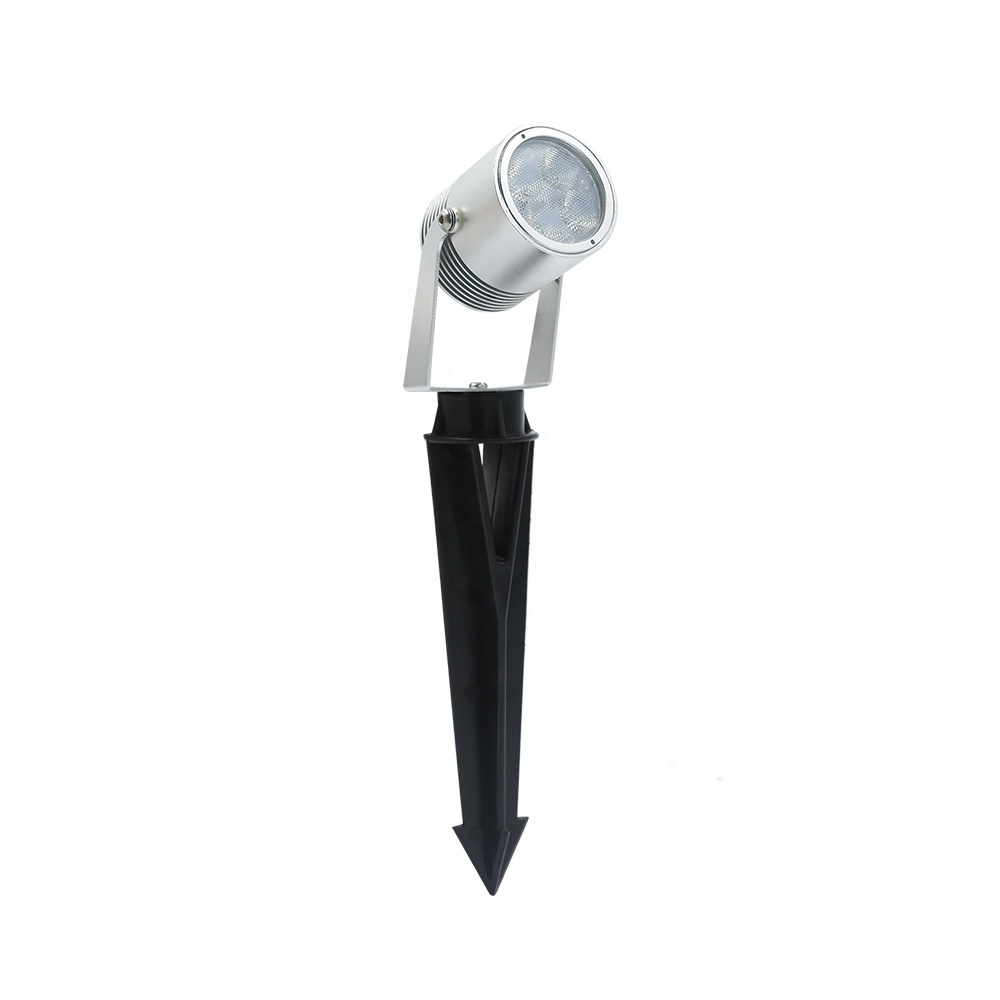

| Spike | With Aluminium spike as spike spot lights (Standard) |
| Round base | With SS304 round base for wall mounting (optional) |

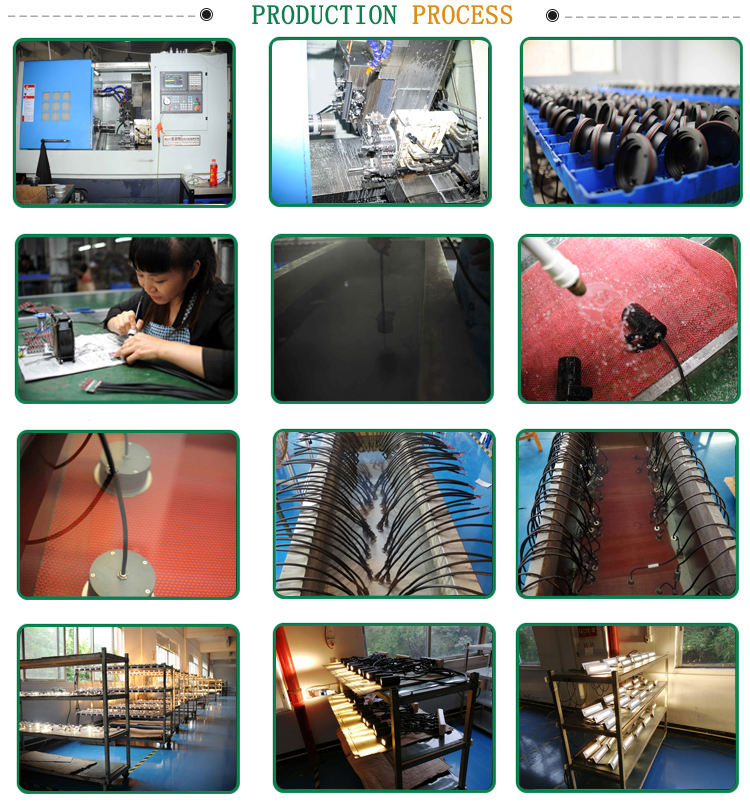

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.
The delivery date is around 7-15 days for samples, and 15~25 days for regular orders after receipt of payment.
For samples: 100% deposit. For regular order: 30% deposit in advance and 70% balance before shipment. The payment method can be Paypal, Western Union, or TT bank transfer.
We can provide EX-WORKS, CIF, or FOB delivery terms.
We are confident in our quality of design, and the warranty is 3 years.
Yes, please contact us for the detailed prices based on your specific quantity requirement.
