Architectural Linear Decorative Design Pendant Square Office Light Cross Any Shape Diy for Garage Gym Ceiling Lights

Product Description

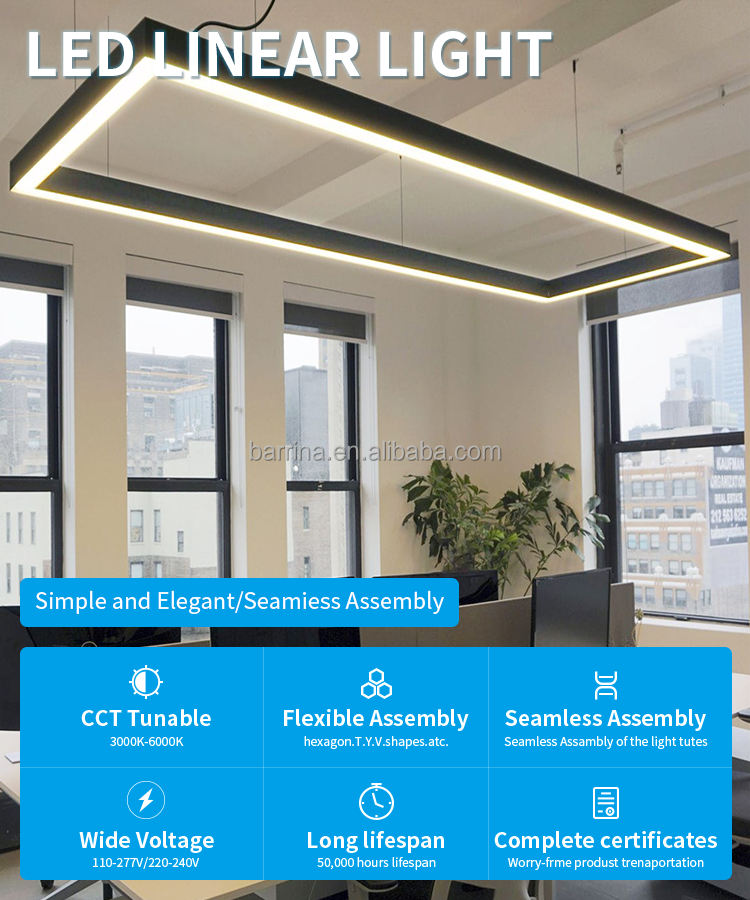

LED Linear Light Banner
Specification
Product name LED linear light-5575
Product size L1200*W55*H75mm
Material aluminium+PC
Surface treatment Teflon or Powder coated
Color Option black/white
Input voltage 85-240V 50/60HZ
Wattage 30W/36W/42W
CCT 3000K/4000K/6000K
Luminous Efficacy(lm/w) 100lm/w
LEDs life span 50000H
Color Render(CRI) RA≥80 or RA≥90
Power Factor(PF) ≥0.9
Beam Angle 120°

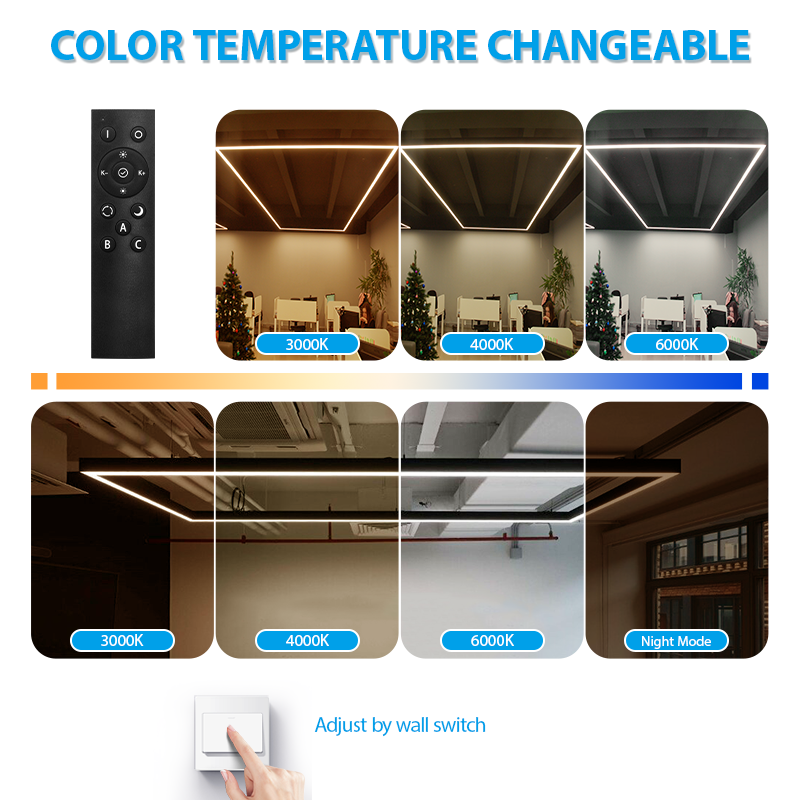

Optional Features 0-10V dimming,DALI dimming,2.4G dimming,CCT dimming
IP Rate IP20
Working Temp(℃) -20℃-40℃
Certification CE,ETL,FCC,ROHS,CCC
Warranty 3 Years or 5 Years
Product Features

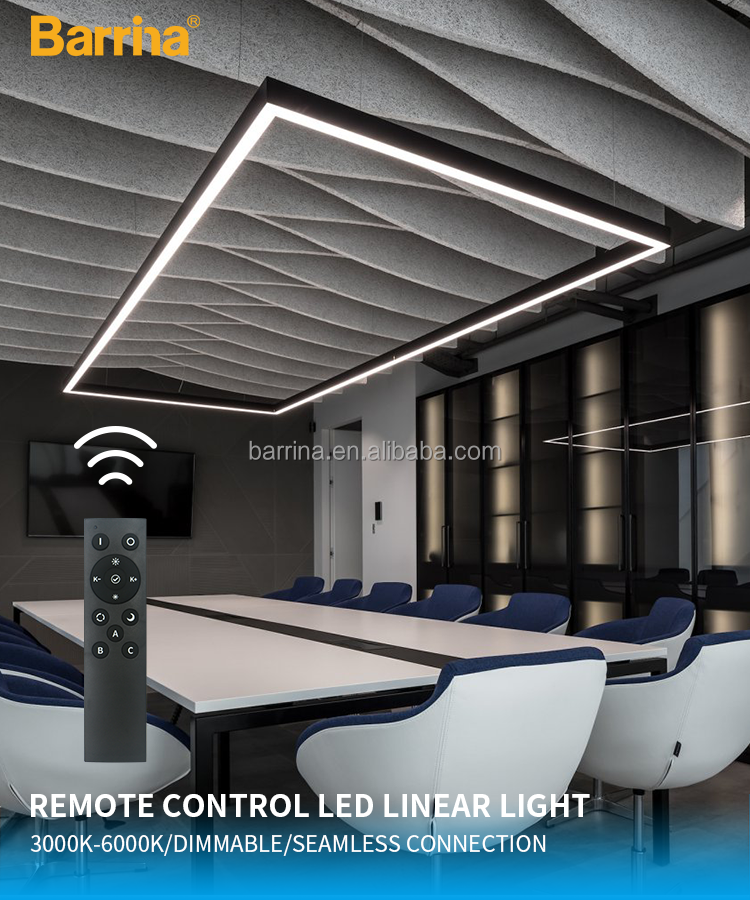

Product Feature 1

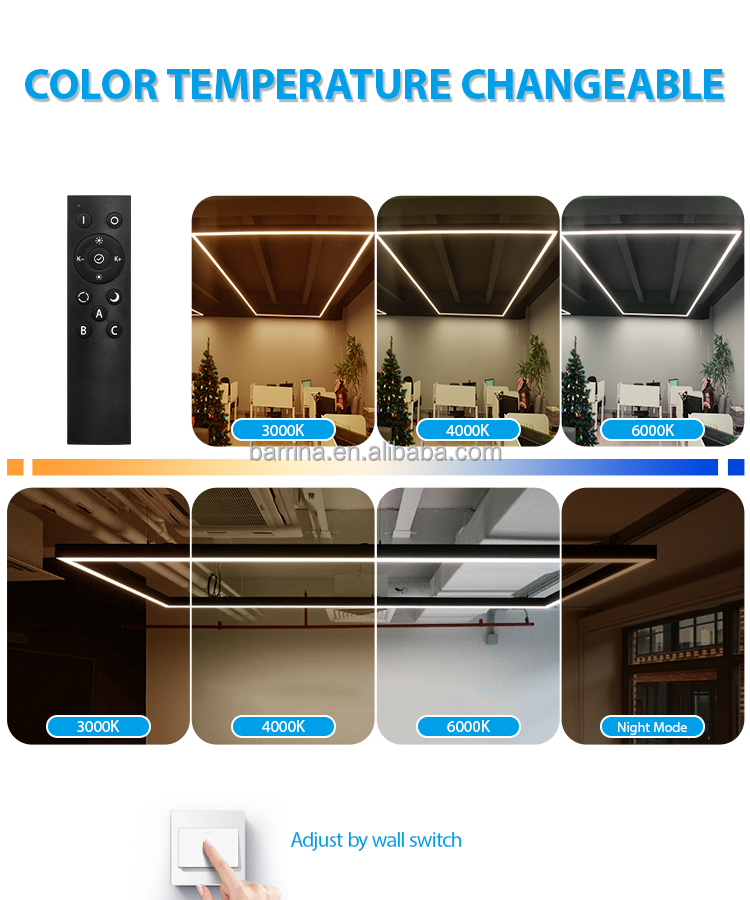

Product Feature 2

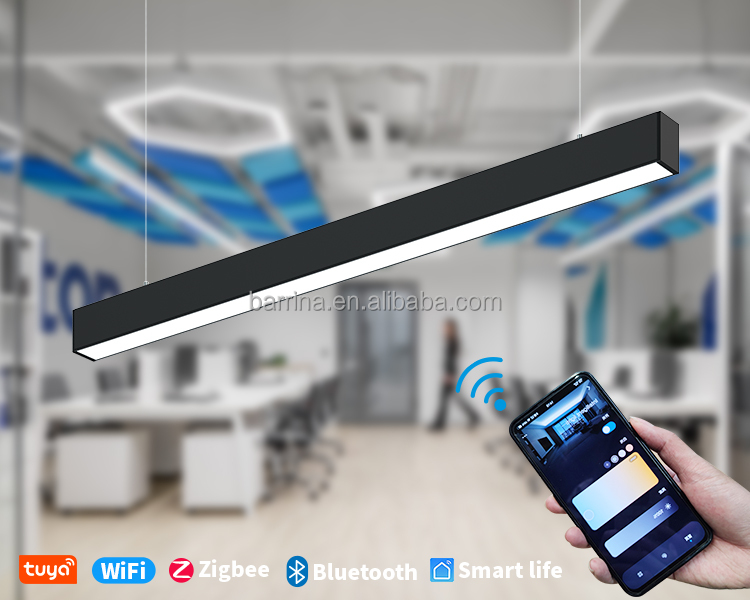

Product Feature 3
Product Specification
Model No. Product size Voltage Wattage Efficacy PF CRI Certificate
BTD5575-1236A0 1200x55x75mm 85-277V / 220-240V 36W >100lm/w >90 >80 ETL , CE
BTD5575-1030A0 1000x55x75mm 85-277V / 220-240V 30W >100lm/w >90 >80 ETL , CE
BTD5575-0927A0 900x55x75mm 85-277V / 220-240V 27W >100lm/w >90 >80 ETL , CE
BTD5575-0618A0 600x55x75mm 85-277V / 220-240V 18W >100lm/w >90 >80 ETL , CE
BTD5575-0309A0 300x55x75mm 85-277V / 220-240V 9W >100lm/w >90 >80 ETL , CE
90°splicing 150x150x75mm 85-277V / 220-240V 9W >100lm/w >90 >80 ETL , CE
120°splicing 228x157x75mm 85-277V / 220-240V 9W >100lm/w >90 >80 ETL , CE
T splicing 245x150x75mm 85-277V / 220-240V 12W >100lm/w >90 >80 ETL , CE
Y splicing 225x260x75mm 85-277V / 220-240V 12W >100lm/w >90 >80 ETL , CE
十 splicing 245x245x75mm 85-277V / 220-240V 15W >100lm/w >90 >80 ETL , CE
Light Distribution
Light Distribution Plot

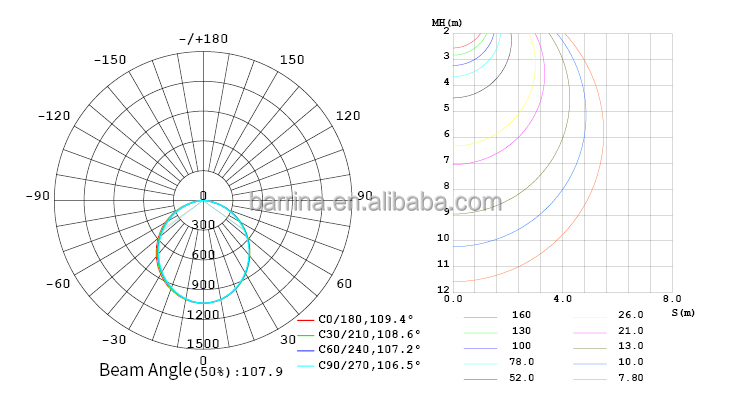

Light Distribution Angle
Light Distribution
The illumination data is in full view

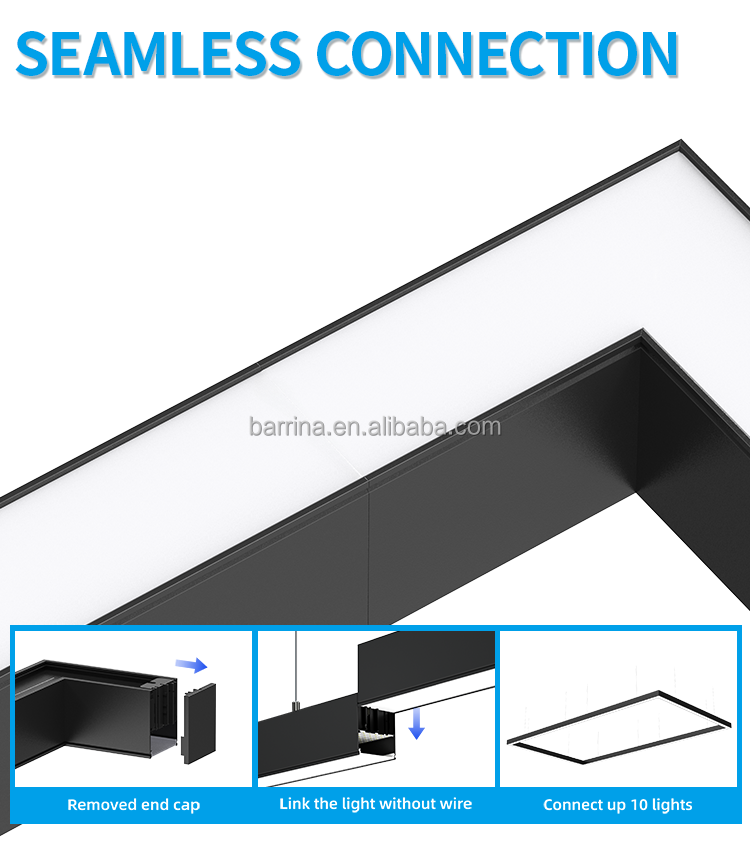

Installation Method 1

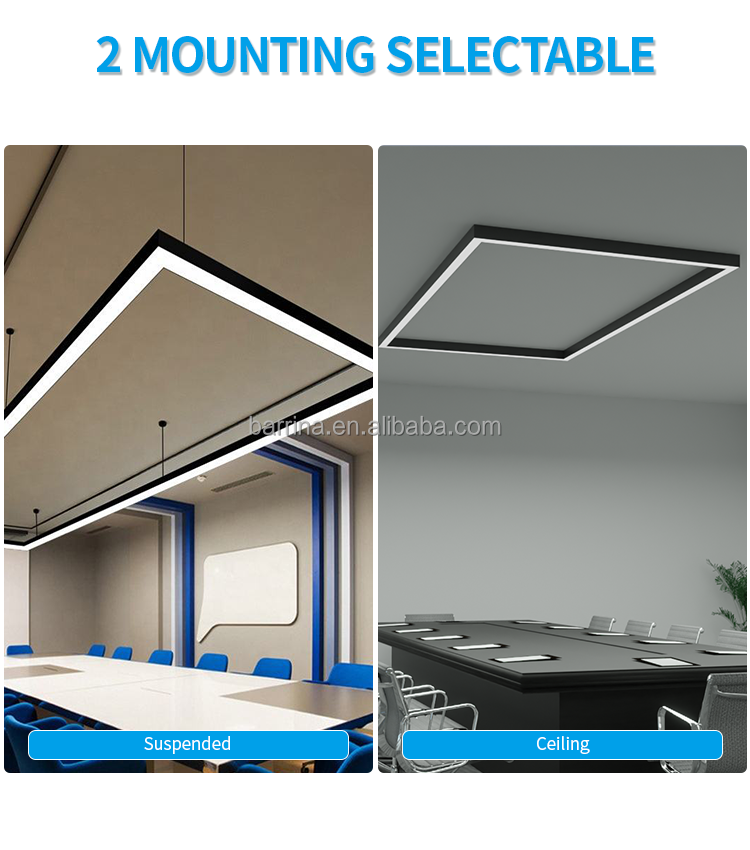

Installation Method 2

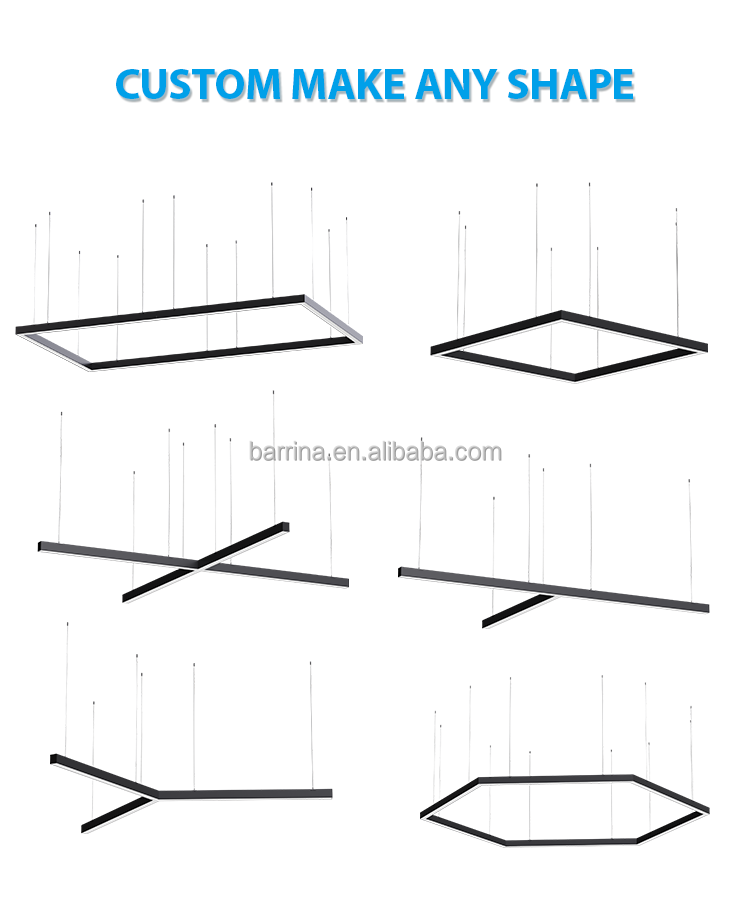

Installation Method 3

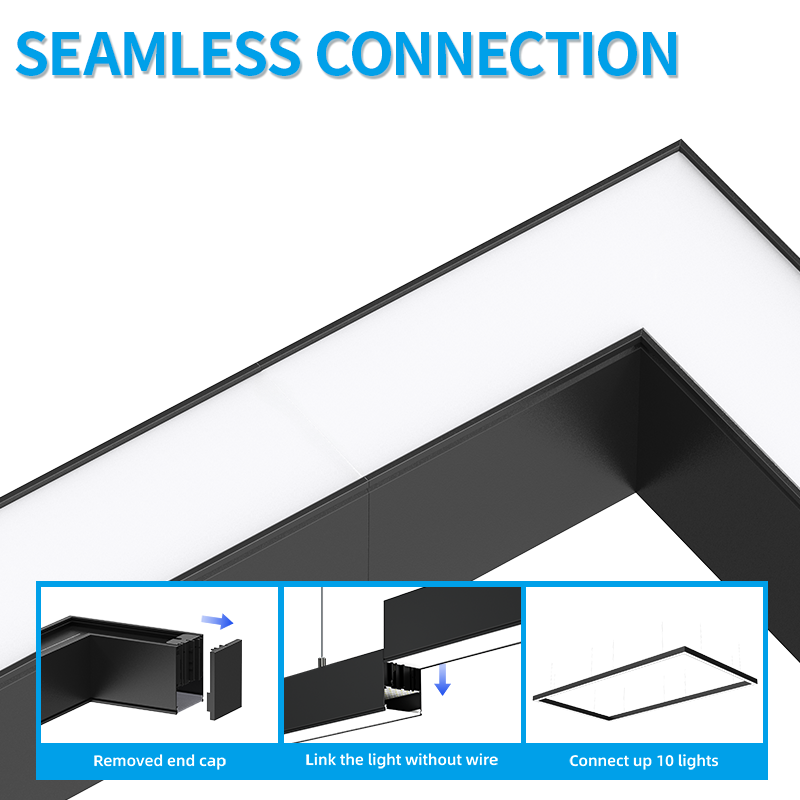

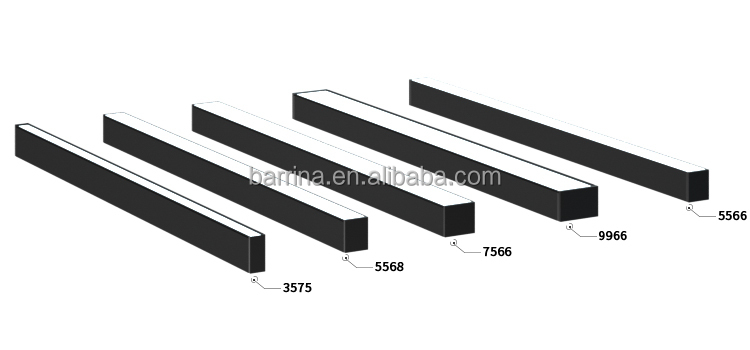

Seamless Connection Details

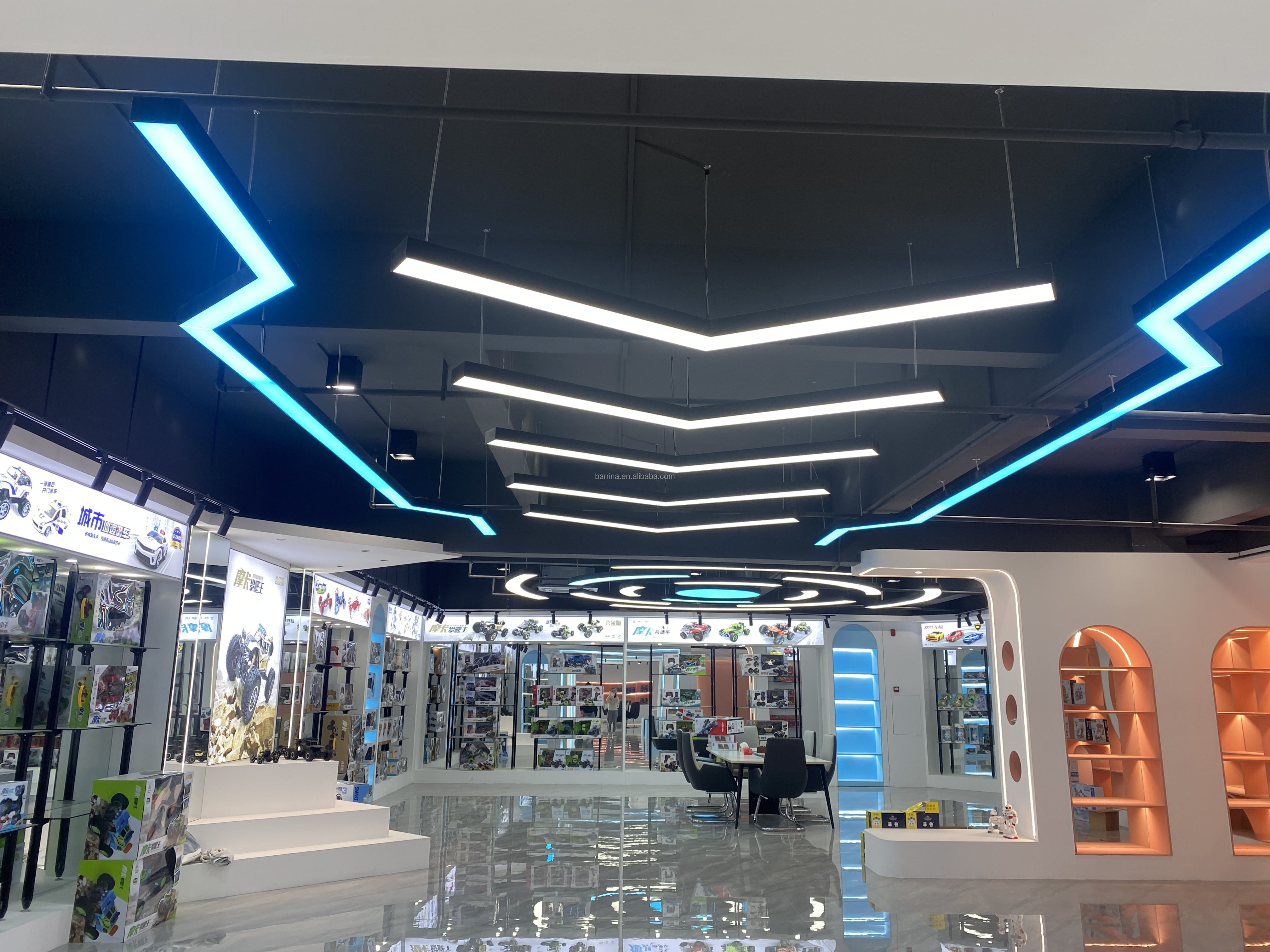

Project Case 1

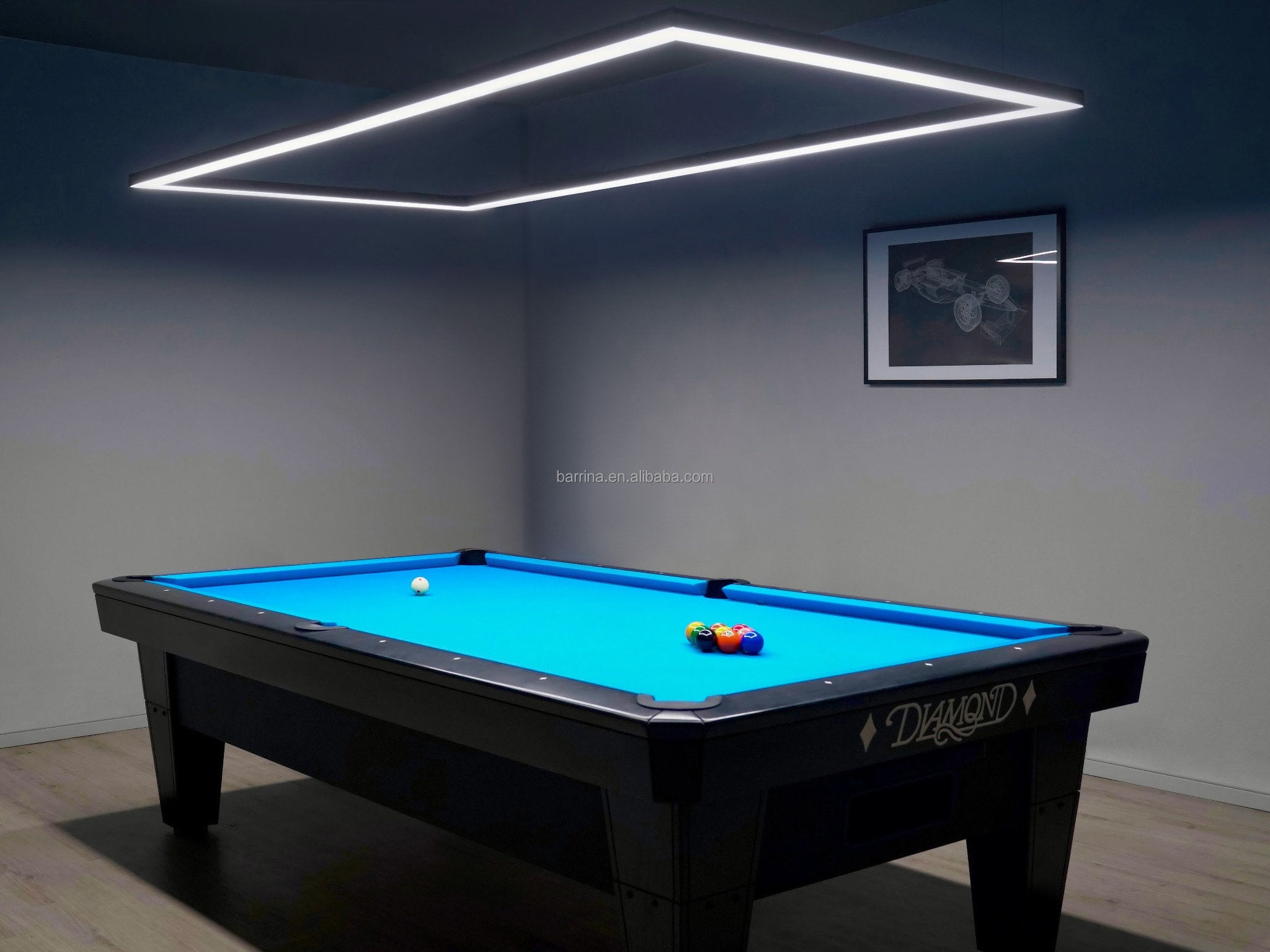

Project Case 2

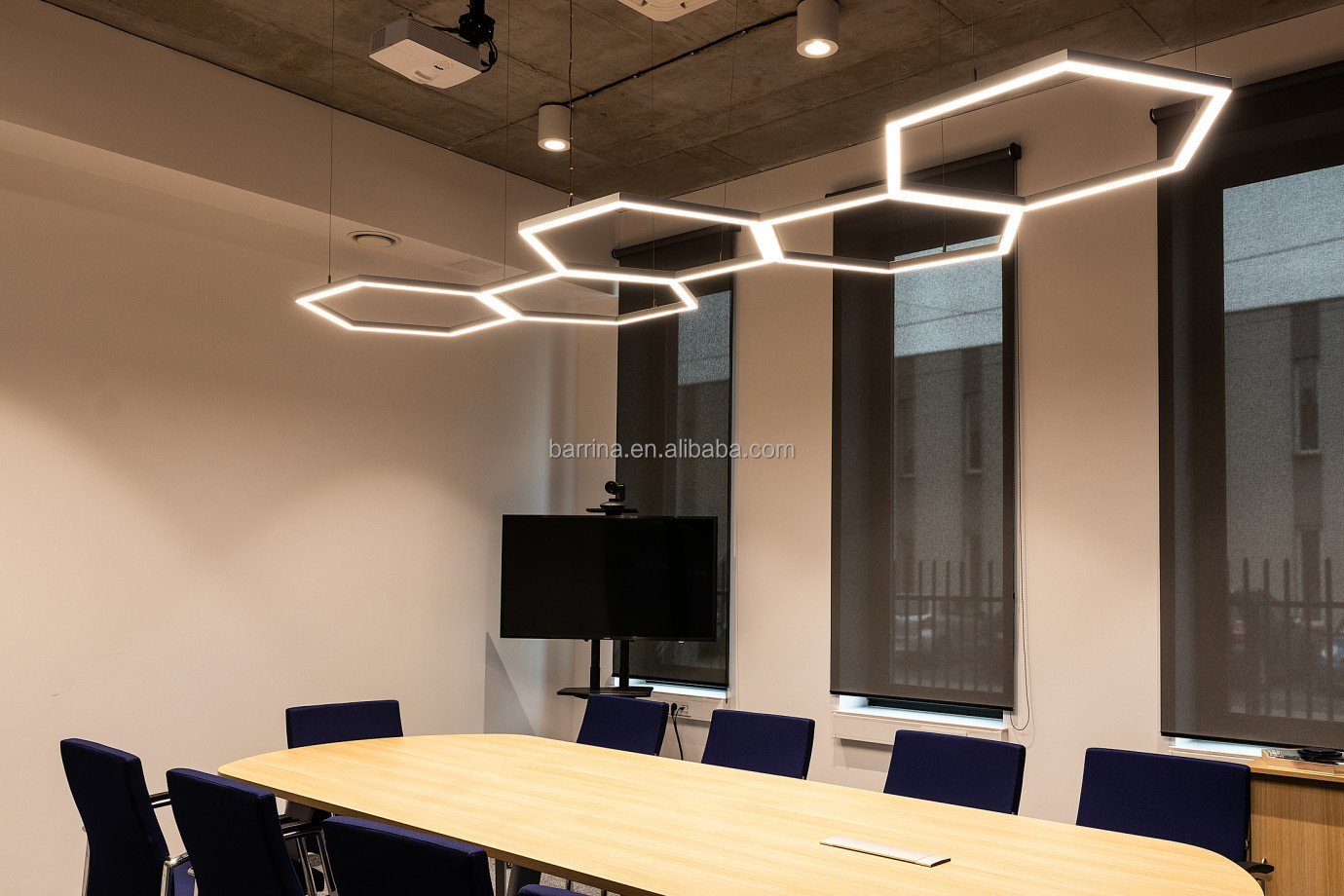

Project Case 3

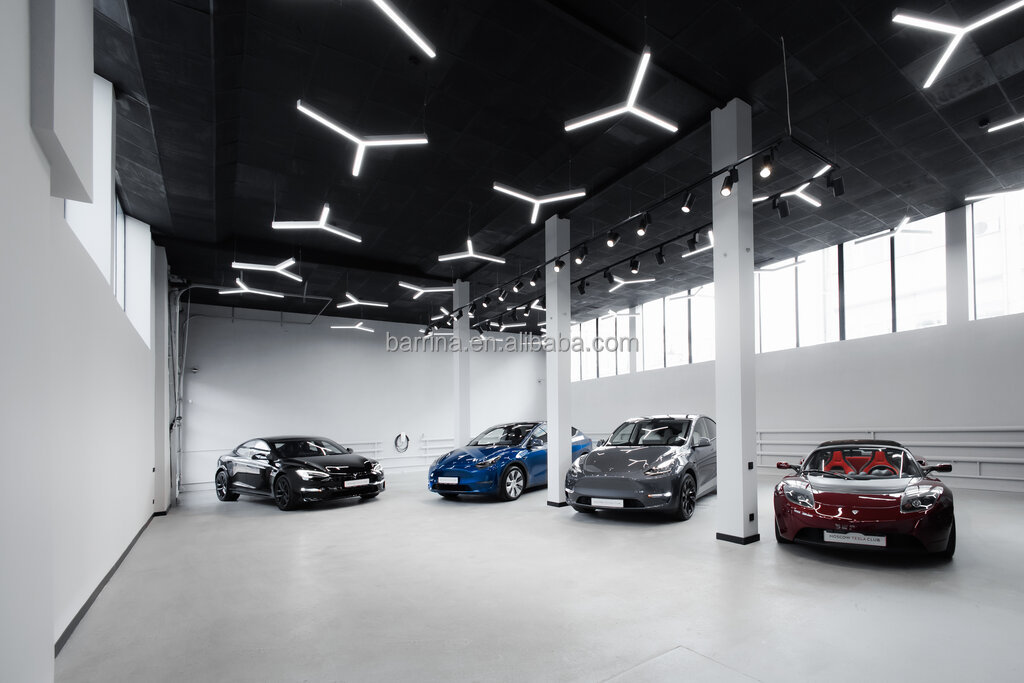

Project Case 4

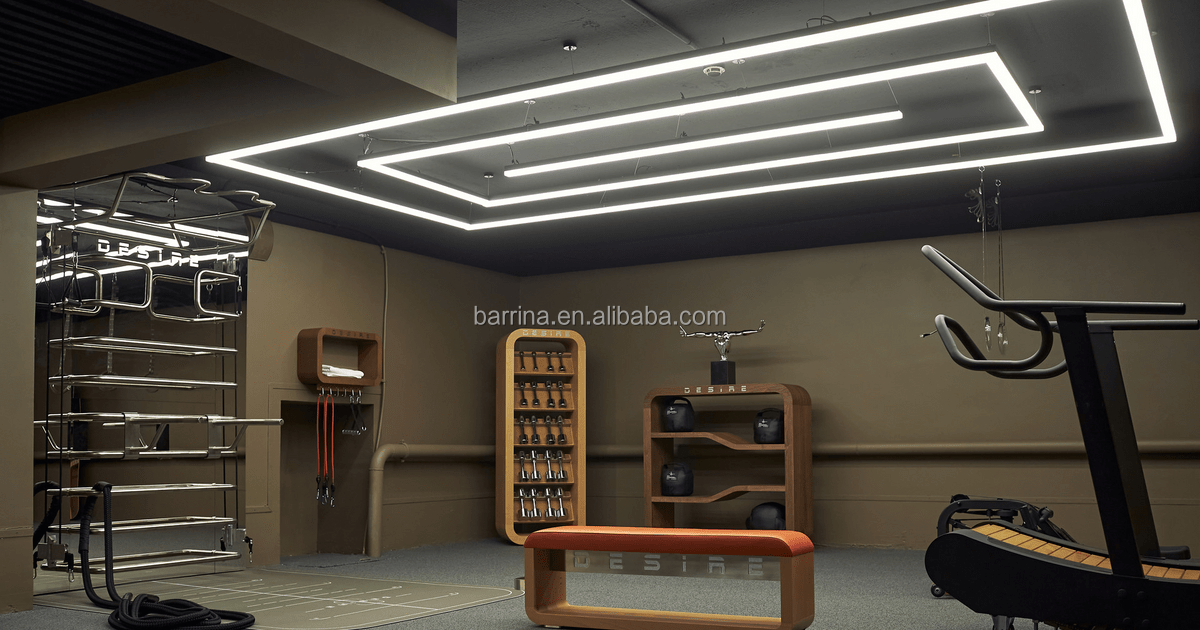

Project Case 5

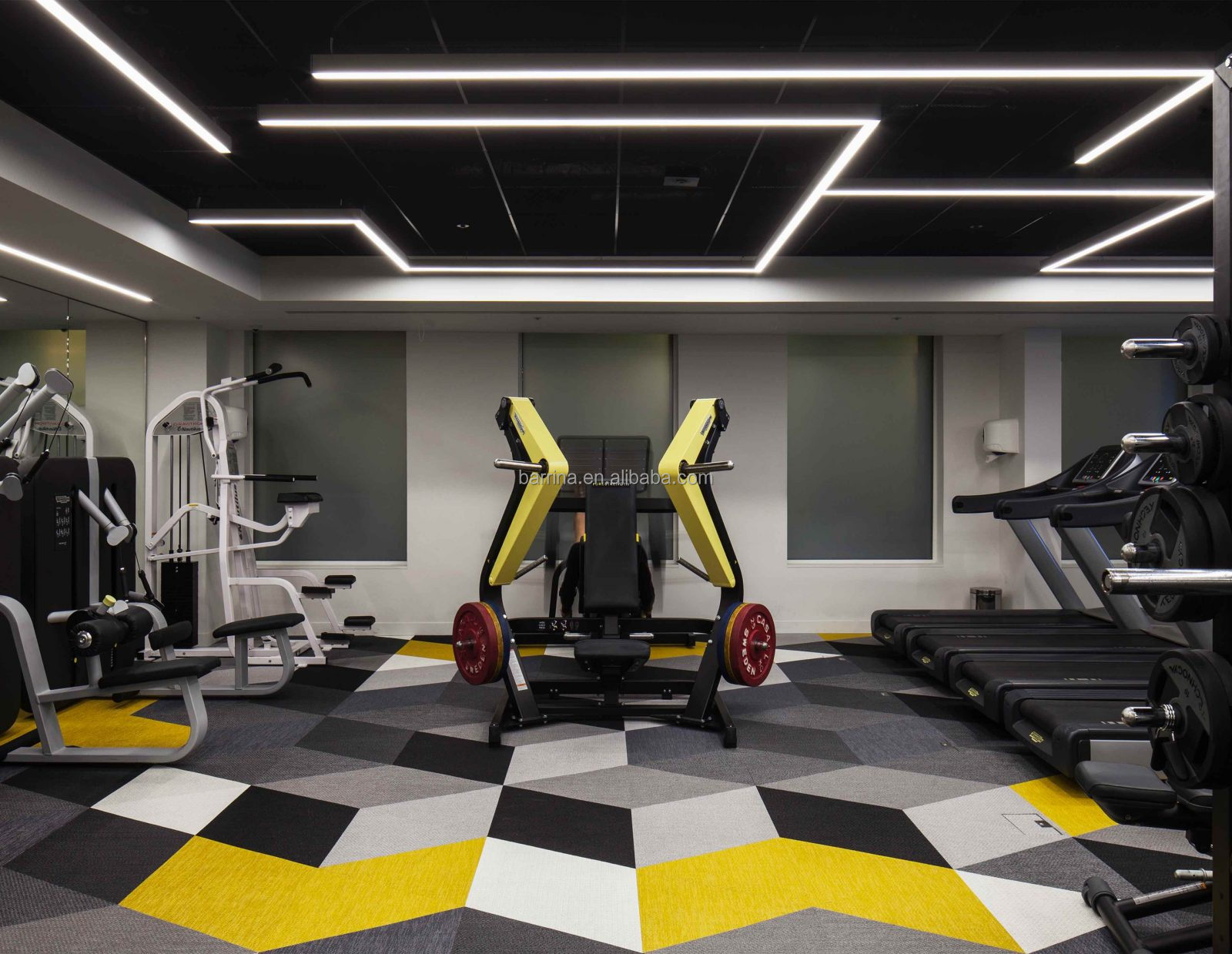

Project Case 6
Why Choose Us
1
Our LED linear lights adopt international invention patents to solve industry pain points faced during production, installation and after-sales in the linear light field.
2
Seamless docking technology makes the lights link easily, changing the status quo that linear lights have to be reprocessed on the building site, and eliminating a series of quality and process hazards caused by installation. You can link up to 15 lights in a series or use them individually.
3
The products are standard and integrated, convenient during production, packaging, shipping, installation and after-sales.
4
The lights feature a constant current and constant voltage intelligent control system, ensuring they have high light efficiency and a long lifespan. It is a great option for schools, commercial offices, hotels, exhibitions, high-speed rail stations, airports, and other high-demand places, bringing you the most comfortable environment at all times.
Customer Photos

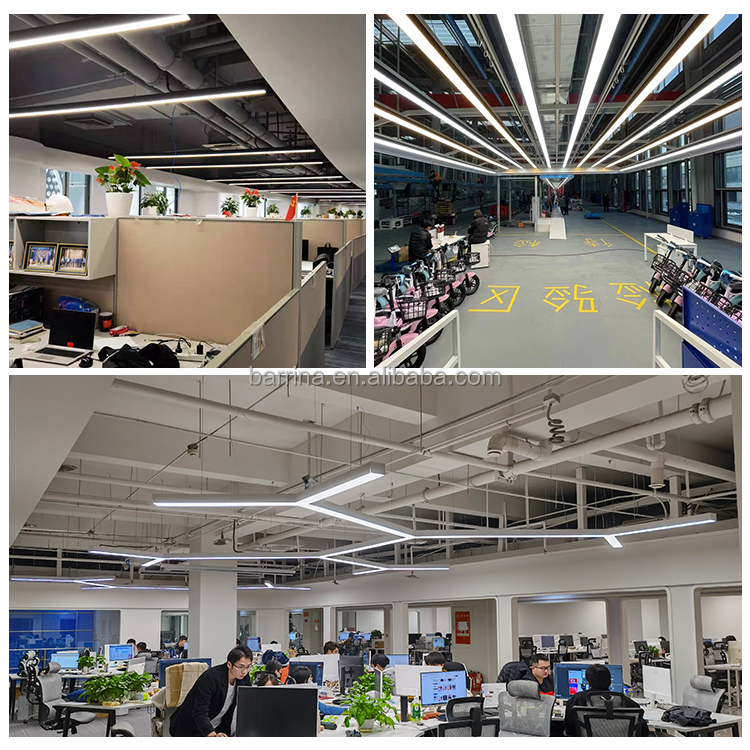

Customer Showcase
Packing & Delivery
Packaging Details
Frequently Asked Questions
Can these LED linear lights be linked together?
Yes, with our seamless docking technology, you can link up to 15 lights in a series or use them individually to suit your custom layout requirements.
What dimming options are supported by these lights?
We support multiple optional dimming configurations including 0-10V dimming, DALI dimming, 2.4G dimming, and CCT dimming.
What safety and quality certifications do the products carry?
Our linear lights are certified by major international testing standards, including CE, ETL, FCC, RoHS, and CCC.
What is the lifespan and warranty period?
They feature a long LEDs lifespan of 50,000 hours, powered by an intelligent constant current/constant voltage system. We offer a choice of 3 years or 5 years warranty.
What application scenarios are these lights suitable for?
They are ideal for high-demand indoor environments such as offices, schools, hotels, commercial retail spaces, exhibition centers, airports, and train stations.
Are there different layout splicing angles available?

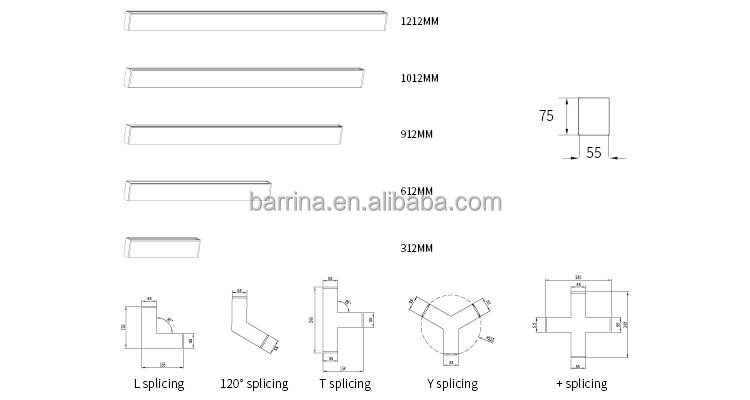

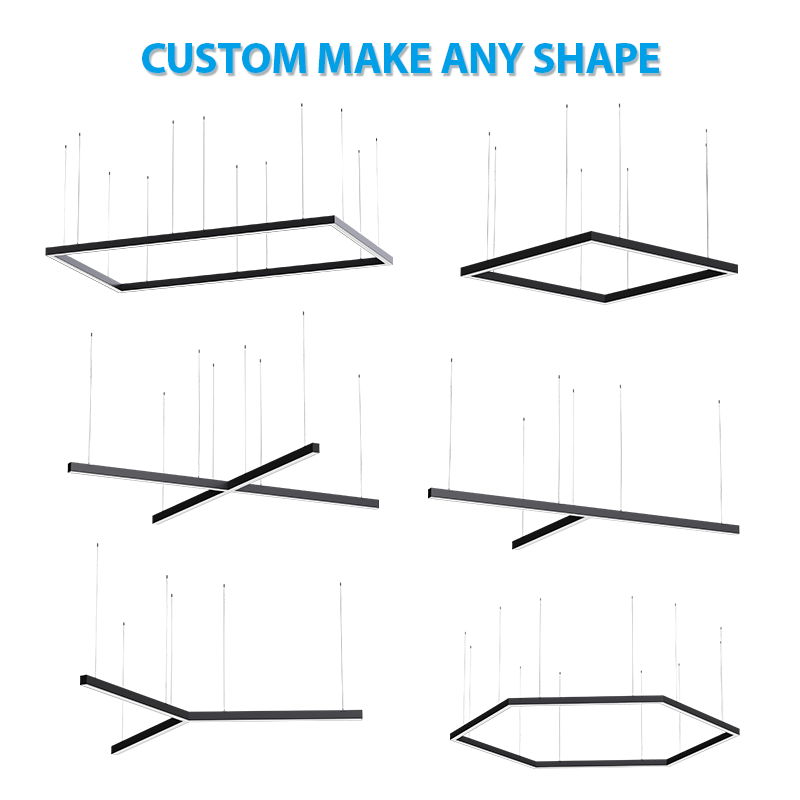

Yes, we provide standard straight lengths from 300mm to 1200mm, as well as multiple modular splicing angles (90°, 120°, T, Y, and cross splicing) to build varied architectural shapes.
