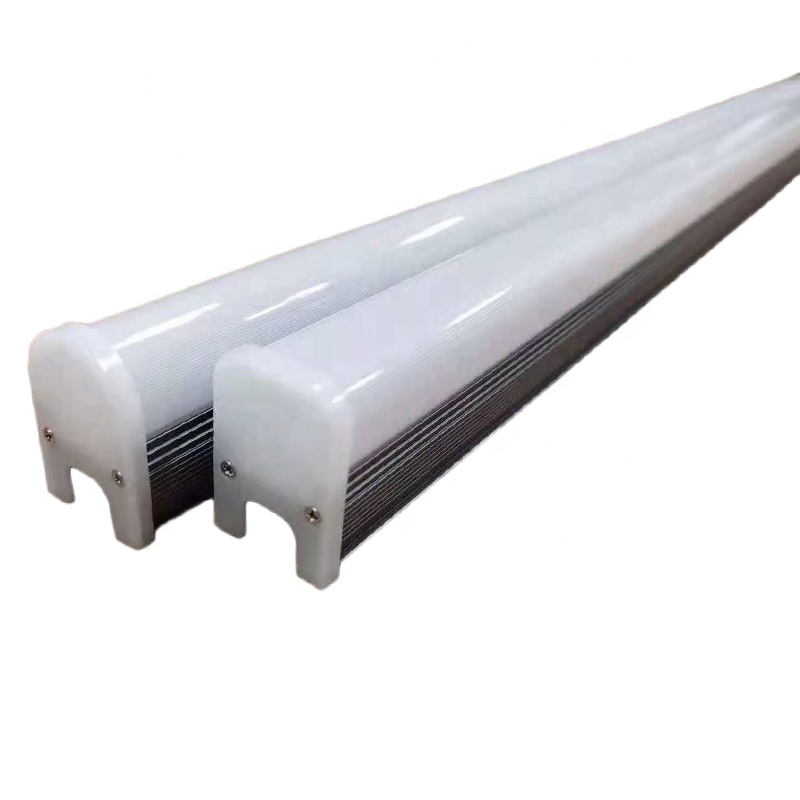

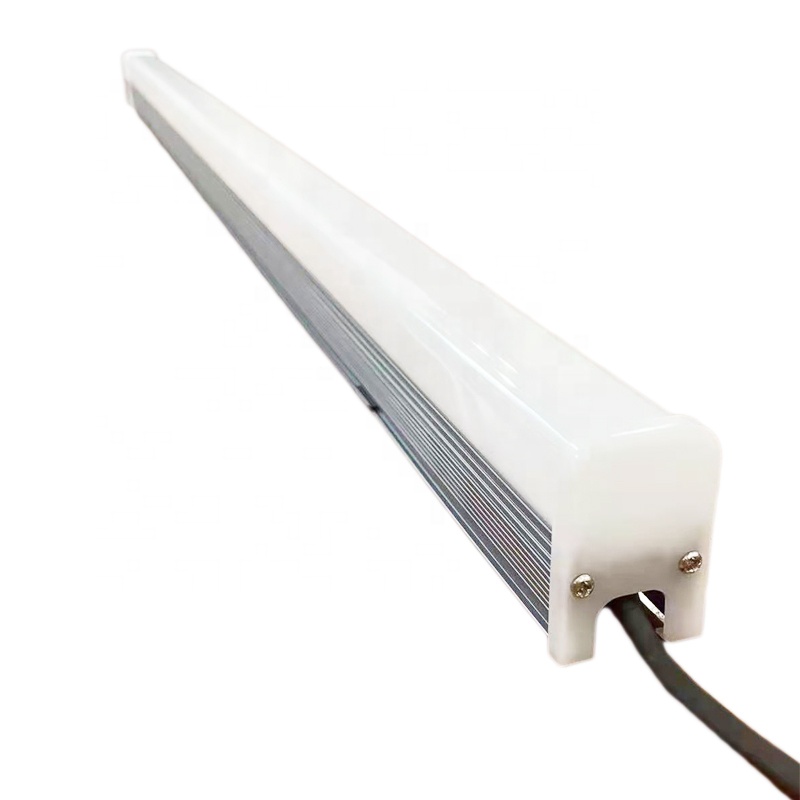

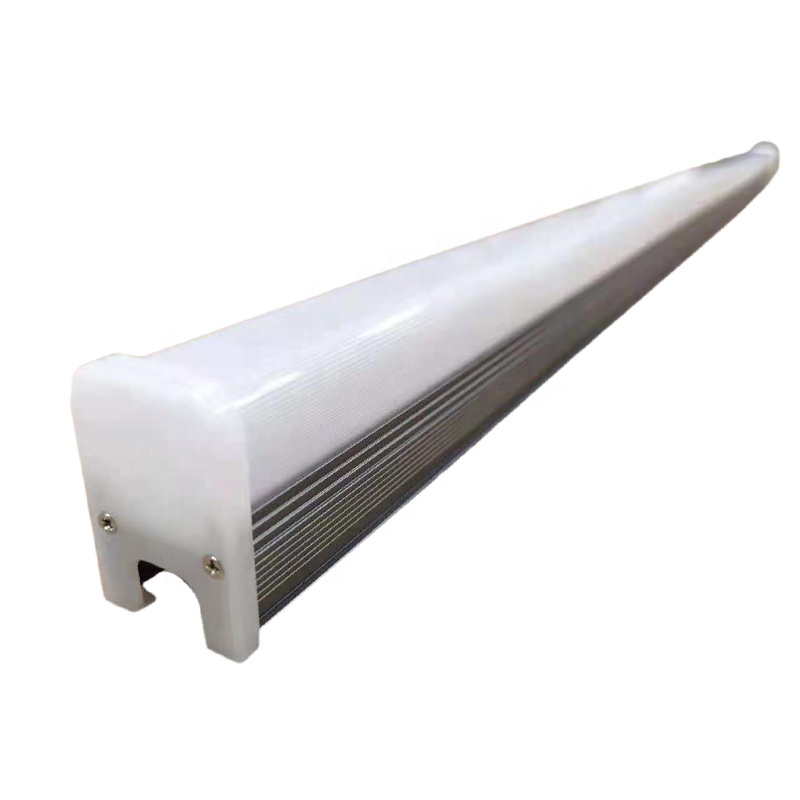

Outdoor IP67 High Lumen Architectural Lighting 12w 15w Single Color / Dmx512 Rgb Led Wall Washer Light for Building

Product Description

Outdoor IP67 High Lumen Architectural Lighting 12w 15w Single Color / Dmx512 Rgb Led Wall Washer Light for Building
Outdoor IP67 High Lumen architectural lighting 12w 15w single color / dmx512 rgb led wall washer light for building
Product Description
Specification about the Wall Washer light:

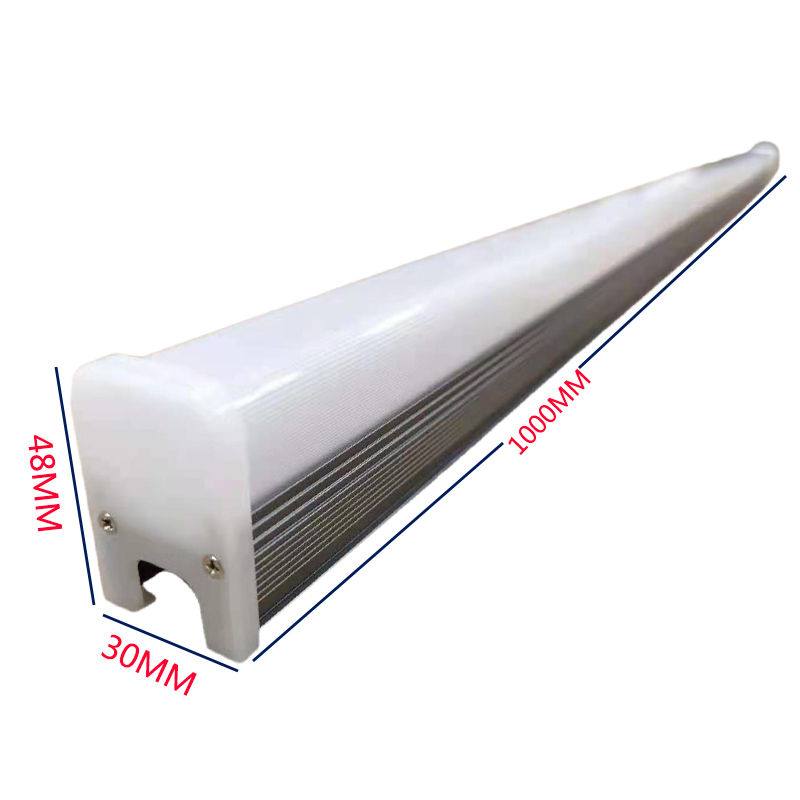

  • Size: L1000*W30*H48mm
  • Voltage: DC24V
  • Power: 12W/15W
  • Color temperature: 2200K-6500K
  • Lamp beads: 2835/5050 model
  • Chip: American Bridgelux/Taiwan Epistar/OSRAM
  • Length: conventional 1 meter, 0.5 meter
  • Material: die-cast aluminum housing, imported PC cover, acrylic lens
  • Waterproof: Fully glued waterproof, IP66
  • Color: white/yellow/warm white/red/ green/blue/ purple/common external control with ucs1903ic /external control with dmx512ic / external control RGBW with dmx512IC
Outdoor IP67 High Lumen Architectural Lighting 12w 15w Single Color / Dmx512 Rgb Led Wall Washer Light for Building
Model Name CP-L3048
IC Chip UCS1903/DMX512/ Single color
Led Chip Epister smd5050/smd2835 led chip
Led Qty 48LEDS
Voltage AC24V / DC24V
Watt 15WATT
cover Transparent / translucent / milky white
Warranty 3 Years
Certification CE ROHS

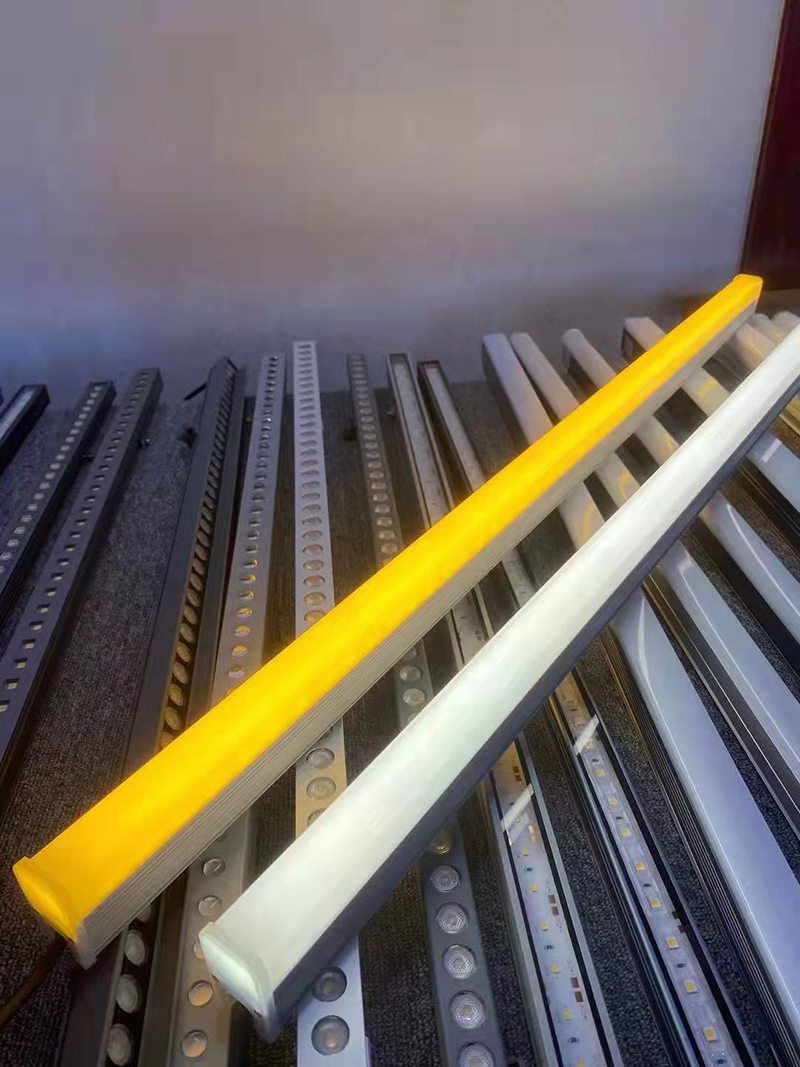

Wall Washer Detail 1

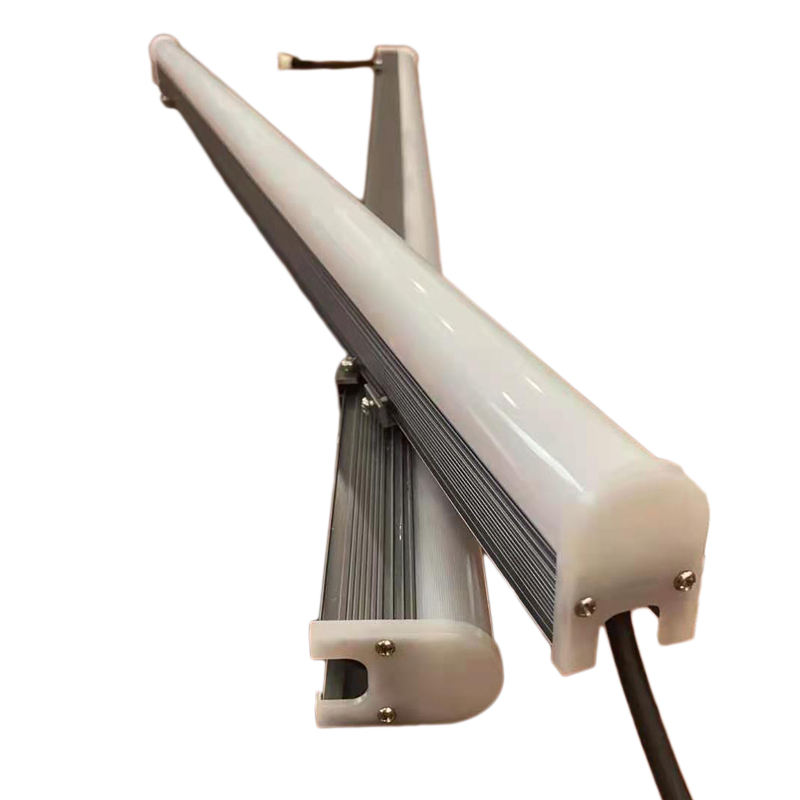

Wall Washer Detail 2

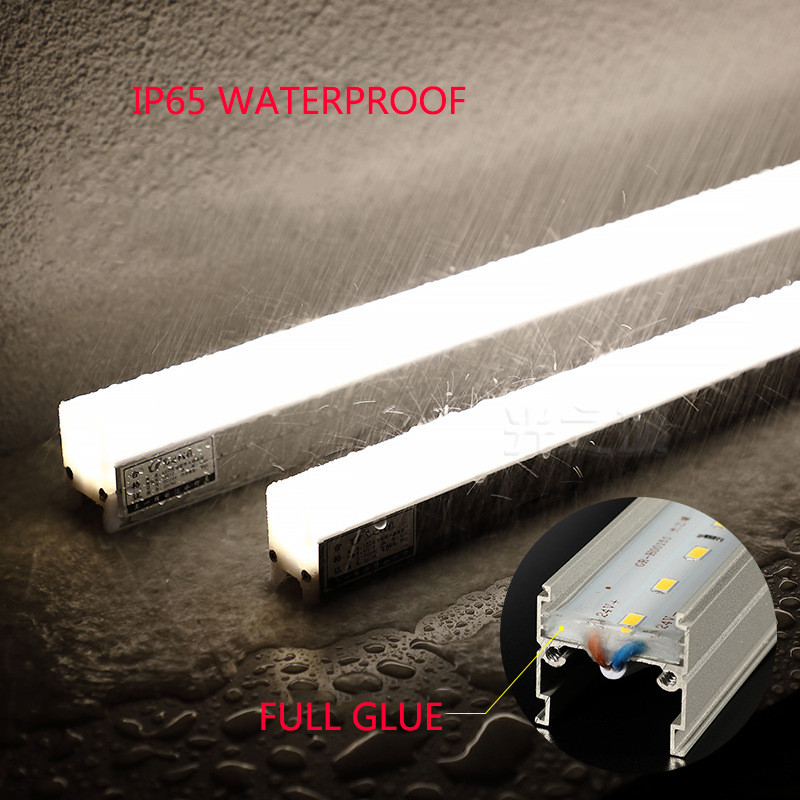

Wall Washer Detail 3

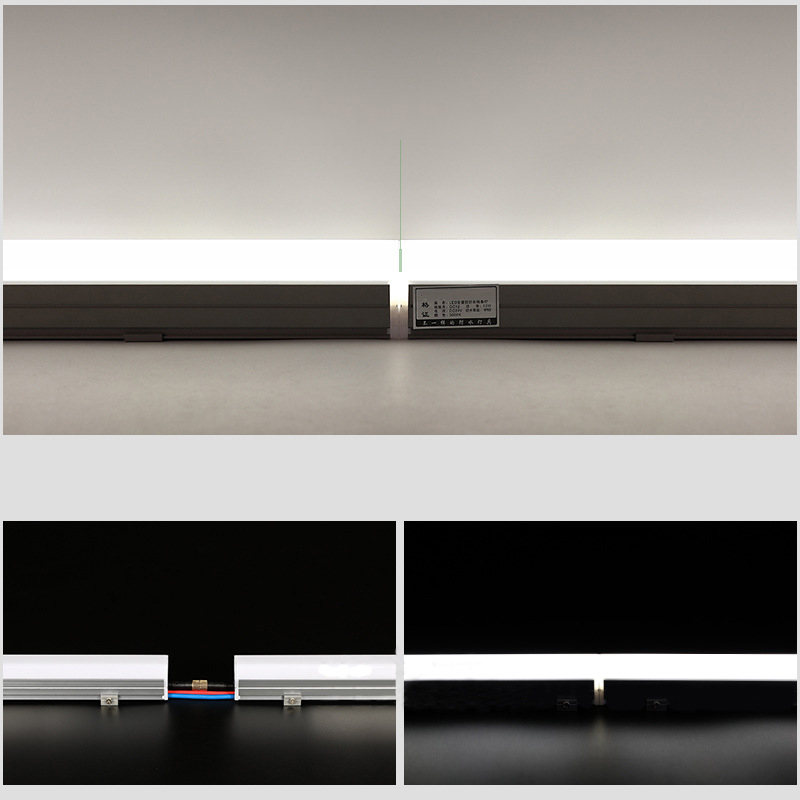

Wall Washer Detail 4

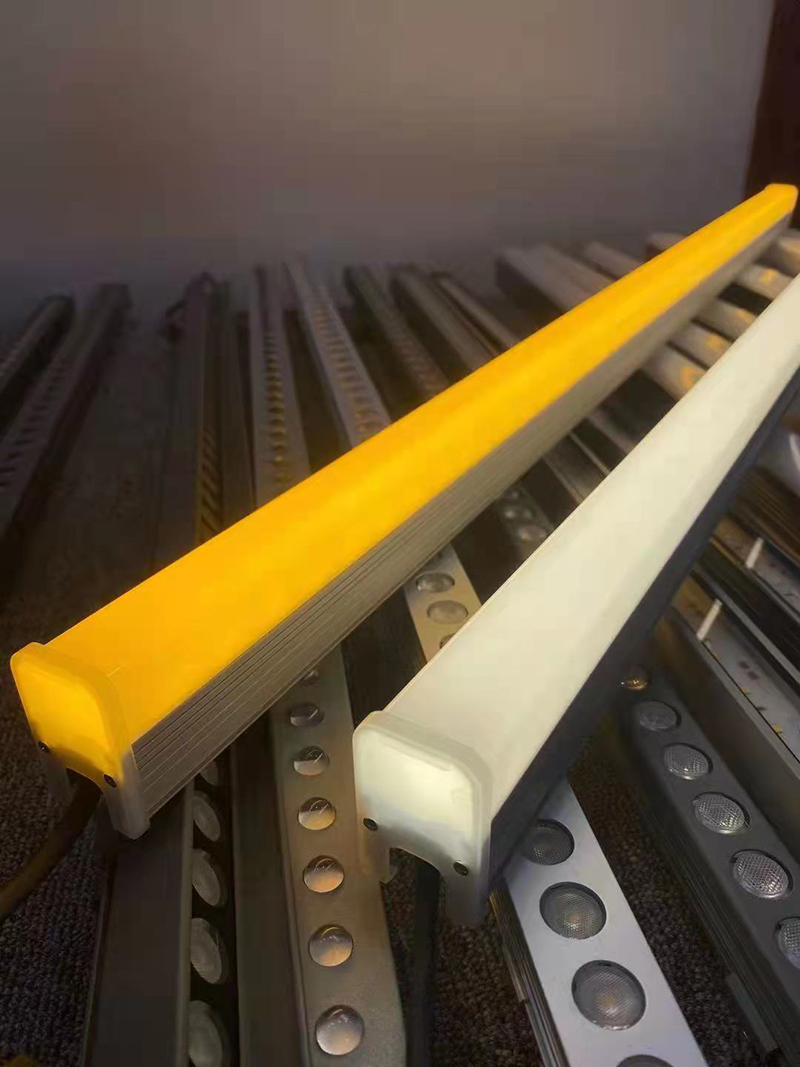

Wall Washer Detail 5

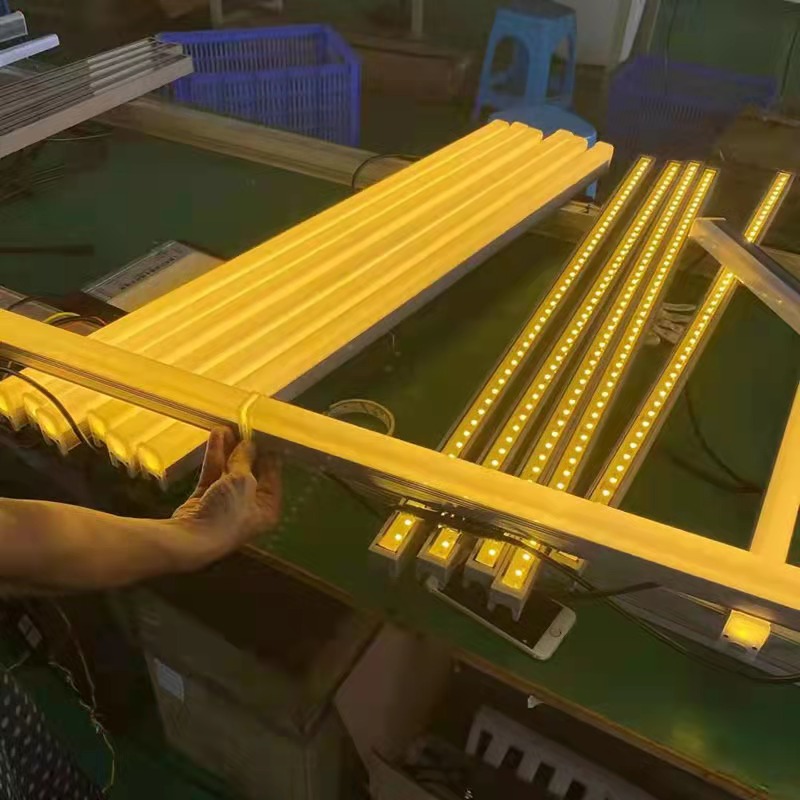

Wall Washer Detail 6
Wall Washer Detail 7
Connect Way & Installation
  1. According to the required installation method, the lamp is placed in the designated position (ensure that there is sufficient distance between the lamps).
  2. According to the positioning of the mounting hole, directly fix to the mounting surface with screws.
  3. Check that the lamp is not loose, then you can connect the power.
  4. When connecting external power cables, waterproof measures must be taken accordingly.
  5. The total power of the connected lamps cannot exceed 80% of the maximum input line load.
  6. The power supply main line diameter should be able to meet the total load maximum current size.
  7. Please find a professional electrician to install the wiring, and wire according to the wiring diagram.

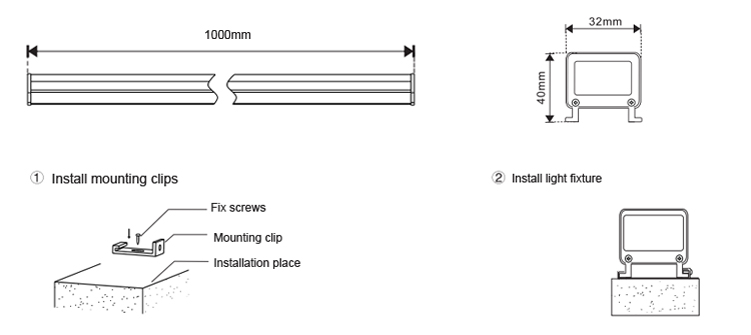

Installation step diagram

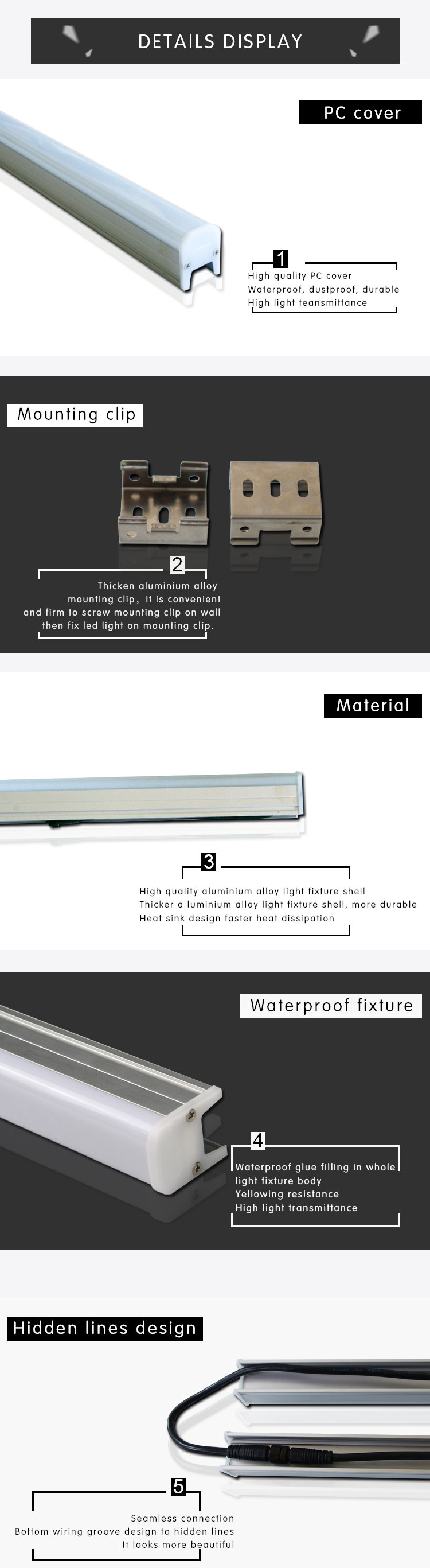

Wiring diagram
Application

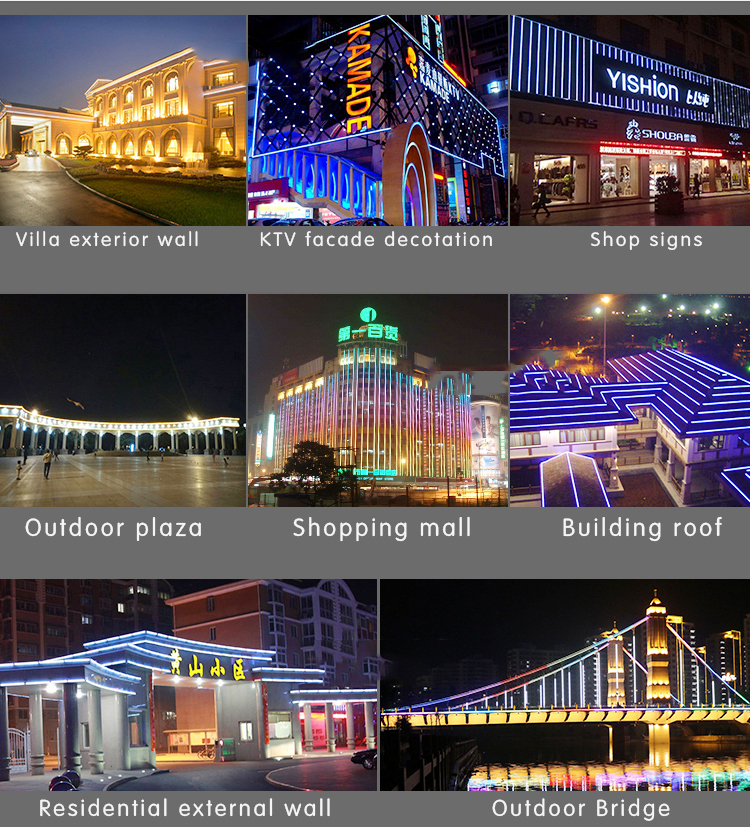

Applicable to the lighting of buildings facades, bridges, gardens, urban landscapes and other places.

Outdoor IP67 High Lumen Architectural Lighting Application
⚠️ Noted:
  • If the lamp fails to work properly, check if the line is connected.
  • Please disconnect the power before installing or disassembling.
  • Please use as normal installation.
  • If any damage is found, please seek professional service.
  • Do not disassemble the product without authorization.
Related Products
Related Products
Why Choose Us
  • It solves the heat-dissipation problem successfully. So our LED lights have an absolute advantage and leading role in the market.
  • Our factory has 1000 kinds of different products. We developed a highly complete series of LED products.
  • Every product is passed with strict tests before delivery. We do not perform random inspections; all components undergo 100% quality testing.
  • If a customer's product has quality problems, our factory promises that we will replace it with a new product for free.
Factory testing and quality control
Frequently Asked Questions
Q1 Can I have a sample order for Wall Washer light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2 What about the Wall Washer light lead time?
Samples of Wall Washer light need 3-5 days, while mass production time requires 1-2 weeks for order quantities exceeding 1000 meters.
Q3 Do you have any MOQ limit for Wall Washer light?
We support a low MOQ; a 50 pieces sample order for checking is available.
Q4 How to proceed with an order for Wall Washer light?
Firstly, let us know your requirements or application. Secondly, we quote based on your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange the production.
Q5 Do you offer a guarantee for the Wall Washer light?
Yes, we offer a 3-year warranty for our products.
Q6 How do you deal with faulty Wall Washer lights?
Firstly, our products are produced in a strict quality control system and the defective rate is kept below 0.2%. Secondly, during the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them, or negotiate a viable solution.
