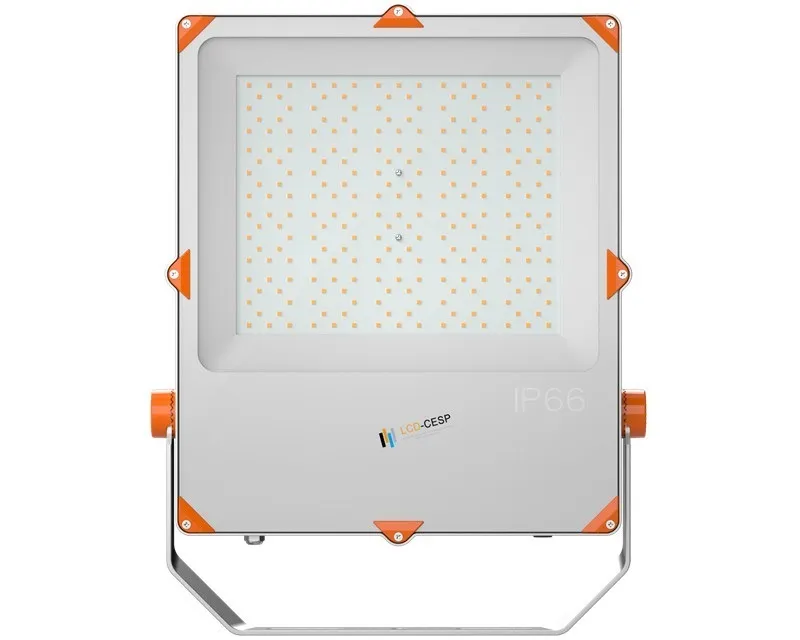

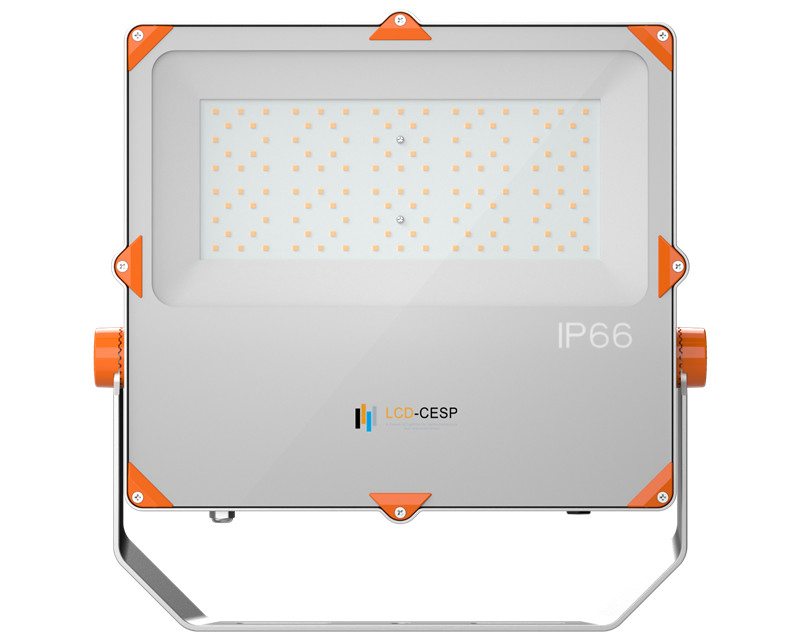

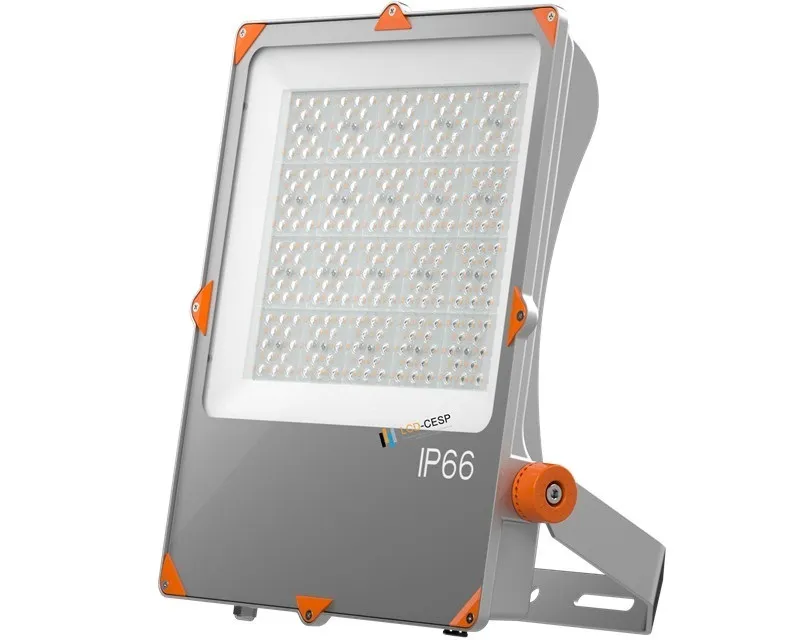

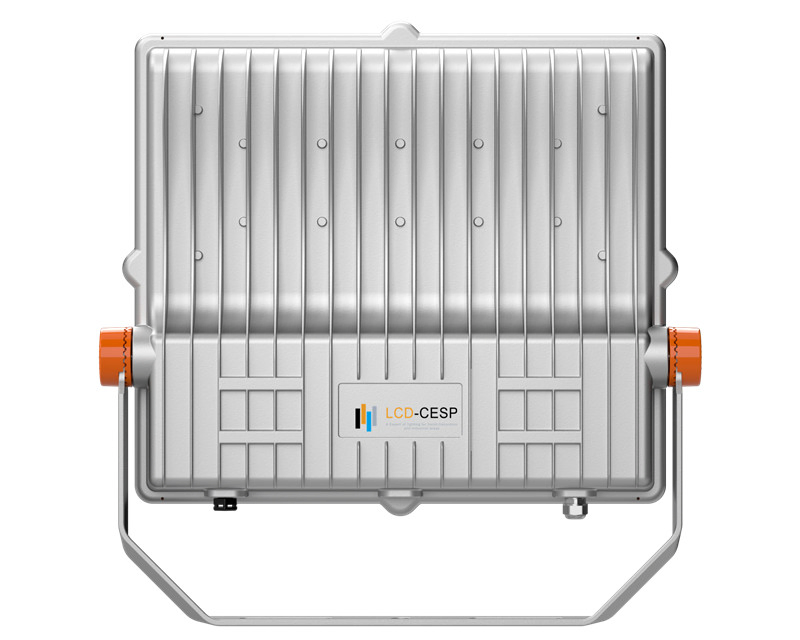

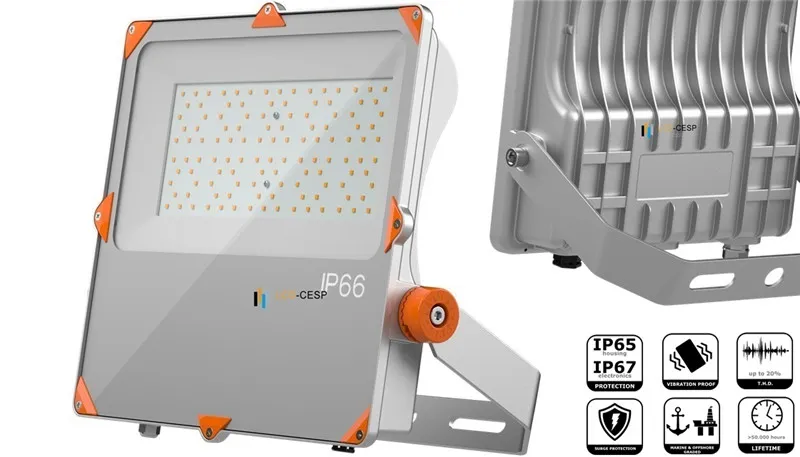

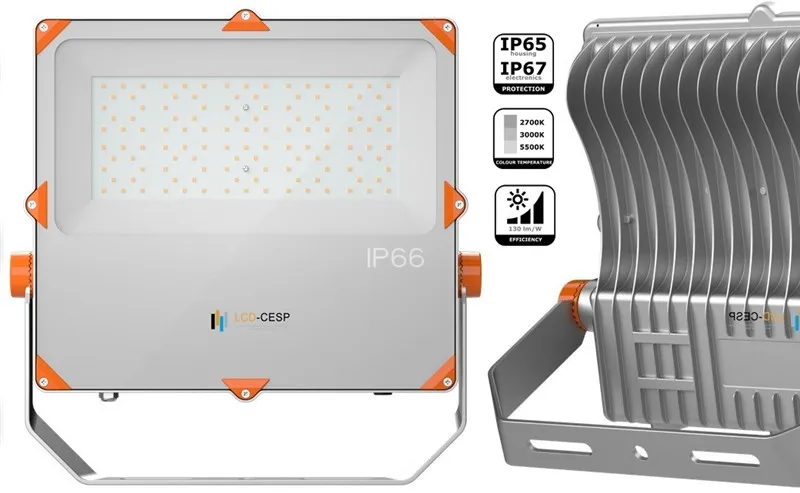

Outdoor Aluminum Dimmable 200 Watt LED Flood Light
Dimmable led fixture 200W 90-277VAC 50/60Hz Triac dimmable 2700K to 6000K IP65 1,400 to 28,000lm IK07
The energy-saving FS LED Floodlight is the perfect solution for a wide range of Area & site lighting applications. It teams with the dimmable driver, motion & Infrared sensor system, known for perfect thermal management heat sink housing and premium dimmable driver into one compact, robust, and durable die-cast Aluminum alloy body that matches up globally high quality and safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability and a long lifespan. Powered by new and modern LED technology, this luminance delivers superior performance and a longer lifetime, bringing area & site lighting to a whole new level.
| Lamp family code | FS-xxxx-LNxxx |
| Light source color | warm white, Neutral white, cool white |
| Light source replaceable | yes |
| Driver/power unit/transformer | dimmable driver / Meanwell driver / certified brand driver |
| Driver included | yes |
| Optical cover/lens type | reflector or Polycarbonate micro lens optic |
| Luminaire light beam spread | 110° or 60ºx60º, 90ºx90º,30ºx30º,TYPE 3/4/5 |
| Connection | Flying leads/wires |
| Cable | Cable 1.5 m without plug |
| Protection class IEC | Safety class I |
| CE mark | yes |
| Warranty period | 5 years warranty |
| Optic type outdoor | Symmetrical wide beam or Asymmetric beam |
| EU RoHS compliant | No |
| Light source engine type | LUXEON SMD 3030 |
| Input Voltage | 220-240 VAC or 110-277VAC |
| Input Frequency | 50 / 60 Hz |
| Power Factor (Min) | >0.97 |
| Controls and Dimming | DALI,1-10V , Triac , motion sensor or Infrared induction |
| Housing Material | Aluminum alloy die-cast |
| Reflector material | Pure polish aluminum reflector |
| Optic material | Polycarbonate |
| Optical cover/lens material | tempered glass |
| Fixation material | Carbon steel with corrosion proof powder coating |

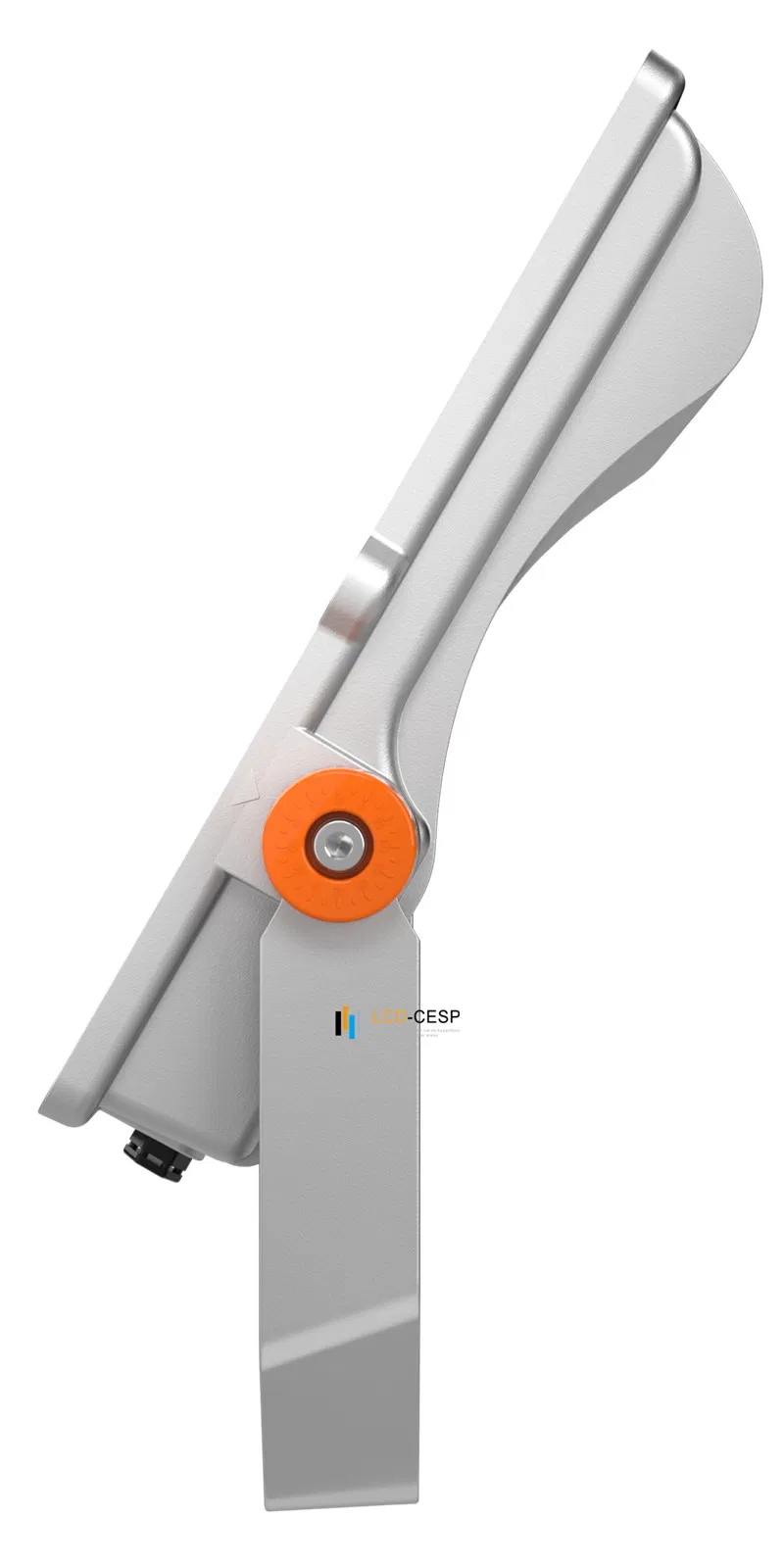

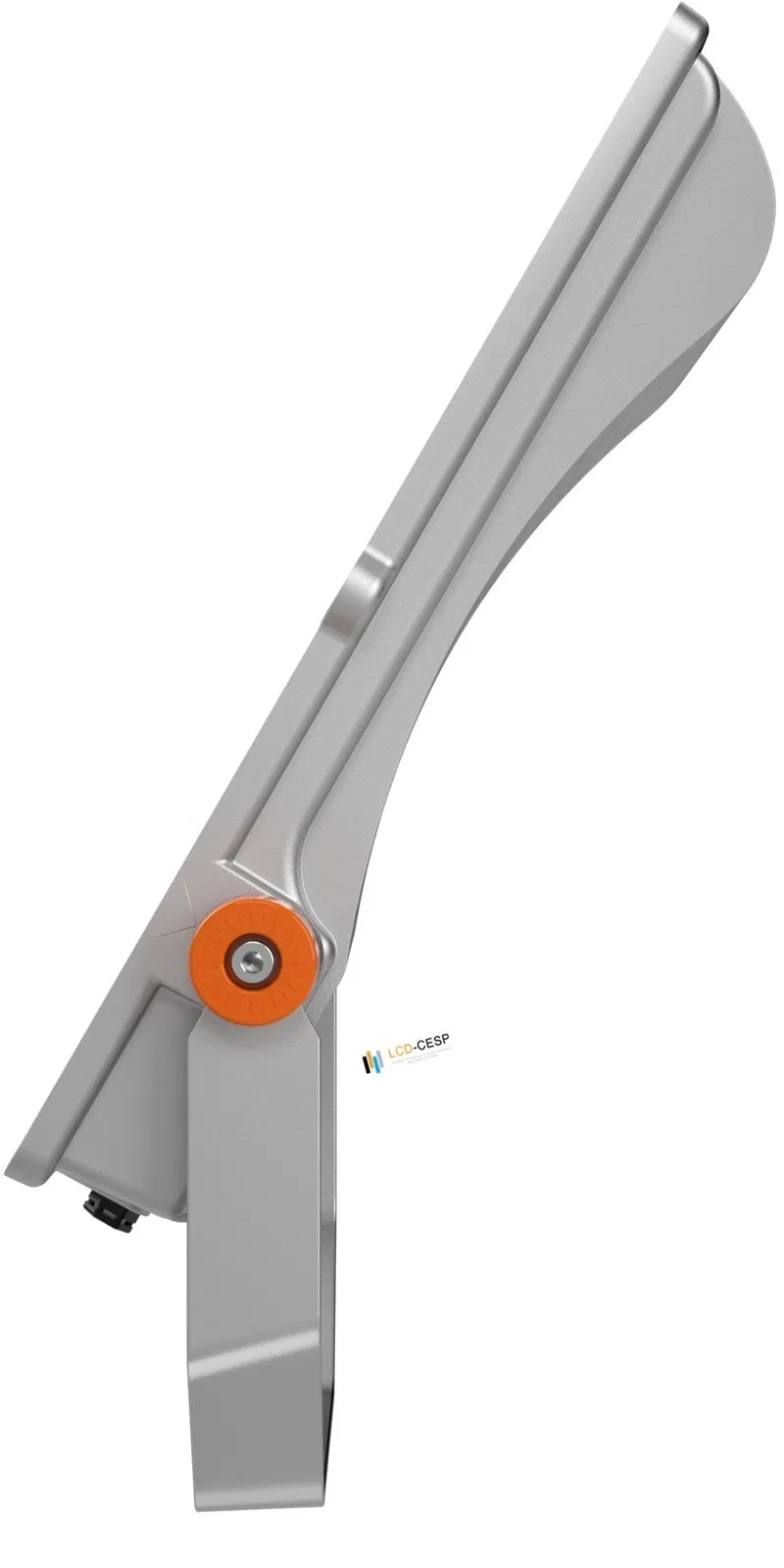

| Mounting device | Mounting bracket adjustable |
| Optical cover/lens shape | ----- |
| Optical cover/lens finish | transparent or Frosted tempered glass |

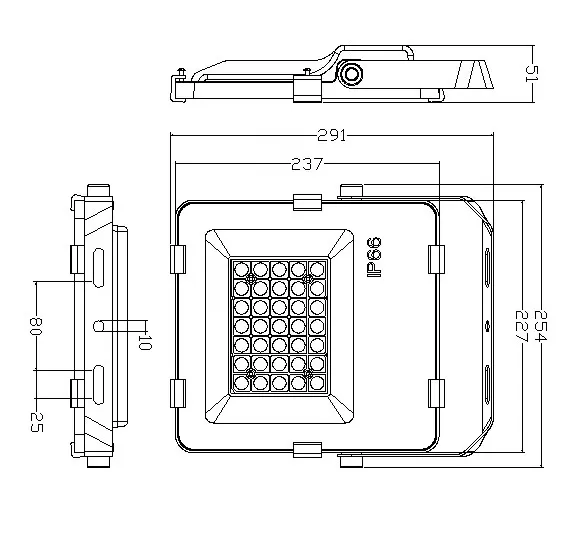

| Overall length | see dimensional drawing |
| Overall width | see dimensional drawing |
| Overall height | see dimensional drawing |
| Effective projected area | 0.076m² |
| Color | Aluminum and black |
| Ingress protection code | IP65 [ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK07 [ >4 J vandal-protected] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 3 kV |
| Initial luminous flux (system flux) | >28000 lm |
| Luminous flux tolerance | +/-10% |
| Initial LED luminaire efficacy | >140 lm/W |
| Init. Corr. Color Temperature | 3000K / 4000K / 6500K |
| Init. Color Rendering Index | 75 |
| Initial chromaticity | SDCM<=5 |
| Initial input power | 200 W |
| Power consumption tolerance | +/-10% |
| Ambient temperature range | -30 to +50 °C |
| Maximum dim level | on requests |
| Full product code | FS-203-LNXX-4K |
| Order product name | FS-Flood light 200W |
| Order code | N |
| Numerator - Quantity Per Pack | 1 pcs |
| Numerator - Packs per outer box | 1 box |
| Material Nr. (12NC) | N |
| Net Weight (Piece) | 5.5KG |
Copper free outdoor Aluminum housing perfect thermal management PLC dimmer for Meanwell driver 0-10V water-proof IP66
50 Watt LED Flood Light 110-277VAC 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 7500lm IK08
High way road or area lighting with Cree / bridgelux / OSRAM SMD3030 or SMD5050 LED chip for playground Light or working site light
High tech Aluminum extruded LED spotlight 50W for outdoor Security lighting with 5-7 years warranty

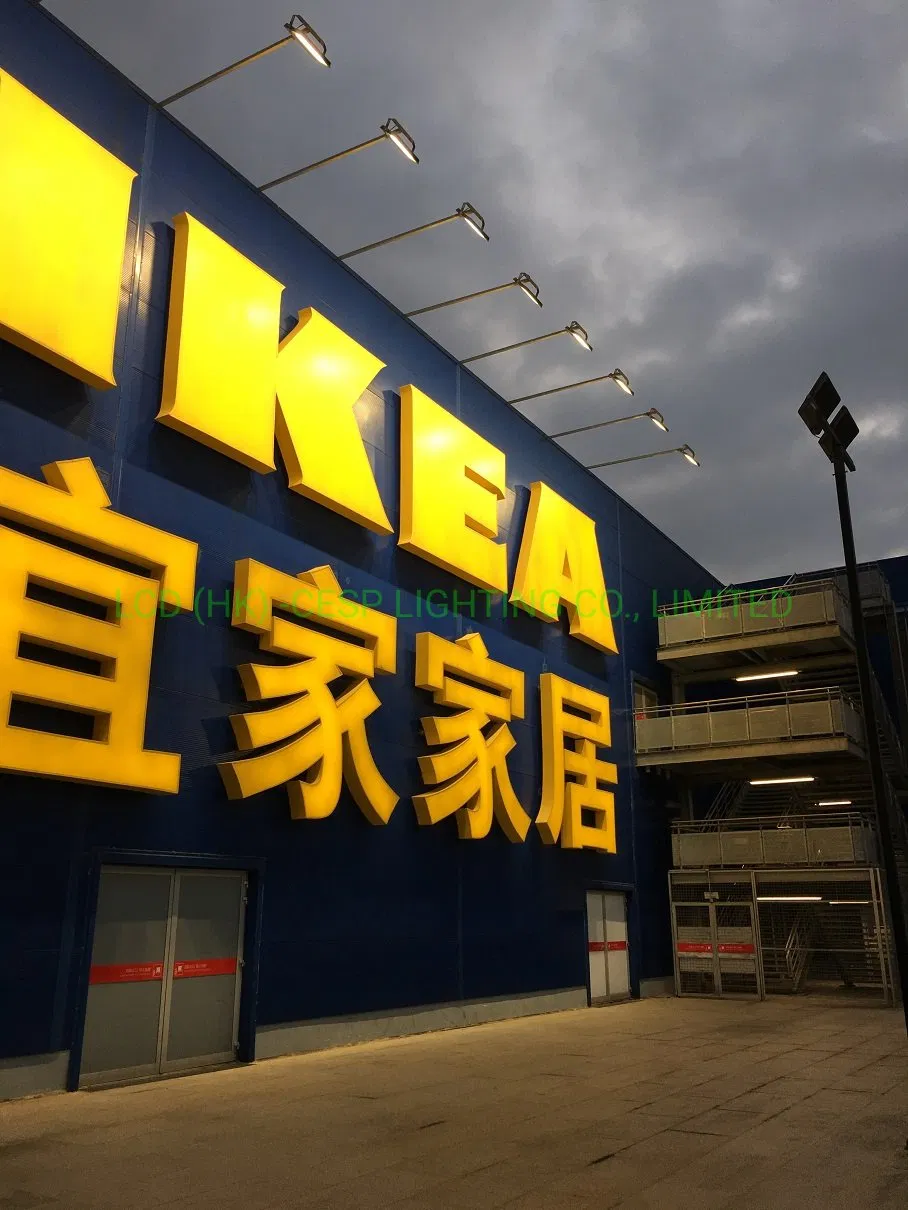

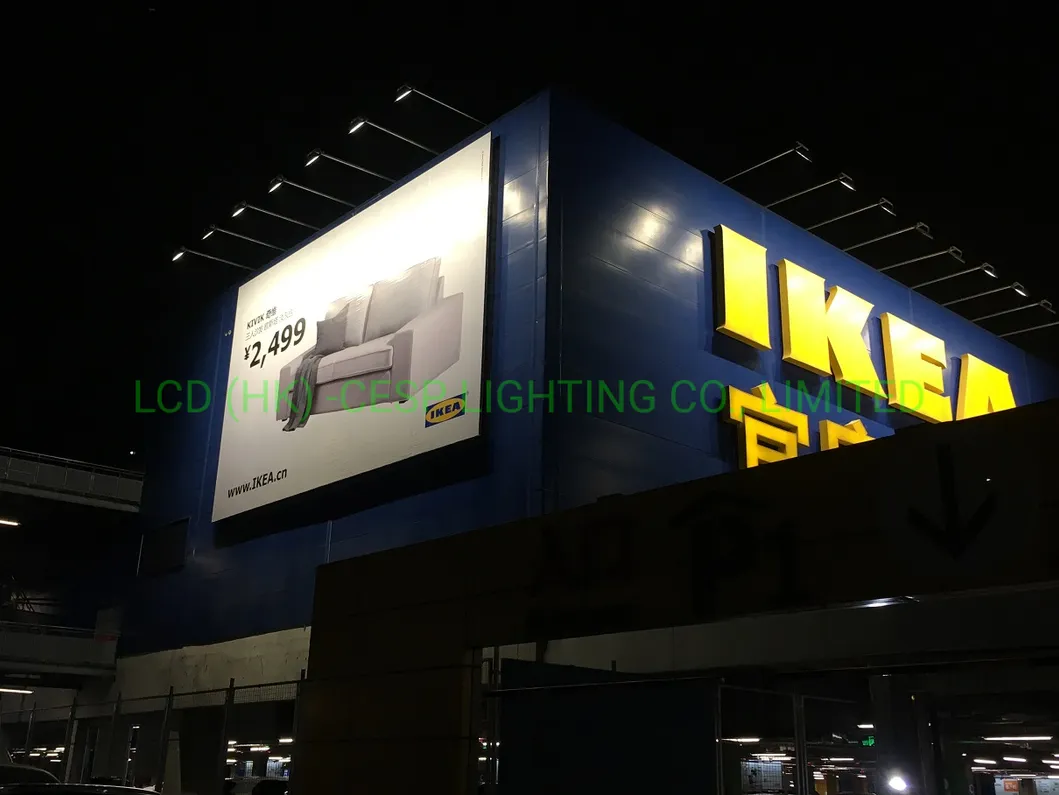

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high aesthetic value to buildings, monuments, etc. Available with two suspension systems: with bracket or arm on requests.
A simple, durable, reliable, great thermal management and efficient LED floodlight.
| Consumption | Assembling height |
| 10W 20W 30W 50W 70W 100W 120W 150W 200W | 4-15 meter |
| Voltage | Frequency |
| 100-277 V AC or 12V 24V 32V | 50/60 Hz |
| Protection level | Optic |
| IP66 / IK08 | Efficiency: 90% / 135-150lm/w |
| UHF | Life span |
| <1% | L70 -> 60,000h |
Three mounting options to cover all low area lighting applications:
Led outdoor flood light bulbs 50W DC12V 7250 lm IP66 Aluminum extruded.
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants, etc. The use of LED technique offers optimal light output with low power and durability as well.
| Material | Aluminium die cast ADC12 housing + 4mm tempered glass face |
| Efficacy | up to 150 lumen/watt |
| LEDs chip | LED SMD3030 or SMD5050 |
| SDCM | <5 |
| Optic beam | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5, Asymmetric 40 |
| Ingress protection | IP66 |
| Mech. impact protection code | IK08 Impact rating |
| Mounting | "U" bracket / slipfitter |
SUITABLE FOR: The FLY Series is a professional, powerful, energy-saving replacement for high intensity discharge lamps. Featuring a compact and modern design, Cree or OSRAM (3030) SMD LED chips, and a high lumen maintenance factor with Meanwell or CE/TUV-certified drivers, this fixture delivers an outstanding combination of high performance and brightness.
The strong housing is made of black extruded aluminum, providing high heat dissipation, superior aesthetics, and a longer lifetime. The tempered anti-shock thermal glass features a transmission rate up to 93% with an anti-impact rating of IK08. An overall IP66 grade ensures it is fully waterproof. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings, and parking areas.
Led marine flood lights 150 watt optic beam 30 degree 100-277VAC 24750lm IP67
| Optics Information | Mounting Options |
|---|---|
|
|
Available Photometric Distributions:
|
Initial Chromaticity Coordinate Values:
|
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC): EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 62493
• Control protocol(s): 1-10V, DALI
CE, Directive 2014/30/EU, 2014/35/EU, 2009/125/EC, 1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |
SUITABLE FOR: The FA series is a waterproof LED flood light designed to resist moisture, dirt, dust, corrosion, and vibration. It is ideal for high-humidity, outdoor, and heavy industrial environments such as Paper mills, Wastewater Treatment Plants, Shipyards, Loading Docks, and Chemical/Petrochemical Processing Facilities. They offer higher efficacy for increased energy savings, lower maintenance costs, and shorter paybacks compared to HPS/MH systems.
What dimming protocols do these LED flood lights support?
These LED flood lights support multiple advanced dimming controls, including DALI, 1-10V, Triac dimming, as well as automatic motion sensors and Infrared induction options.
How is the thermal management system designed to extend product life?

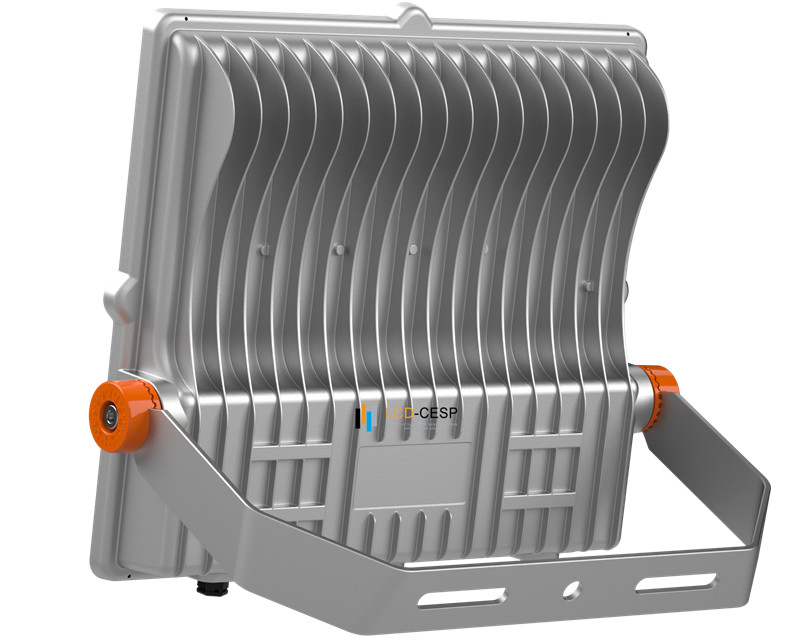

The flood lights utilize an extruded anodized 6063-T5 aluminum heat sink with a thermal conductivity of 230W/(m.k), which is 2.5 times faster than popular aluminum alloys. This passive vertical convection system rapidly spreads heat away from the LED engine without relying on moving parts.
Are these LED fixtures suitable for harsh marine or coastal environments?
Yes. The fixtures are constructed using a low-copper die-cast aluminum alloy (A360) and finished with a double-layer polyester epoxy powder marine coating. Coupled with stainless steel #316 external fasteners and high-temperature silicone gaskets, they resist corrosion and salt spray fog effectively under IP66/IP67 ratings.
Can these flood lights run on low-voltage DC power systems?
Yes, standard models support universal AC voltages (100-277VAC or 347-480VAC). However, low-voltage DC options (12V, 24V, and 32VDC) are available upon special request to accommodate battery, solar, or marine power systems.
What mounting options are available for installation?
The lights feature adjustable "U" brackets and slipfitters, supporting three main mounting configurations: wall/ceiling mount (area & site), surface mount (facade), or mast & post mount (road & car parking).
What are the safety and impact ratings of these lights?
Our heavy-duty flood lights feature high mechanical impact ratings of up to IK08 and IK10. They are protected against high-intensity shocks with tempered thermal-resistant glass cover designs, making them highly reliable in hazardous industrial settings.
