Motor Parts Evaporation Vacuum Metallizing System

Customization:	Available
Type:	Evaporate Coating Machine
Coating:	Vacuum Coating

Send Inquiry

Product Description

Basic Info.

Model NO.

CCZK-EL

Substrate

Plastic, Resin, Glass Ect

Certification

CE, ISO, Ukas

Condition

New

Machine Type

PVD Evaporation Vacuum Coating Machine

Chamber Size

Can Be Customized According to Details Requirement

Application

Car Lamps, Buttons, Cosmetic Caps, Christmas Ball

Coating Materials

Aluminium Wire, Cooper Wire, Chrome Wire, etc

Coating Color

Silver / Cooper / Rainbow Color, etc

Coating Substrate

Glass, ABS, PVC, Resin, Metal

Structure

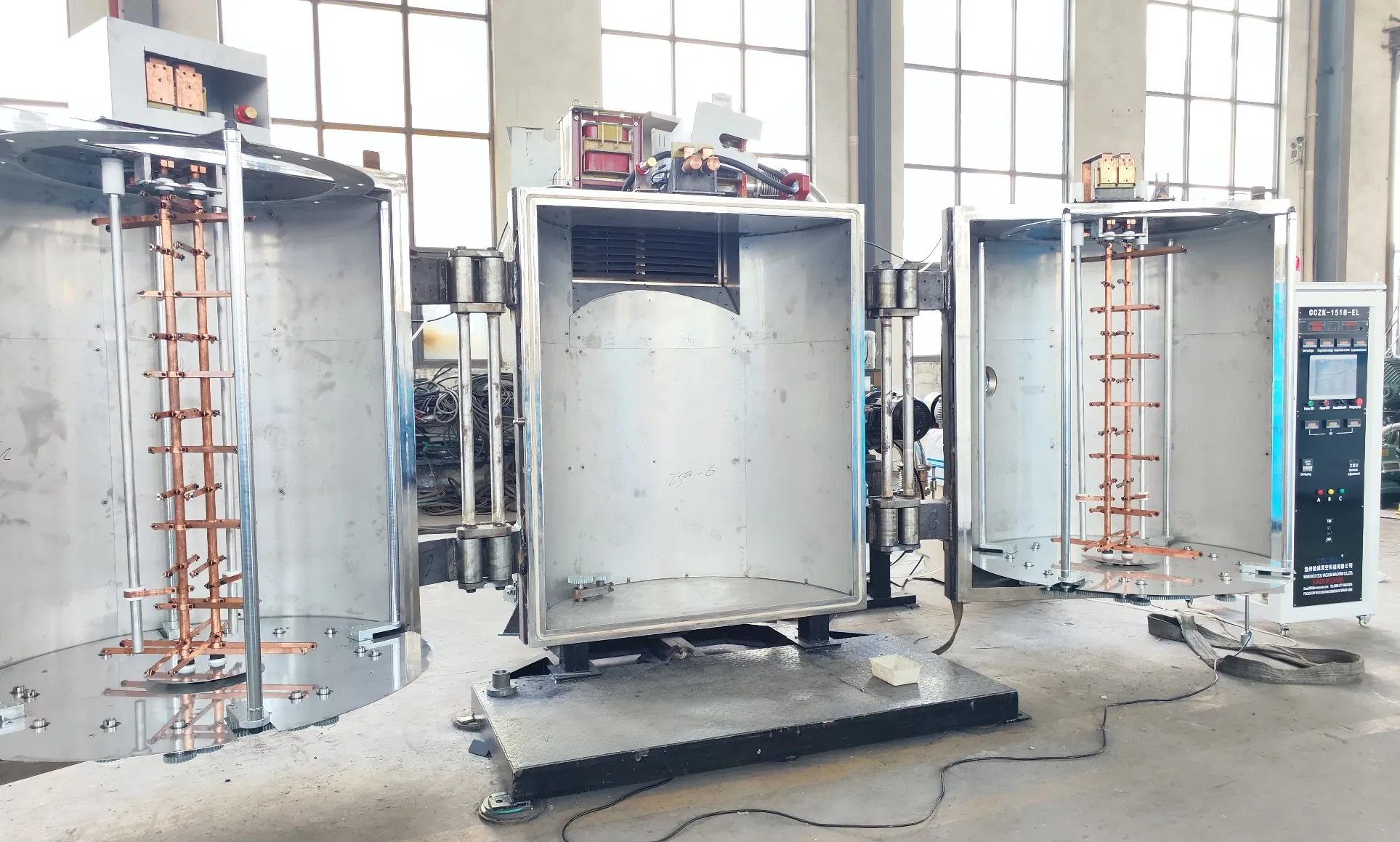

Vertical Double Door or Horizontal Single Door

Voltage

380 V or as Request

Package

Wooden Package or as Request

After Sales

Free Training & Overseas After Sales Available

Transport Package

Wooden Box Plastic Film Cover High Cube Export S

HS Code

8543300090

Production Capacity

100 Set/Sets Per Year

Product Description

Important System Note

Plastic vacuum coating requires the use of the CCZK-UVA series UV spraying and curing production line (CCZK-UVA painting production line).

Product Parameters

Configuration Model	CCZK-1000EL	CCZK-1200EL	CCZK-1400EL	CCZK-1800EL	CCZK-2200EL
Chamber size (MM)	D1000*H1200	D1200*H1500	D1400*H1800	D1800*H2000	D2200*H2400
Vacuum system	Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump (optional)
Evaporation power	15KW	20KW	30KW	40KW	50KW
Evaporation source	20sets	26sets	36sets	52sets	68sets
Ion glow cleaning system	5KW	5KW	10KW	15KW	20KW
Control system	PLC+HMI Full automatic + Remote control system (optional)
Ultimate vacuum	5.0*10-4pa	5.0*10-4pa	5.0*10-4pa	5.0*10-4pa	5.0*10-4pa
Total power	30.6KW	37.5KW	58.5KW	96KW	125KW
Coating Cycle time	6 to 10mins one cycle (Depending on the coating film layer of different coating products)
Delivery container size	1set 20GP	1set 20GP	1set 40GP	1set 40HQ	1set 40HQ
Customized size	Available / Customized

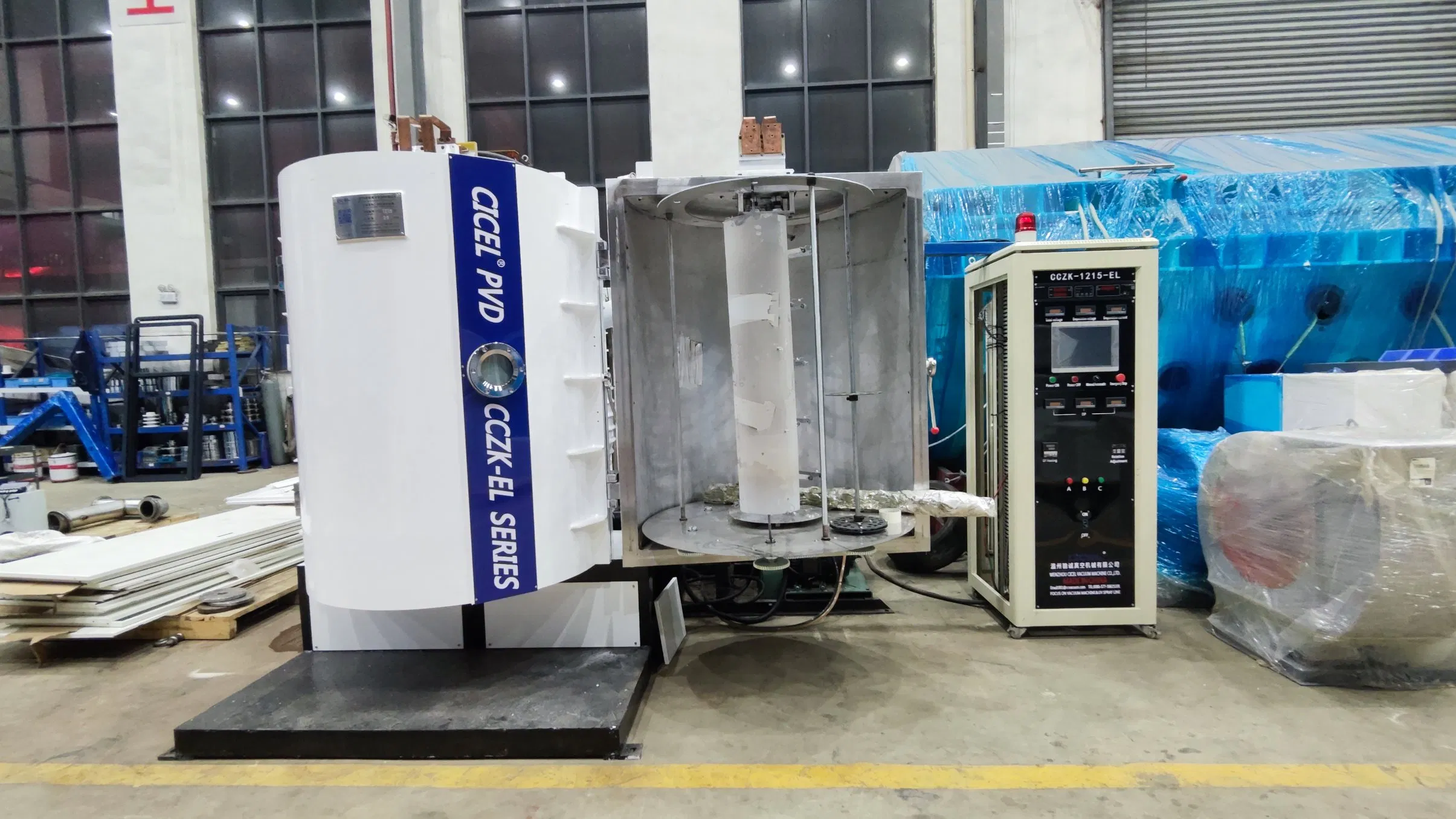

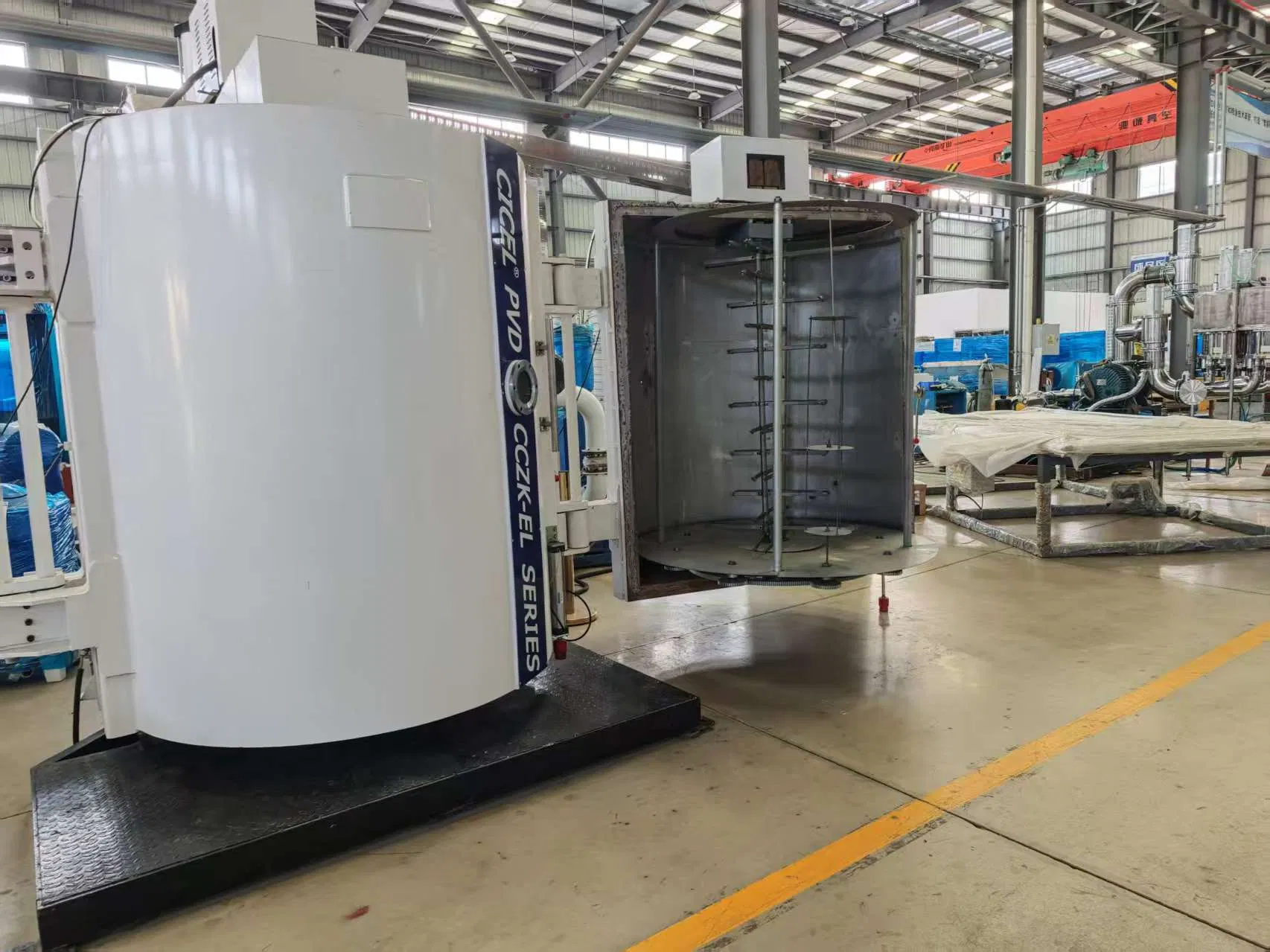

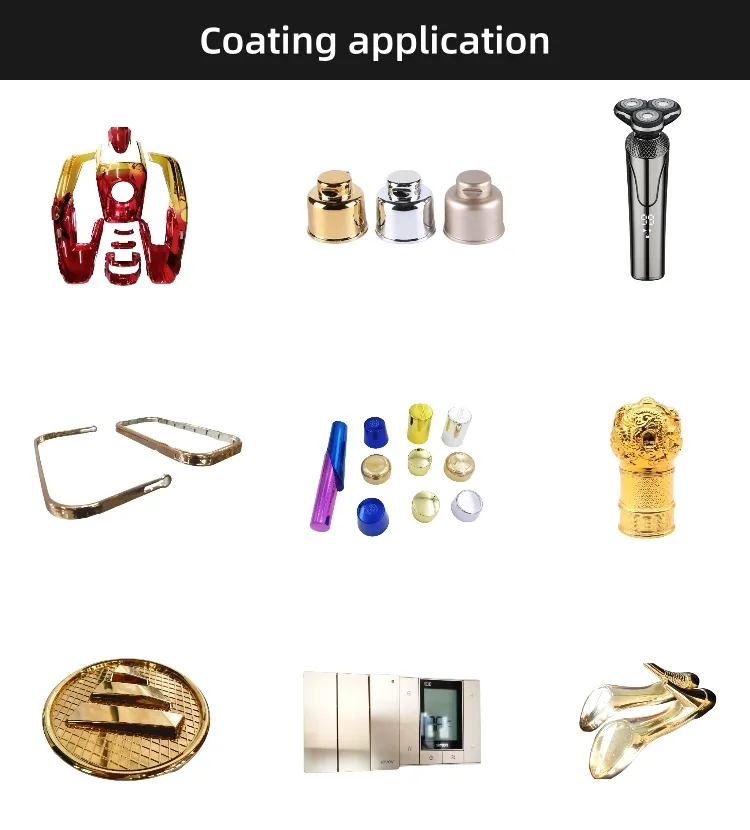

The CCZK-EL evaporation equipment has a wide range of applications, primarily used for depositing decorative thin films on the surfaces of plastic and metal products. It can be used in industries such as automotive headlight reflectors, various plastic parts, resin-based decorative elements, handicrafts, lighting fixtures, footwear, mobile phone cases, cosmetic packaging, caps and closures, toys, and Christmas gifts, etc.

Frequently Asked Questions

Q1 Why choose our brand's vacuum coating equipment?

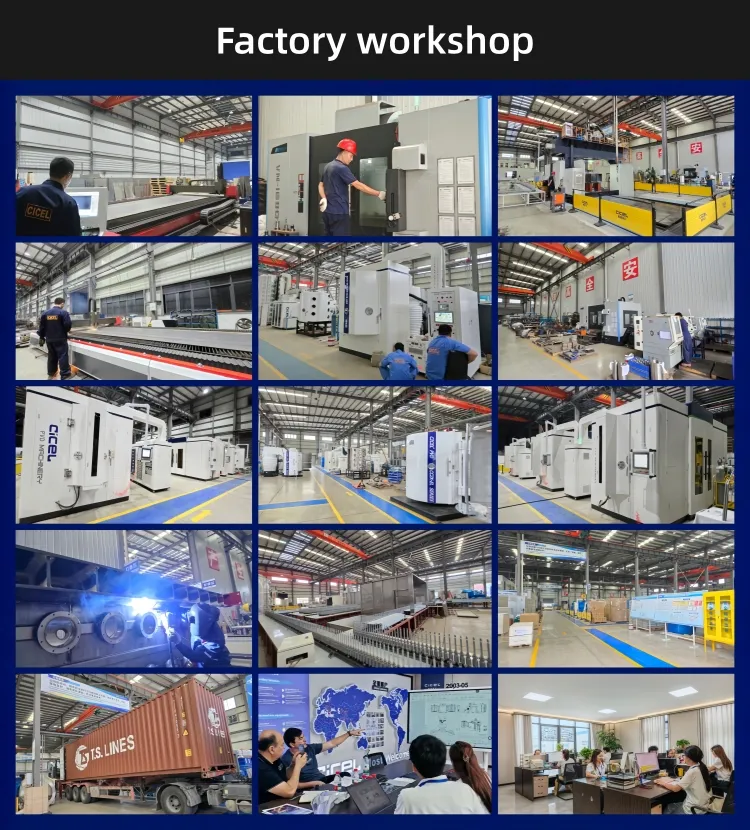

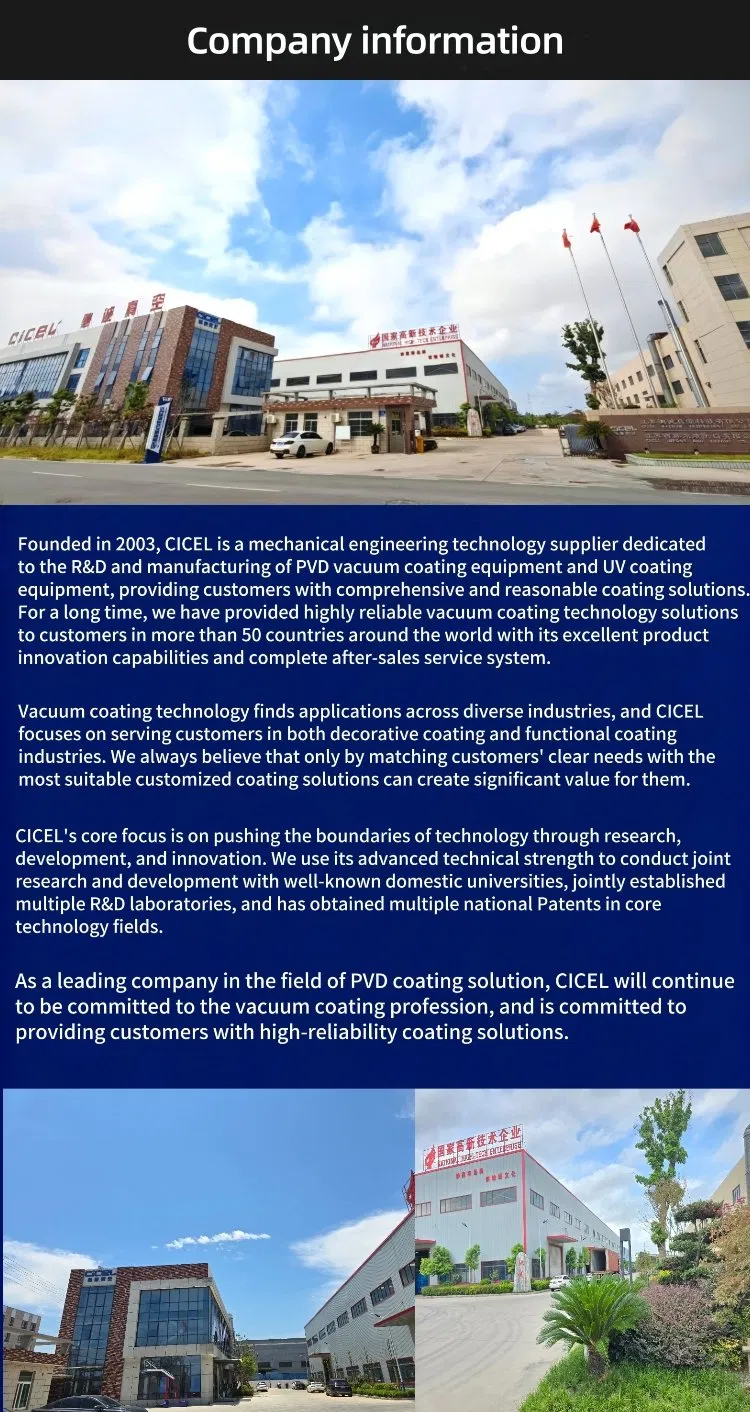

We have more than 20 years of rich experience in manufacturing PVD vacuum coating equipment and UV spraying equipment. Led by pioneering PVD technical engineers, we continuously invest in innovation and maintain a professional team of over 30 full-time installation and training engineers servicing customers in over 50 countries.

Q2 Can the PVD coating equipment be customized according to specific production requirements?

Yes. We customize the vacuum chamber dimensions and coating system configurations based on your product materials, sizes, volume needs, and coating requirements. We can also recommend standard models common in your industry.

Q3 Is the equipment difficult to operate and maintain?

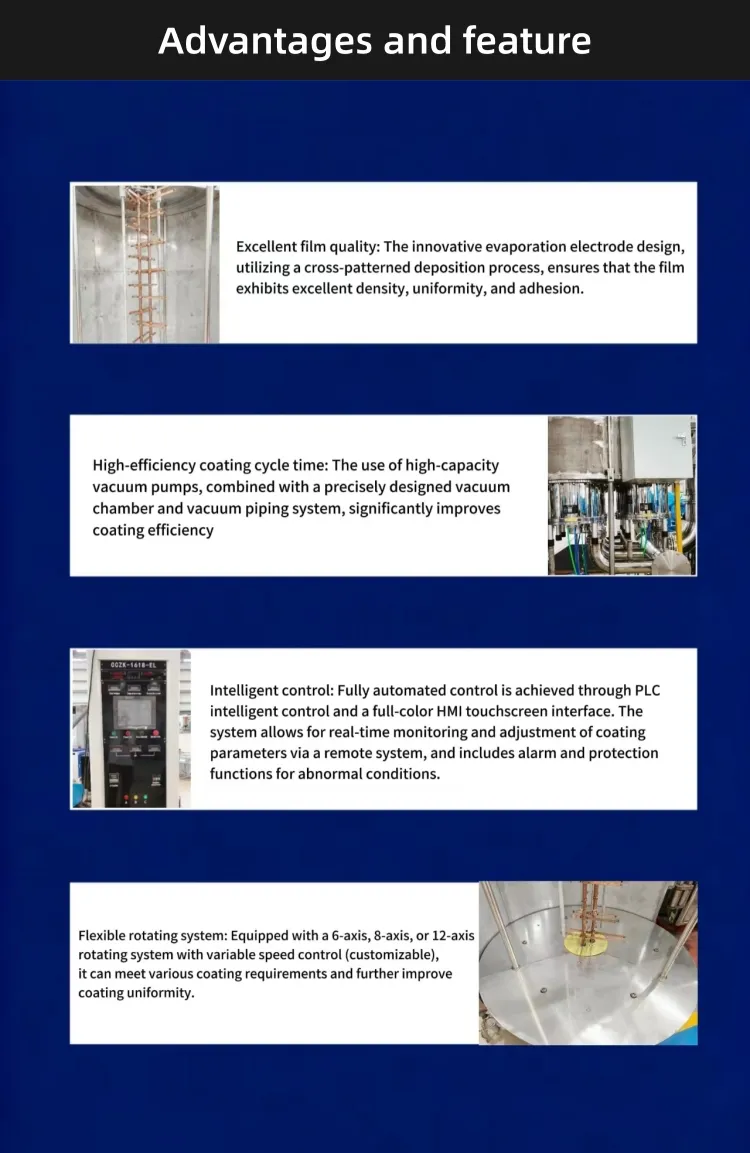

No, our latest generation of PVD coating machines features a fully automated coating system with easy process selection. The integrated remote control system enables operators to manage and monitor system parameters using a mobile device or computer, while allowing remote troubleshooting support.

Q4 What training services are provided for operators?

We provide complete technical operation training at our facility after you order the system. Additionally, during installation and commissioning at your facility, our field engineers deliver hands-on technical training covering operations, daily maintenance, and basic troubleshooting.

Q5 What is the equipment warranty period and technical support response time?

The standard equipment warranty is one year with lifetime maintenance coverage. Extended warranty packages are also available. Technical support response time is 2 hours or less via remote communication tools.

Q6 What materials can be coated and what are the primary applications?

The machine supports various substrates including plastic, resin, glass, and metal. It is widely applied for depositing decorative thin films on automotive headlight reflectors, plastic parts, cosmetic packaging, toys, and Christmas gifts.
