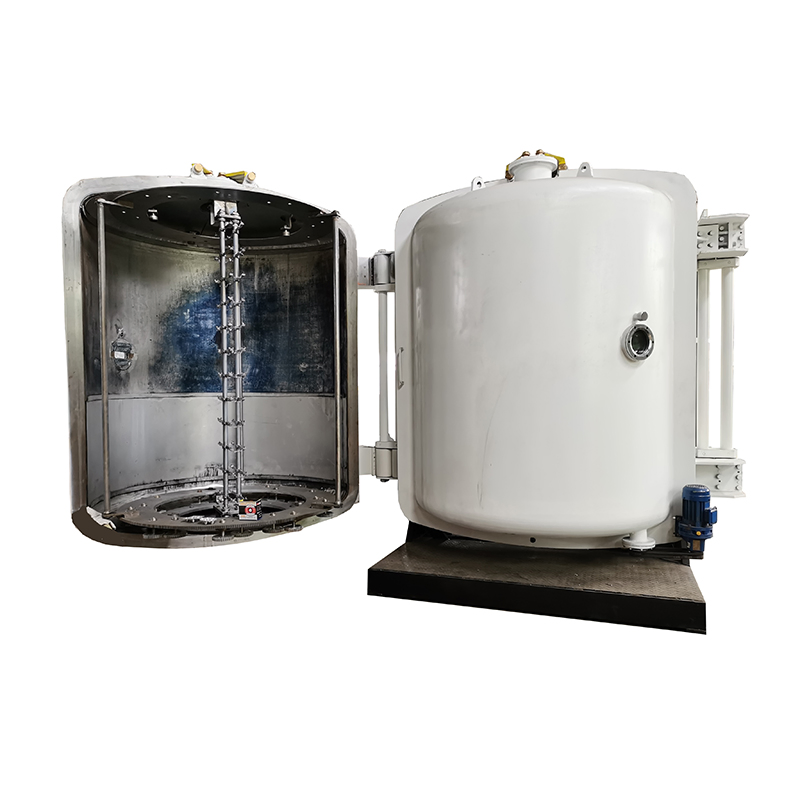

Evaporation aluminum coating machine is a machine that uses substances to evaporate and deposit on a substrate in a high vacuum environment to form a thin film. This type of equipment is widely used in multiple fields, including construction hardware, watchmaking, furniture, lighting fixtures, hotel utensils, etc.
Vacuum evaporation coating machine mainly includes the following steps:
1. Clean the surface of the substrate to ensure that the walls of the vacuum chamber and the surface of the substrate frame are free of oil stains, rust, etc., to ensure the purity and adhesion of the film layer.
2. Preparation before plating, including vacuuming to an appropriate vacuum degree, pre-treatment of the substrate and coating material, heating the substrate to remove moisture and enhance the adhesion between the film and substrate.
3. During the evaporation stage, select the appropriate substrate temperature and plating material evaporation temperature, control the deposition pressure, i.e. vacuum degree, and affect the average free path of gas molecule movement in the evaporation space.

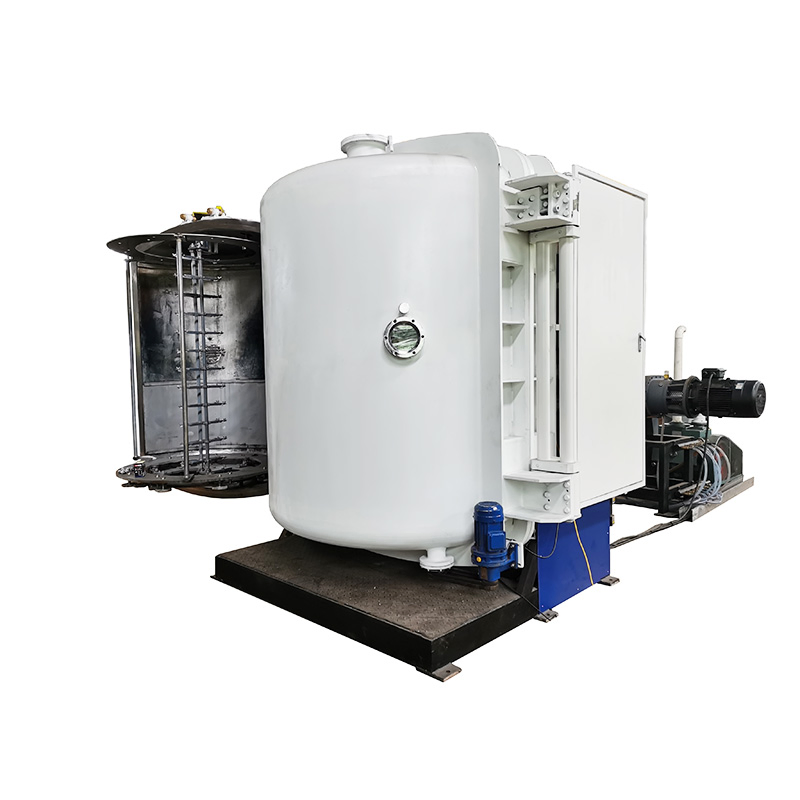

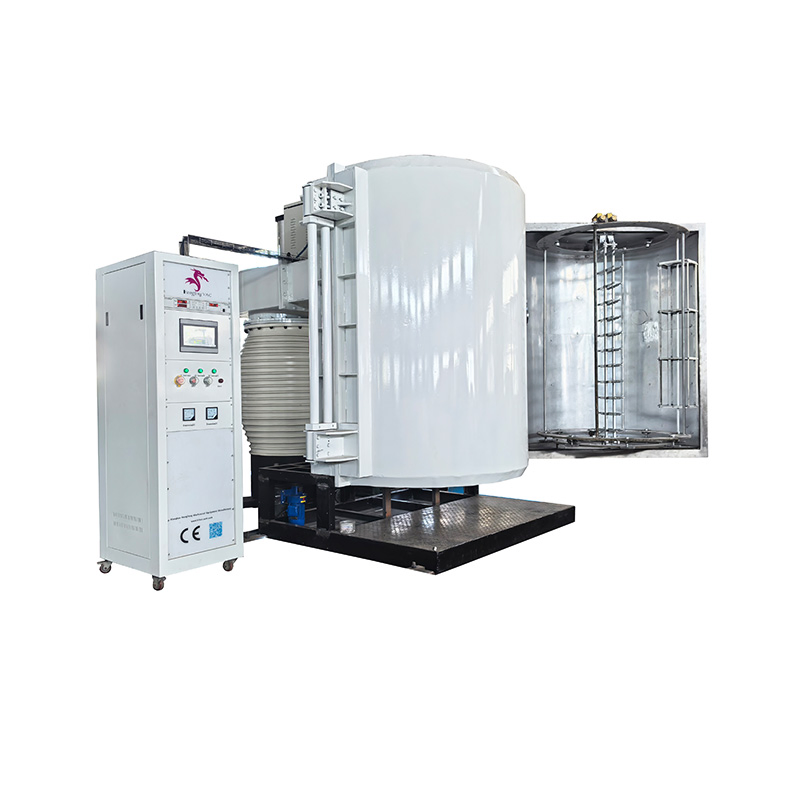

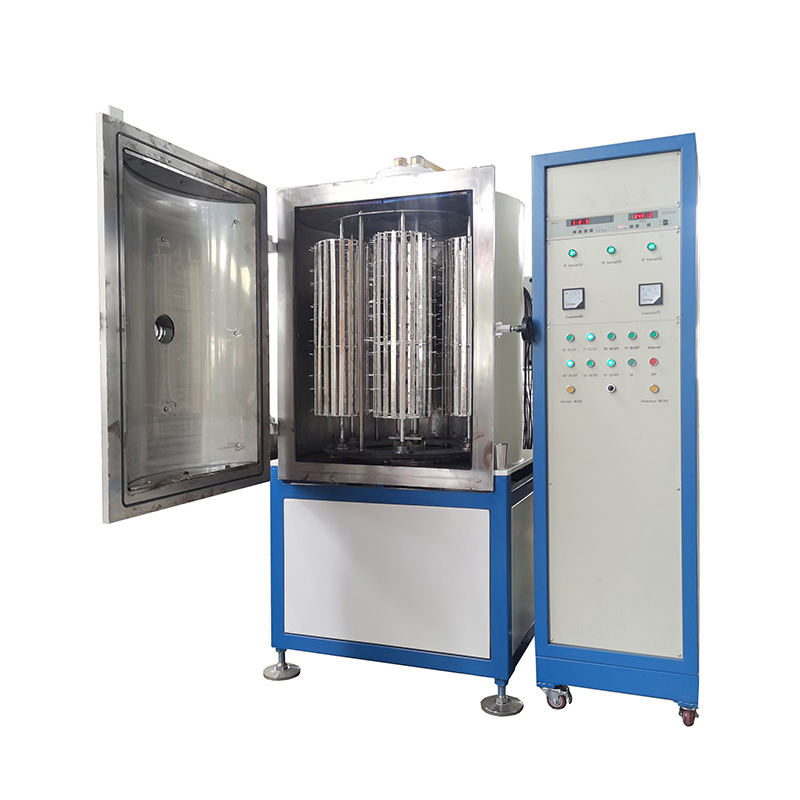

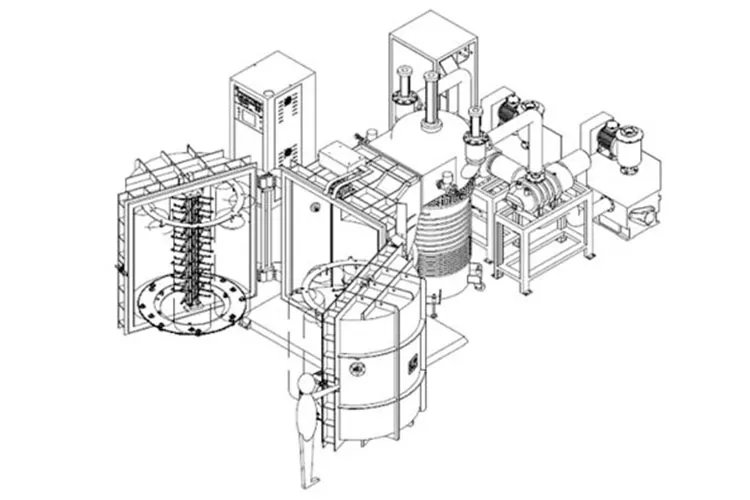

Vacuum coating machine consists of a vacuum pumping system and an evaporation chamber, wherein the vacuum pumping system includes a high vacuum pump, a low vacuum pump, an exhaust pipeline, valves, etc., and may also include a cold trap and a vacuum measuring meter.
Vacuum plating machine has advantages such as high deposition rate, precise control, suitability for multiple materials, high-quality films, high deposition capacity, environmental protection, and economy.
The system uses base and top coats that are automotive quality coatings. The second surface vacuum metalizing process involves depositing the evaporated metal on a clear substrate (glass or clear plastic) and back coating the metal with an opaque paint. This process has been used to decorate automotive emblems for exterior applications.
Vacuum Metalizing can be applied to: Plastics, Metals, Glass, Urethanes, Fiberglass, Ceramic, SLA's, Paper products and many other materials. Products such as: Headlamp and Tail Lamp Reflectors, Automotive and Motorcycle trim, Hardware, Lamp Reflectors, Advertising Display Items, Emblems, Trophies, Packaging films, Toys, Fishing Lures and novelty items are some of the many products that are Vacuum Metalized.
Base coating: For most decorative and reflective applications it is necessary to apply a specially formulated primer or basecoat to promote adhesion and to provide a smooth surface, assuring a high quality surface for the metalizing or finish paint steps.
Then vacuum metalizing itself
Top coating: Only when it requires, topcoat is applied to enhance, moisture, abrasion, and chemical resistance.
| Mode | EV-1000 | EV-1200 | EV-1600 | EV-1800 |
|---|---|---|---|---|
| Dimension | D1000*H1100mm | D1200*H1400mm | D1600*H2000mm | D1800*H2000mm |
| Main Applications | Plastic or glass metallizing, decorative coatings | |||
| Coating System | Evaporation Coating System with high power transformer | |||

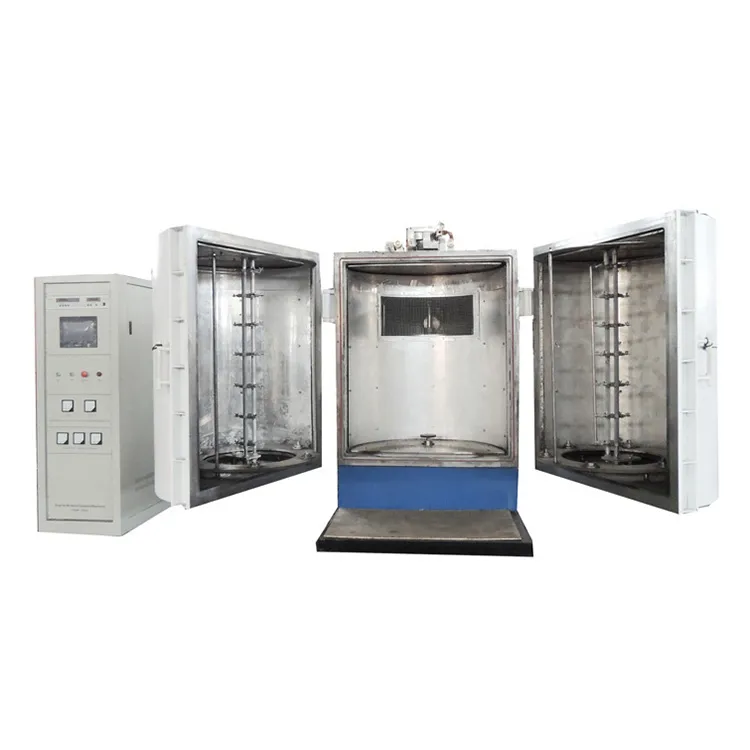

| Vacuum chamber structure | Vertical chamber front opening door, one or two doors, as well as two chambers optional | |||

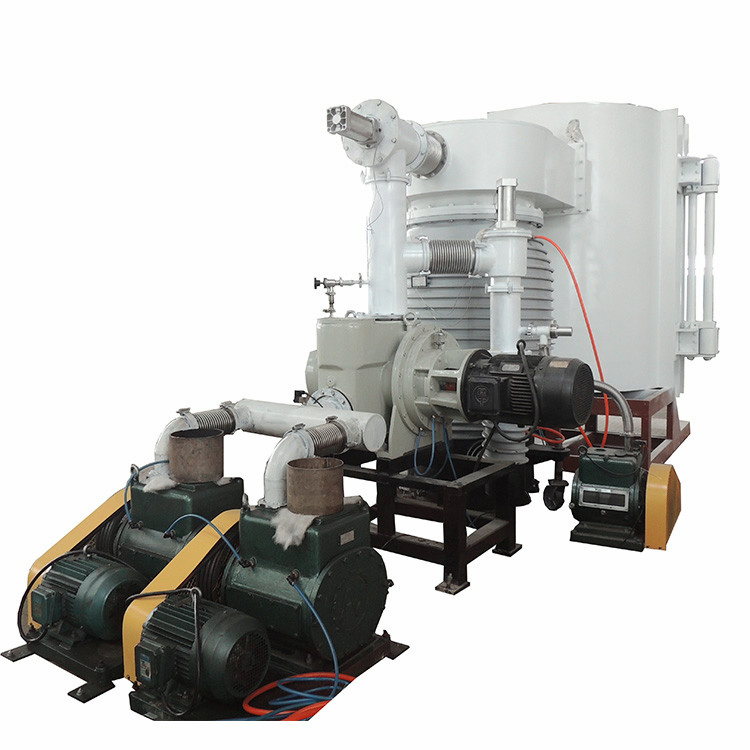

| Pumping system | Diffusion pump(Molecular pump) + Roots pump + Mechanical pump (5.0*10-4Pa) | |||
| Workpiece Carousel | Public rotation Frequency control: 0-20RPM | |||
| Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa | |||
| Control mode | Manual/Automatic work mode by PLC touched screen | |||
| Remark | All the specifications can be customized according to your requests. | |||
Vacuum metallizing coating is an economic method to apply the high quality reflective metallic finishing on plastic substrates. This machine is very fast cycle. You may apply this thermal evaporation coating for different industries.
Some of the products only need the silver/chroming effect. But some of them need to be colorful. Then the customers will need other machines to apply the colors.
After the customer tested the machine and make sure the machine is no problem, we will take the machine apart. The solid packing can make sure you will receive a machine without any destroy.
