| Product name | LED linear light-3575 |
| Product size | L1200*W35*H75mm |
| Material | aluminium+PC |
| Surface treatment | Teflon or Powder coated |
| Color Option | black/white |
| Input voltage | 85-240V 50/60HZ |
| Wattage | 30W/36W/42W |
| CCT | 3000K/4000K/6000K |
| Luminous Efficacy(lm/w) | 90lm/w |
| LEDs life span | 50000H |
| Color Render (CRI) | RA≥80 or RA≥90 |
| Power Factor(PF) | ≥0.9 |
| Beam Angel | 120° |
| Optional Features | 0-10V dimming, DALI dimming, 2.4G dimming, CCT dimming |
| IP Rate | IP20 |
| Working Temp (℃) | -20℃ - 40℃ |
| Certification | CE, ETL, FCC, ROHS, CCC |
| Warranty | 3 Years or 5 Years |

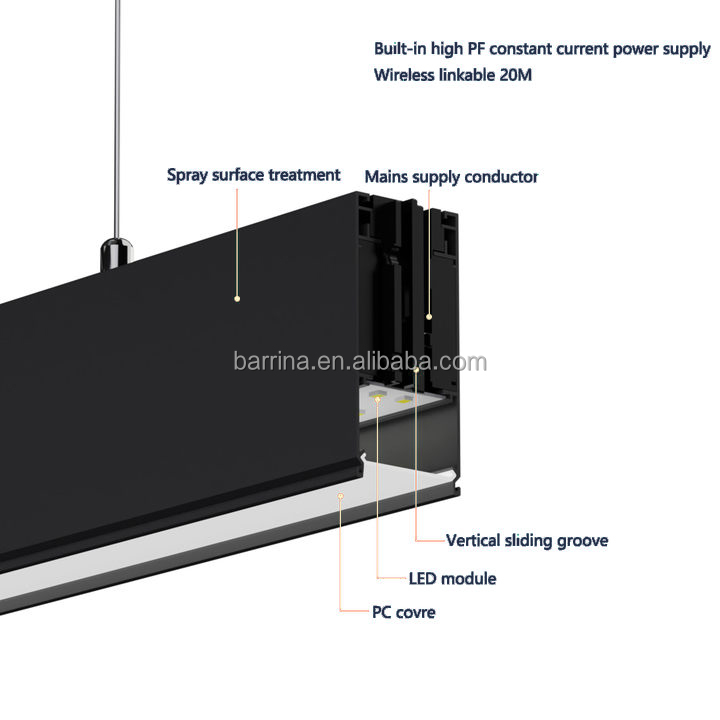

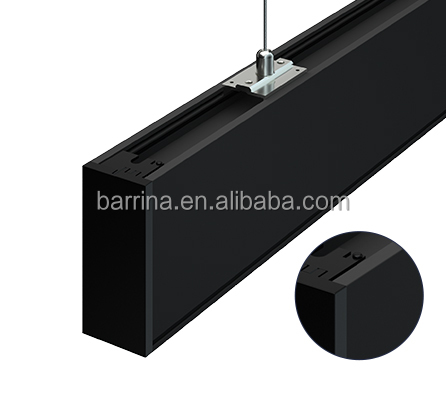

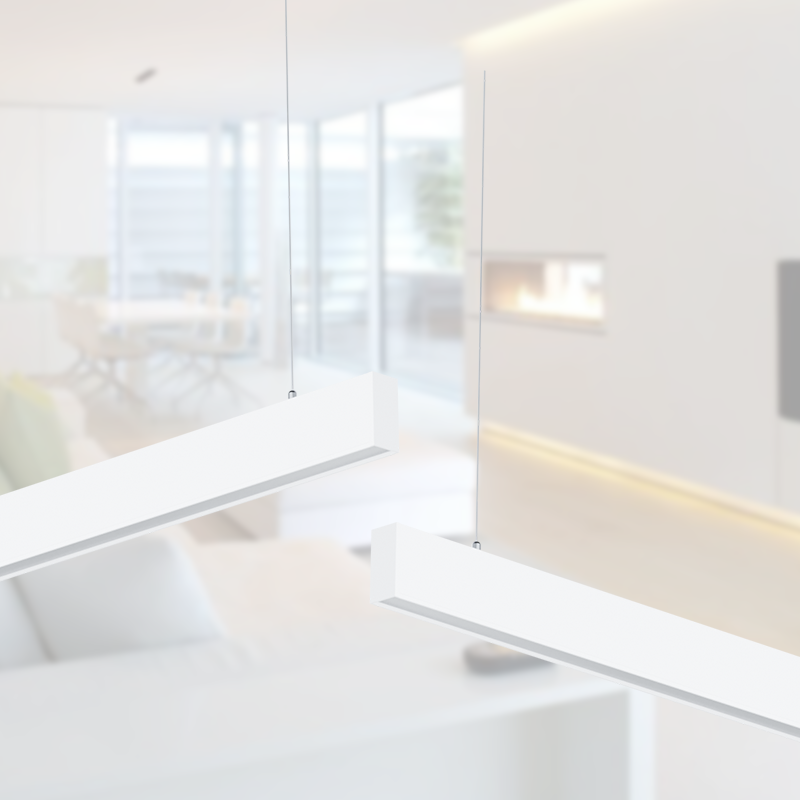

The light housing is made of high quality aluminum alloy material. Powder coating, corrosion resistance, easy to clean.

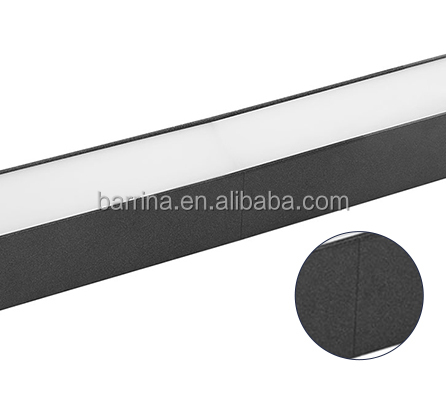

Featuring with unique linkable design, these linear lights could be connected up to 15pcs 4FT linear lights in series seamlessly.

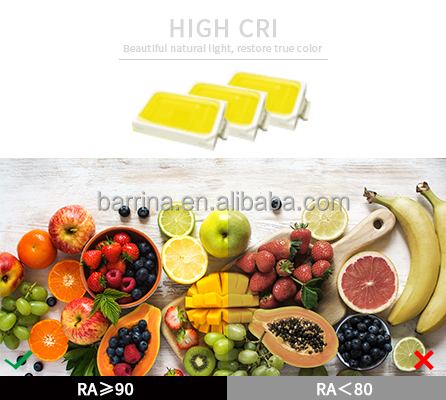

Beautiful natural light. High-quality LED chip, the real "CHIP" is different, using LED chips to restore the true color of the object, strong heat dissipation, refused to splash screen to protect the eyes and health.

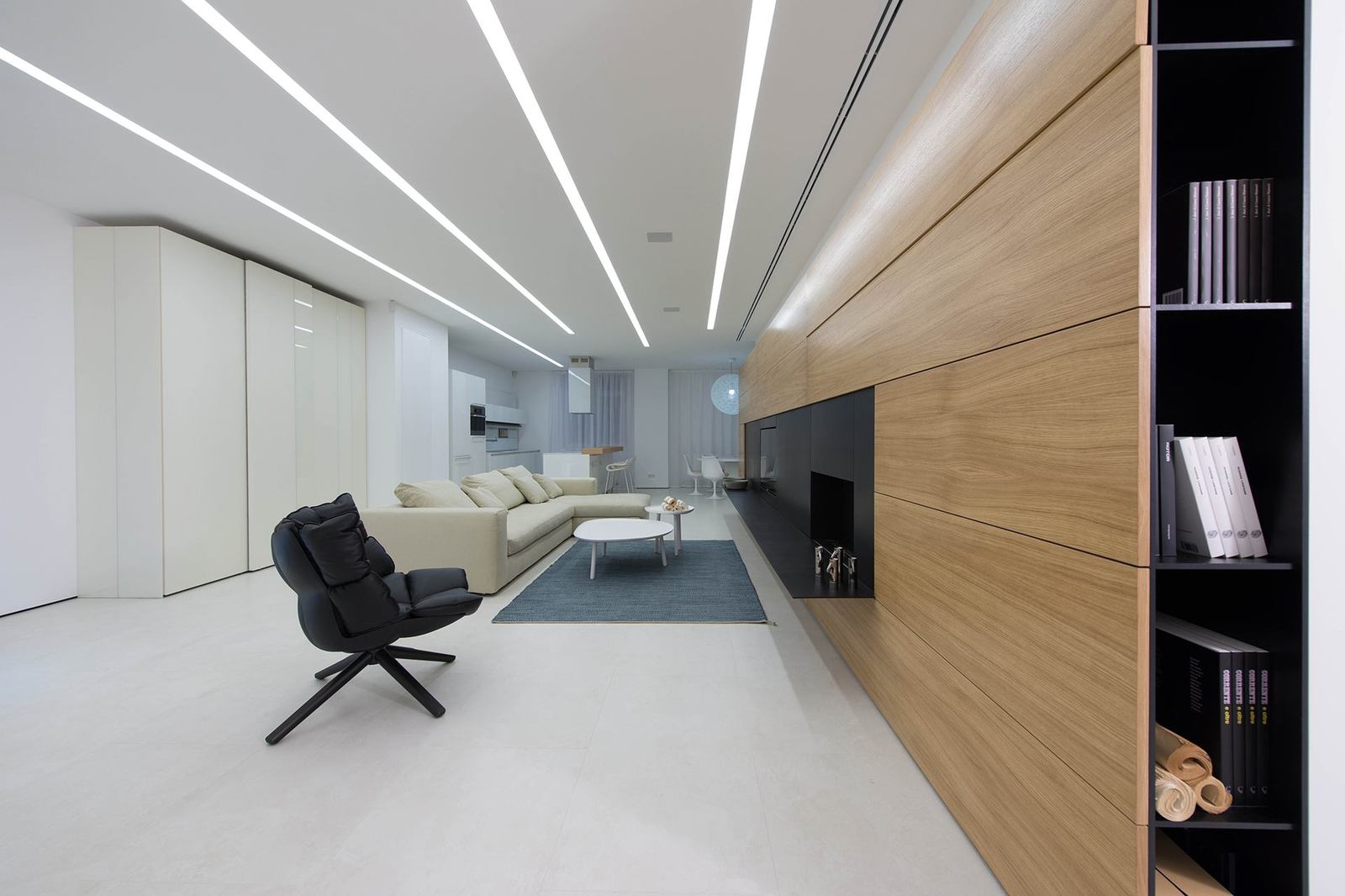

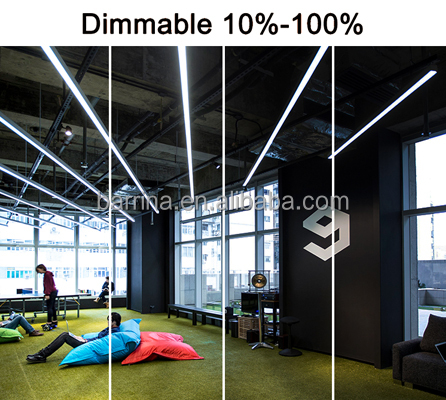

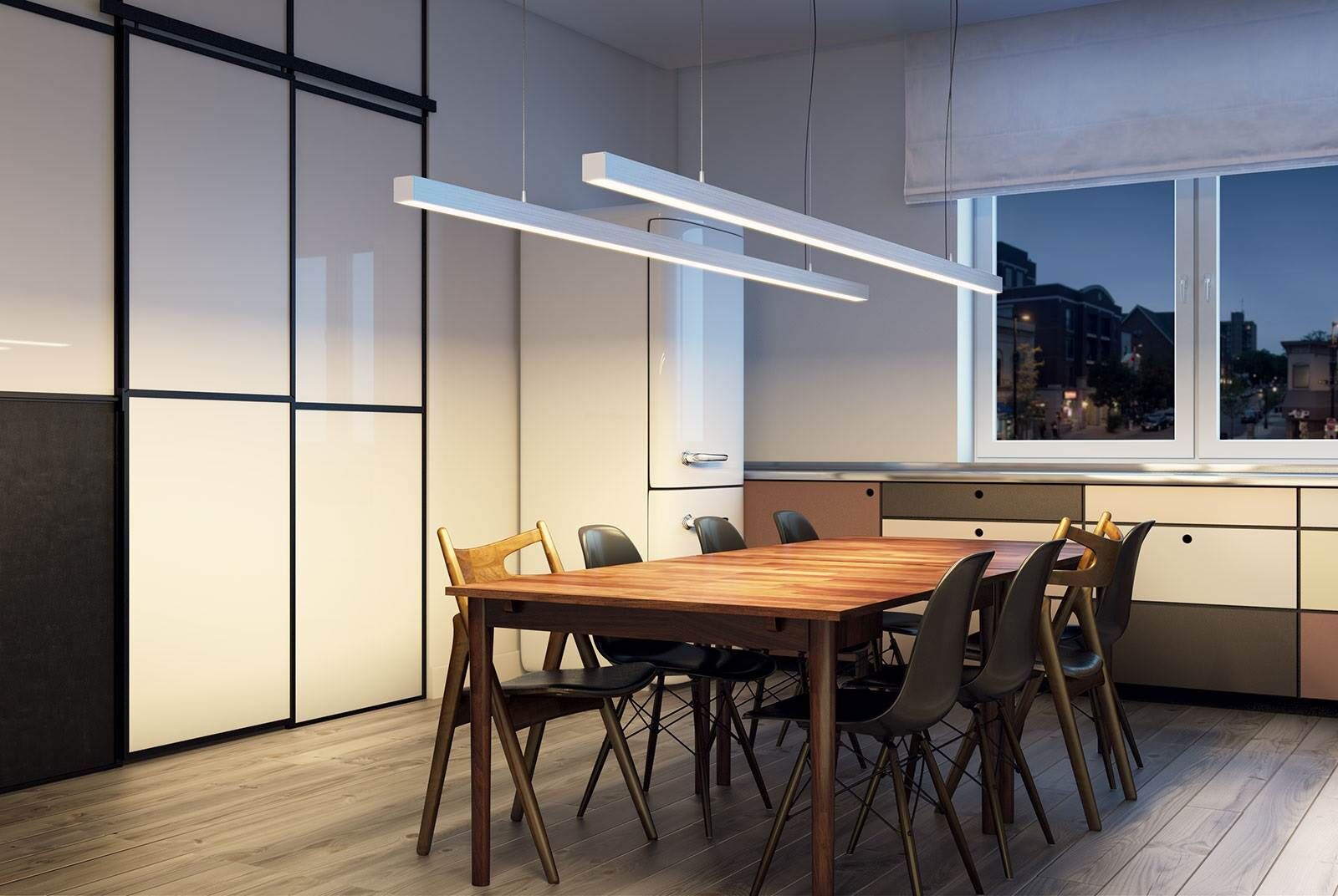

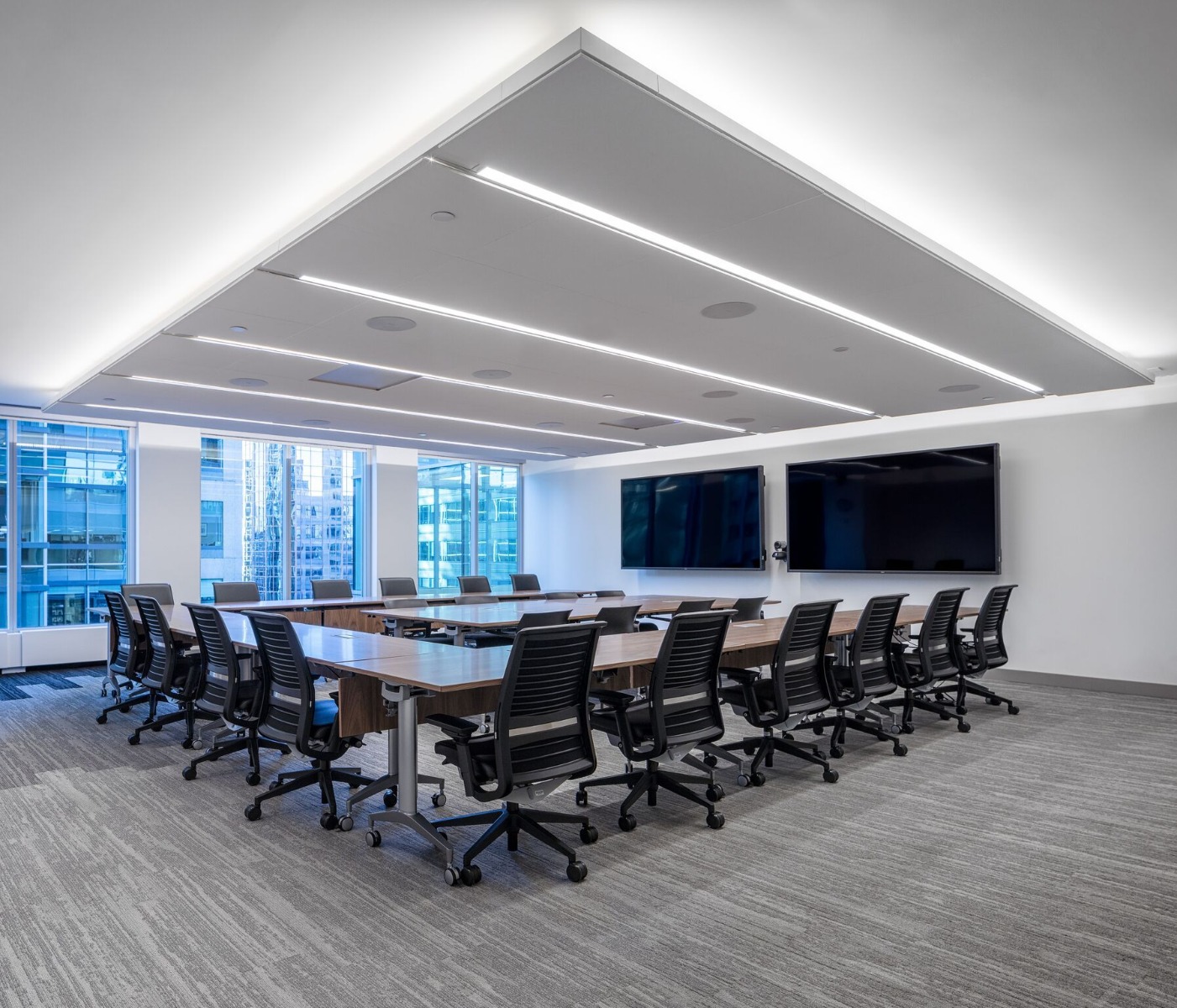

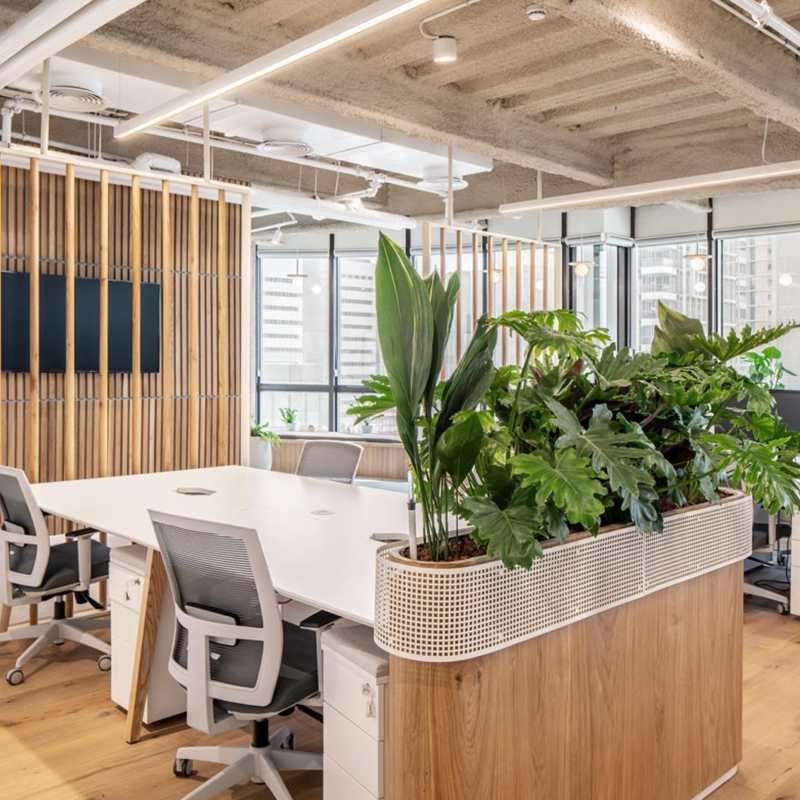

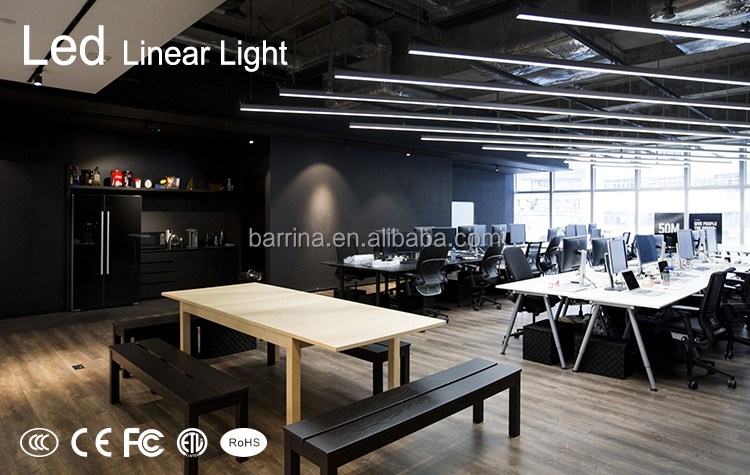

Dimming from 10% to 100%. A good option for different environment atmosphere and eye protection. Ideal for wide spaces, such as commercial office, living room, restaurant and exhibition hall, etc.
| Model No. | Product size | Voltage | Wattage | Efficacy | PF | CRI | Certificate |
|---|---|---|---|---|---|---|---|
| BTD3575-1230A0 | 1200x35x75mm | 85-277V / 220-240V | 30W | >100lm/w | >90 | >80 | ETL , CE |
| BTD3575-1025A0 | 1000x35x75mm | 85-277V / 220-240V | 25W | >100lm/w | >90 | >80 | ETL , CE |
| BTD3575-0918A0 | 900x35x75mm | 85-277V / 220-240V | 23W | >100lm/w | >90 | >80 | ETL , CE |
| BTD3575-0612A0 | 600x35x75mm | 85-277V / 220-240V | 12W | >100lm/w | >90 | >80 | ETL , CE |
| BTD3575-0306A0 | 300x35x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL , CE |
| 90° splicing | 150x150x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL , CE |
| 120° splicing | 228x157x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL , CE |
| T splicing | 245x150x75mm | 85-277V / 220-240V | 8W | >100lm/w | >90 | >80 | ETL , CE |
| Y splicing | 225x260x75mm | 85-277V / 220-240V | 8W | >100lm/w | >90 | >80 | ETL , CE |
| Cross (+) splicing | 245x245x75mm | 85-277V / 220-240V | 12W | >100lm/w | >90 | >80 | ETL , CE |

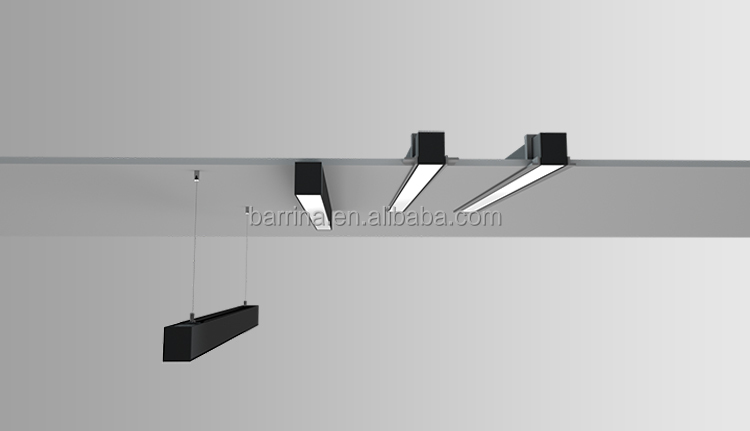

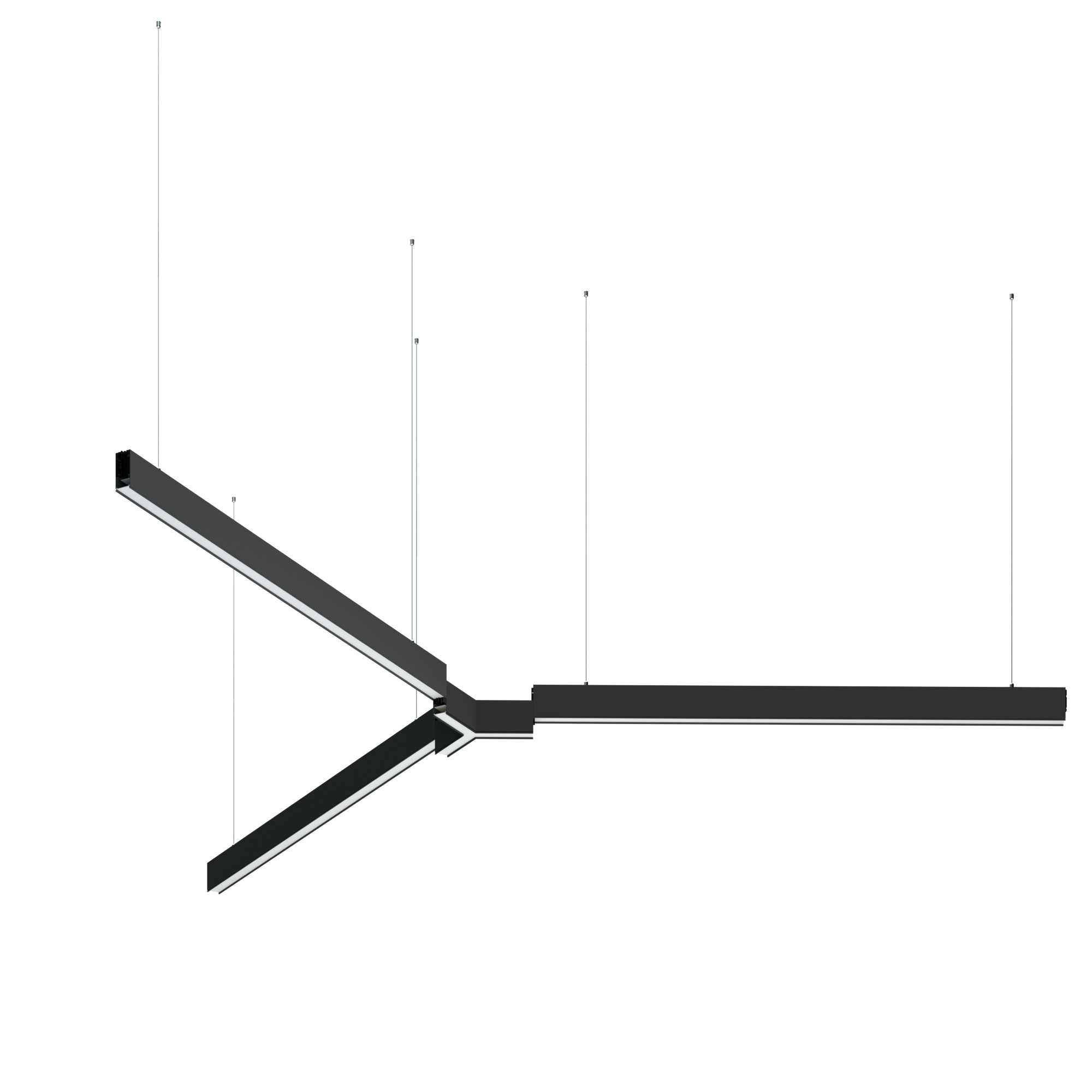

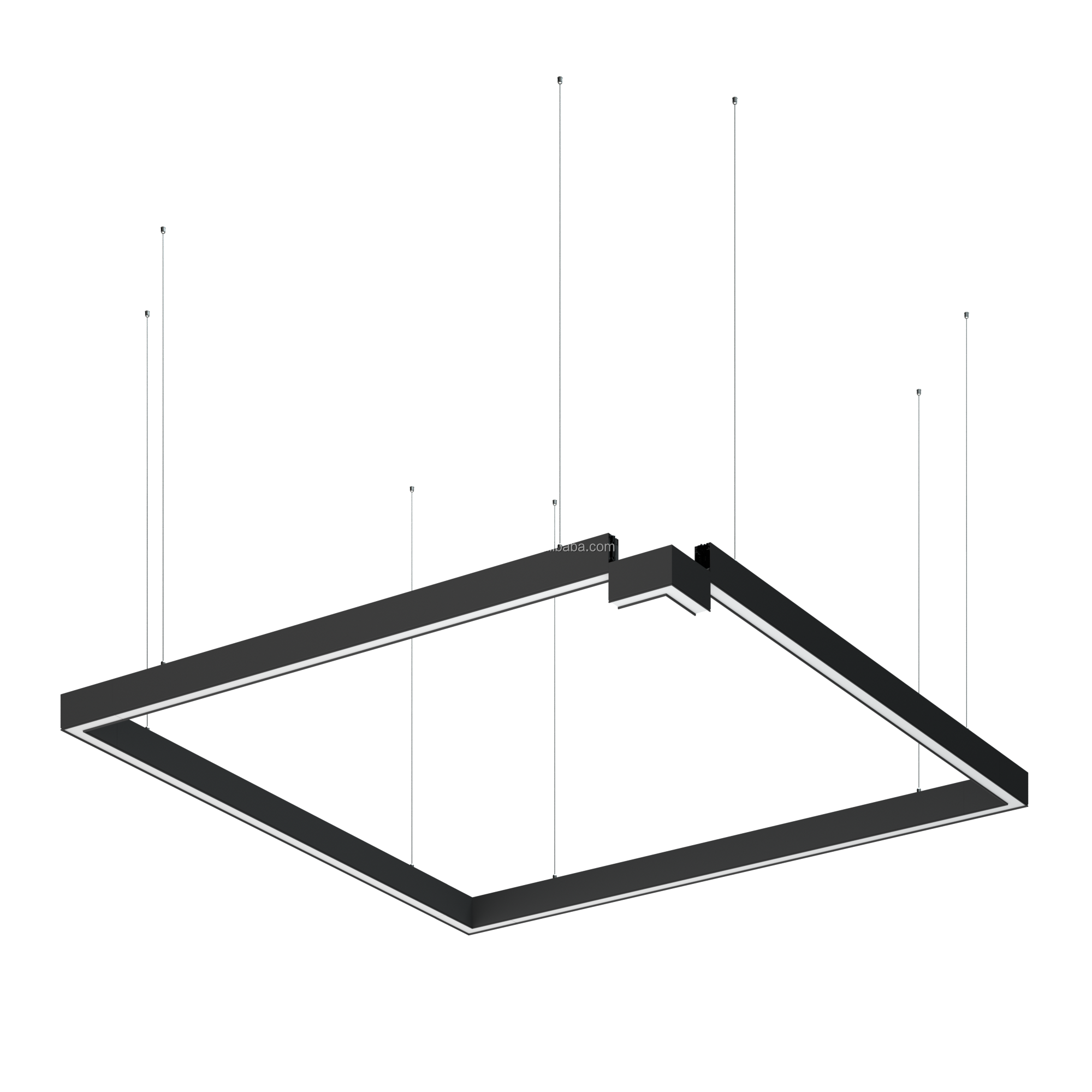

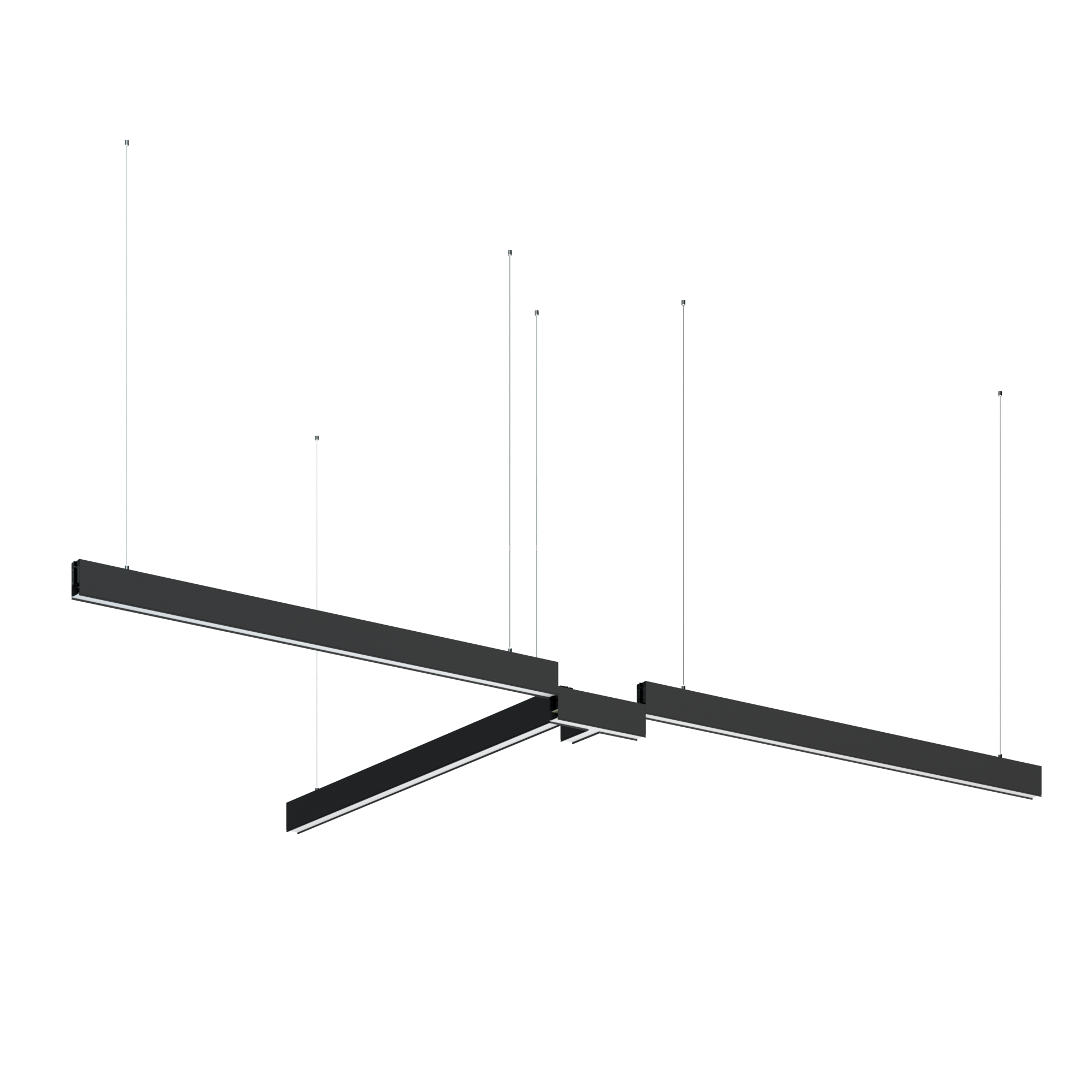

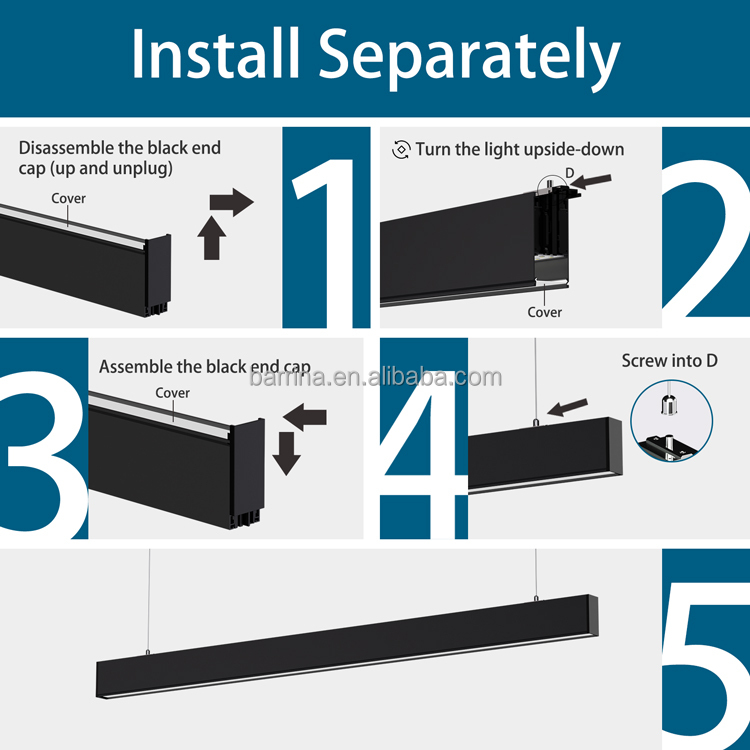

A variety of installation methods, enjoy the changeable visual space fun.

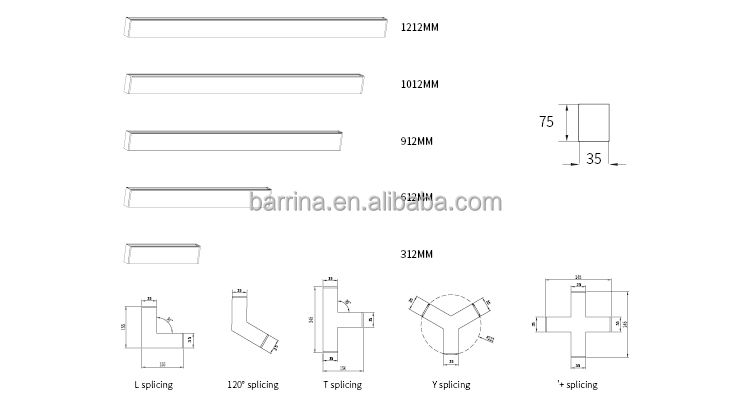

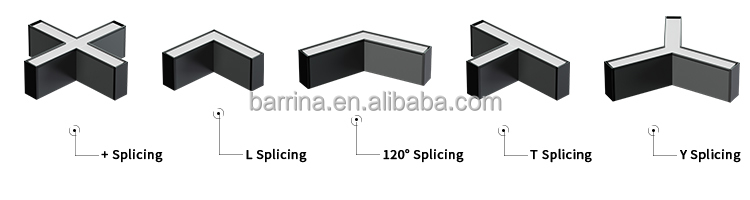

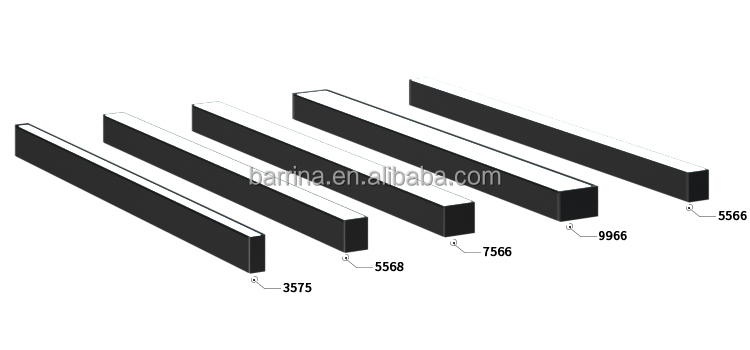

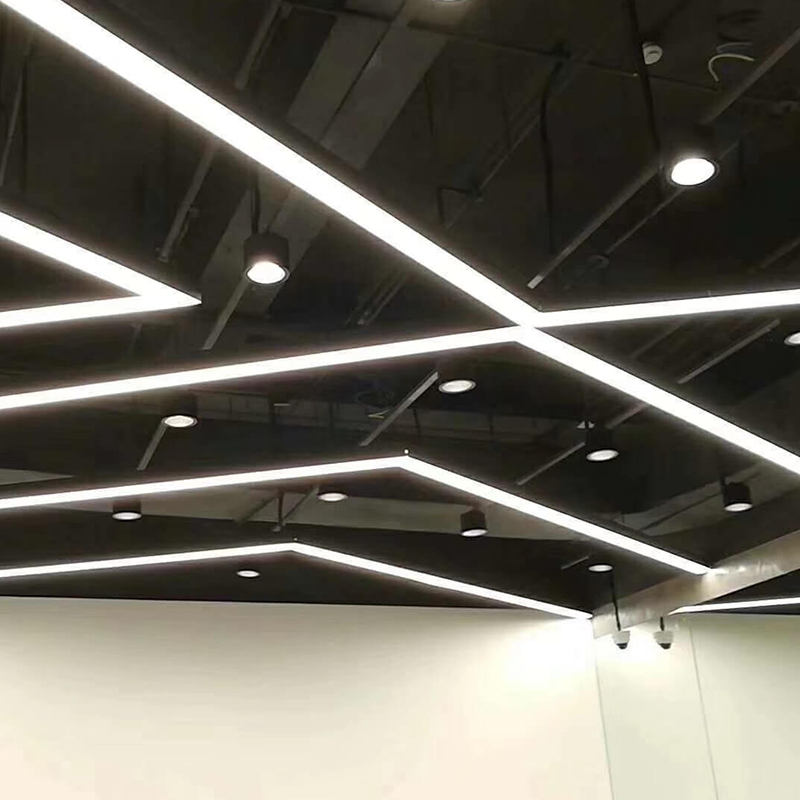

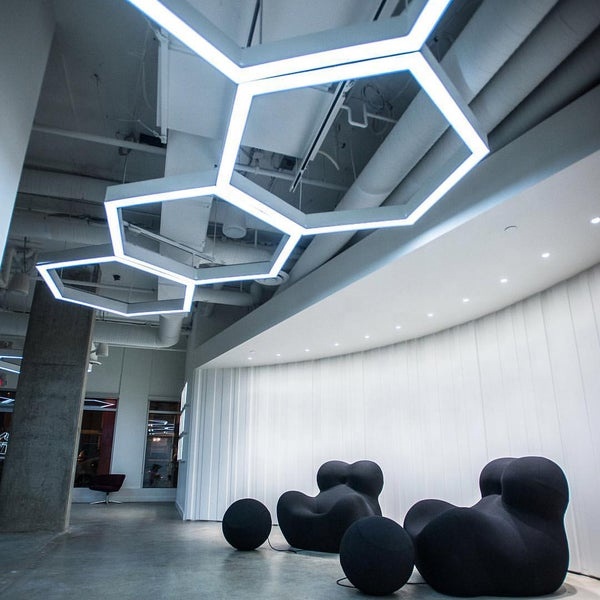

A variety of lengths and spliced shapes, experience a different sense of space.

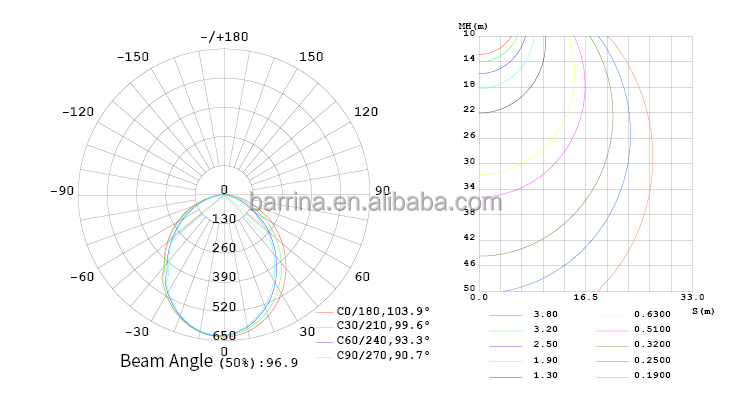

The illumination data is in full view.
Our LED linear lights adopt international invention patents to solve industry pain points faced during production, installation and after-sales in the linear light field.

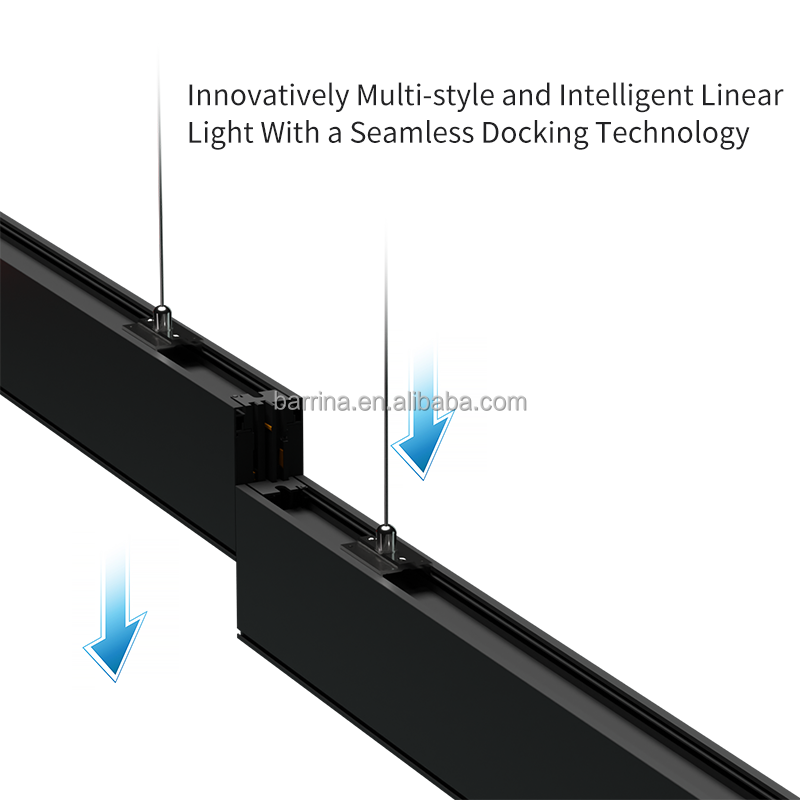

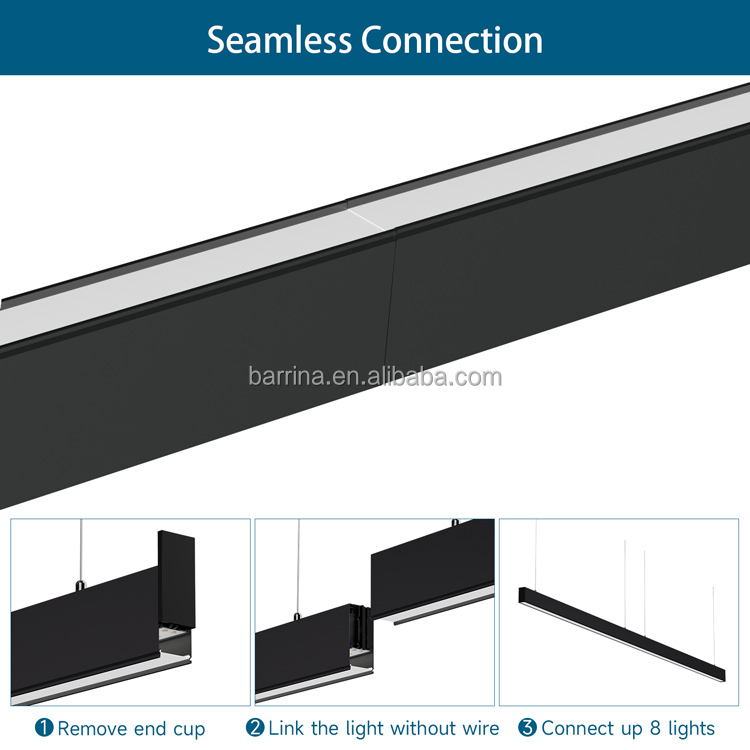

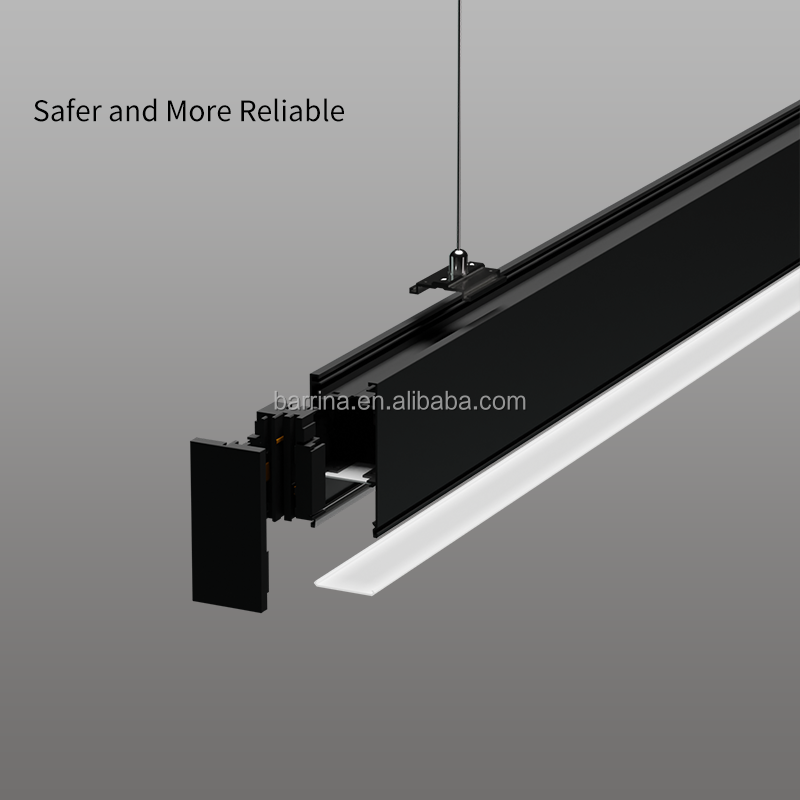

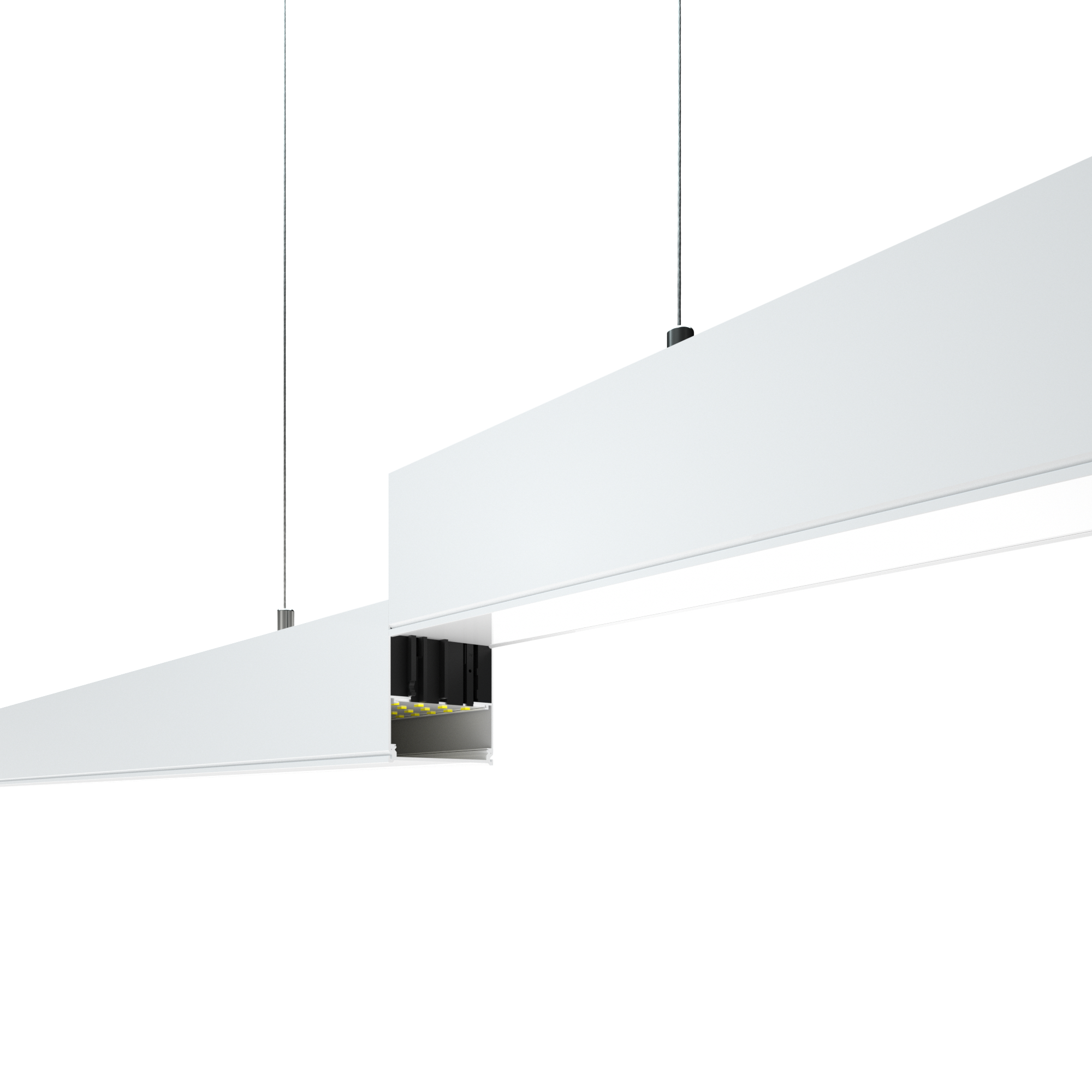

Seamless docking technology makes the lights link easily, eliminates on-site reprocessing, and reduces installation quality hazards. You can link up to 15 lights in a series or use them individually.
The products are standard and integrated, offering exceptional convenience during production, packaging, shipping, installation, and after-sales service.

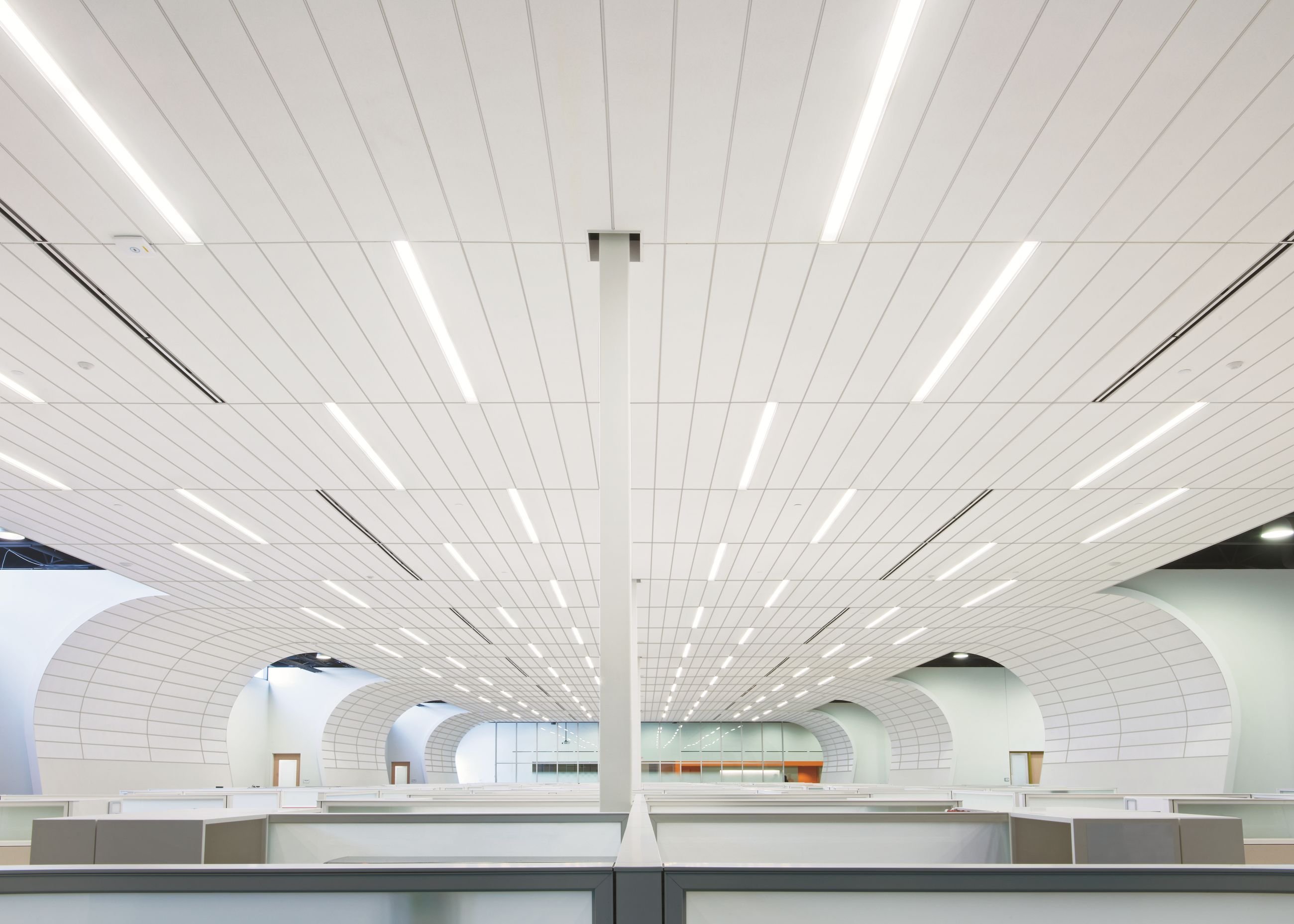

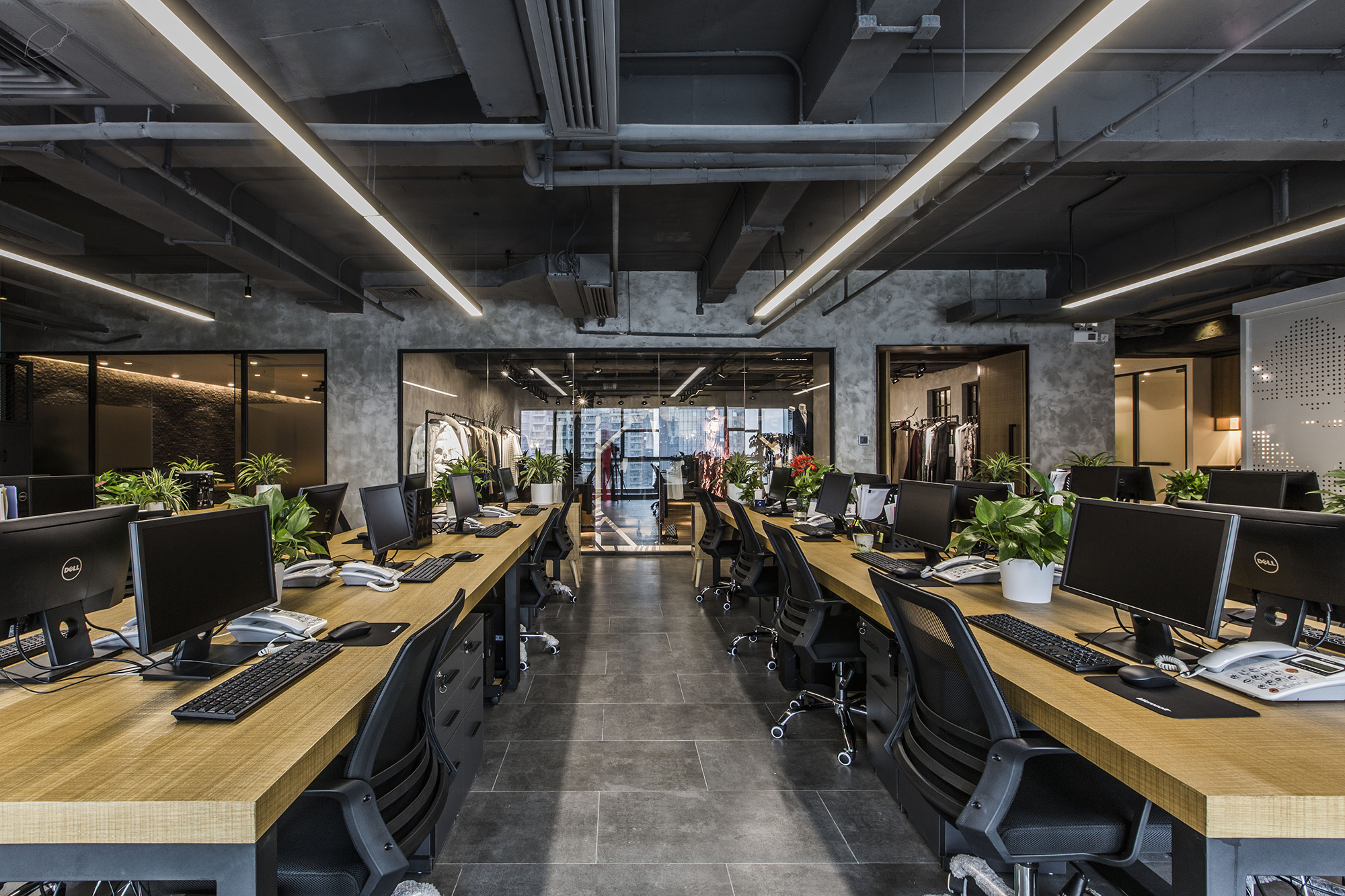

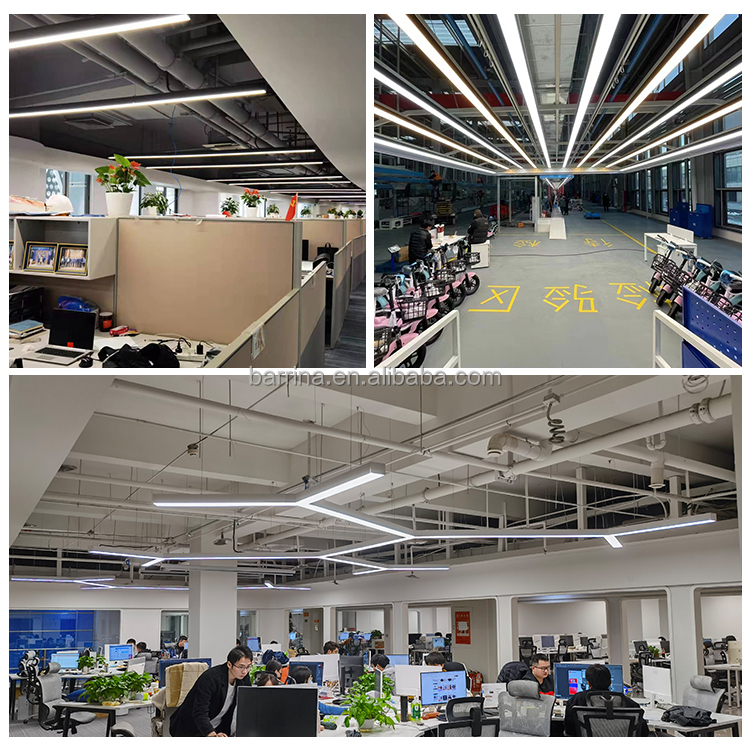

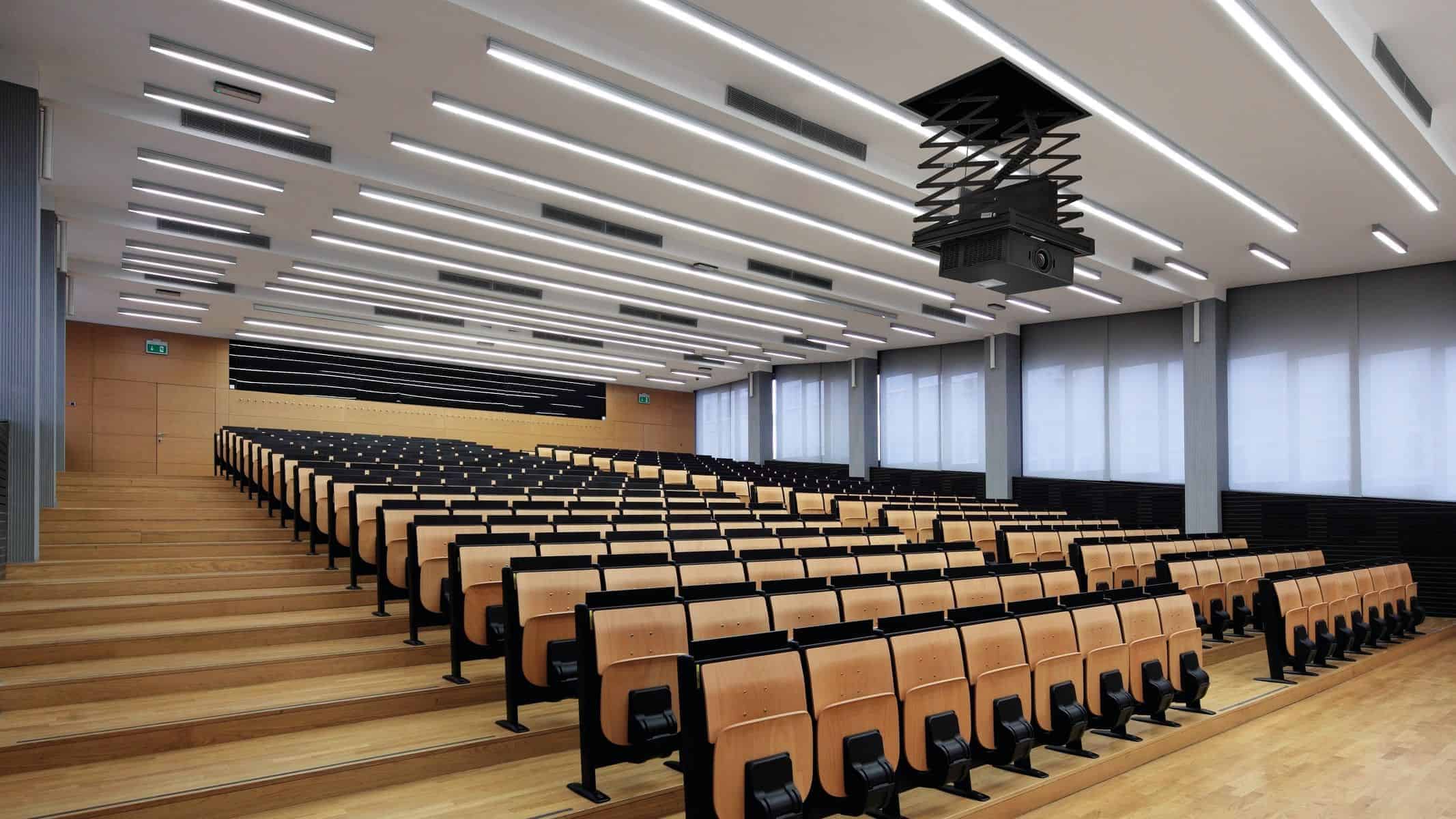

Equipped with a constant current and constant voltage intelligent control system, our lights ensure high efficacy and a long lifespan. They are ideal for high-demand public spaces like schools, offices, hotels, and airports.
We are a professional manufacturer of LED office light, LED Grow Light, LED Commercial Light, Aquarium Light, Indoor Light and other intelligent innovative lighting. We focus on R&D, manufacturing and sales of new function projects or lighting solutions, and obtained a number of invention, utility model and design patents in the industry. The latest design concept and powerful design team with more than 10 years of experience, enable us to launch practical and convenient products continuously and customize more than 20 new products for customers every year to meet customers' demand.

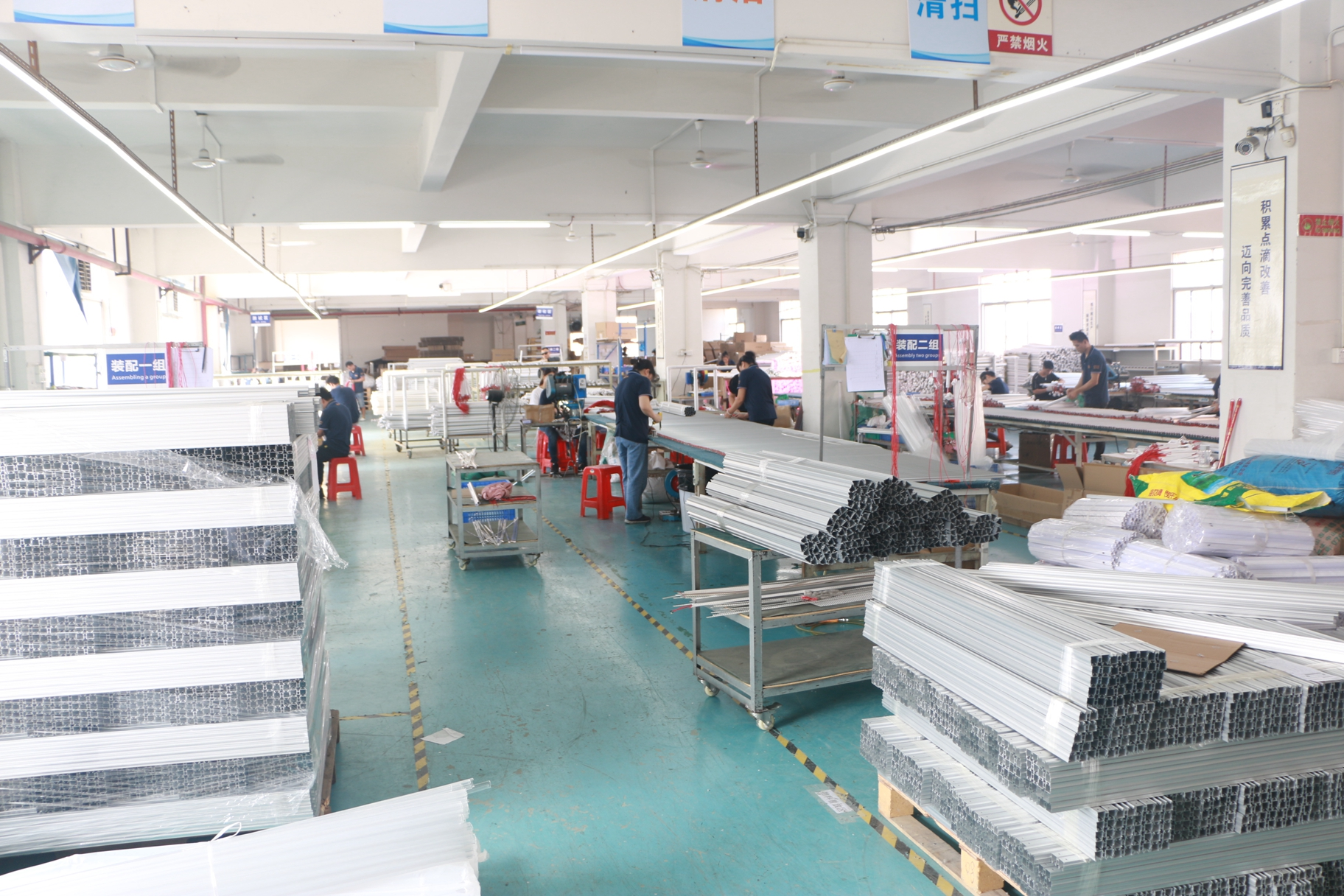

The main products are LED linear light, T5/T8 LED tube light, LED grow light panel, LED grow light bar etc. After continuous development, our products become the hot sellers in the United States, Europe, Japan, Korea and other countries and regions. The factory covers an area of 18,000 square meters, have strict quality management system, testing equipment and automatic production lines, have passed ISO9001:2015.
Innovation and excellence, think what you think is our brand philosophy. With our in-depth research on the global market and key technology engineering and manufacturing capabilities, we constantly create new functional products and series of solutions for consumers. OEM, ODM, MDM, RTS service are available. If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you.
Our standard models come in lengths of 300mm, 600mm, 900mm, 1000mm, and 1200mm to perfectly fit different spatial design layouts.
Yes. They feature a unique seamless linkable design. You can easily connect up to 15 pieces of 4FT linear lights in a continuous series without visible dark areas.
Yes, we provide several dimming control features as options, including 0-10V dimming, DALI dimming, 2.4G dimming, and CCT adjustment dimming from 10% to 100%.
Our products are manufactured under strict standards and have successfully obtained safety and quality certificates such as CE, ETL, FCC, ROHS, and CCC.
We offer either a 3-year or a 5-year warranty depending on the specific product configuration and requirements.
Yes, OEM, ODM, MDM, and RTS services are fully supported. With a professional team of over 10 years of experience, we customize more than 20 new designs for clients annually.
