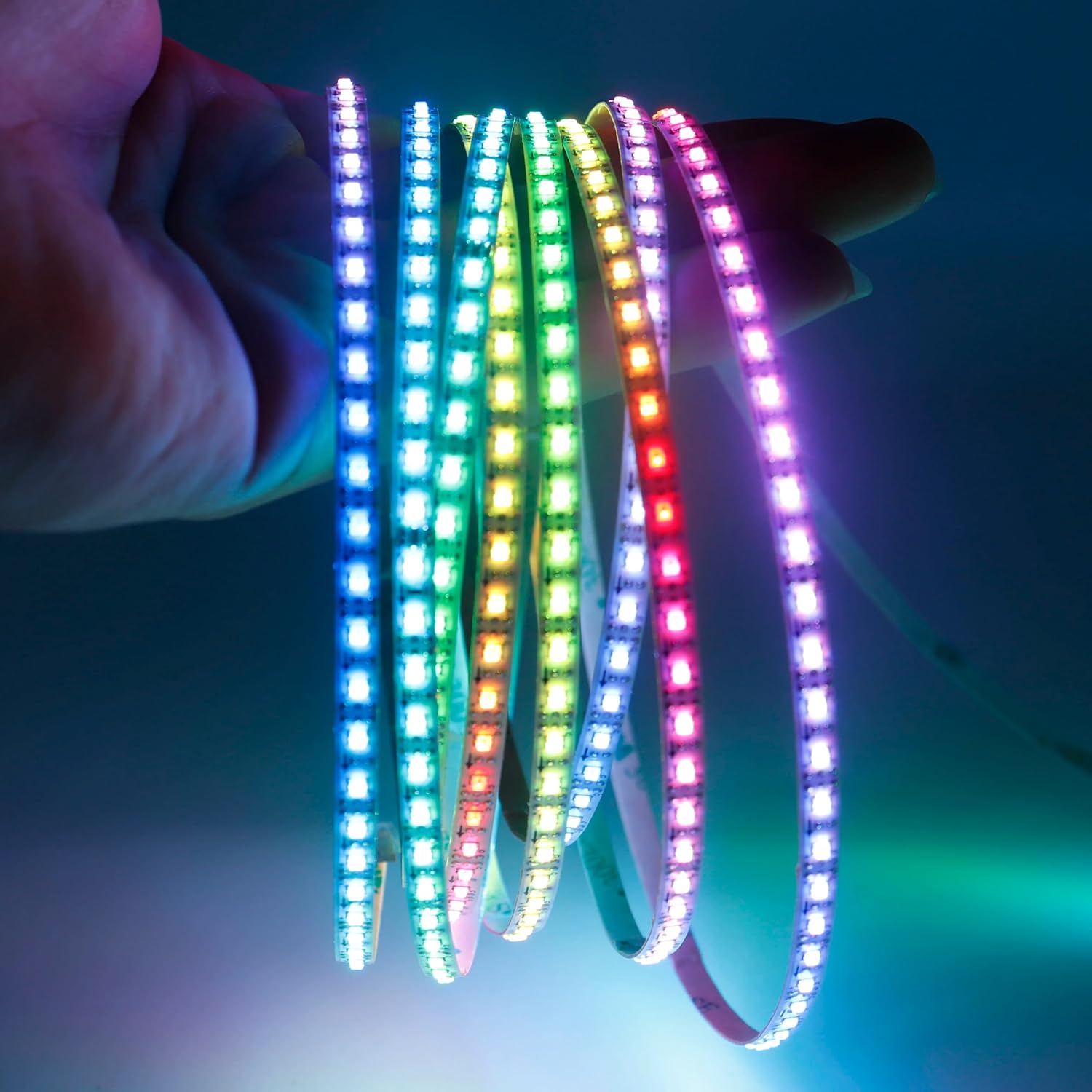

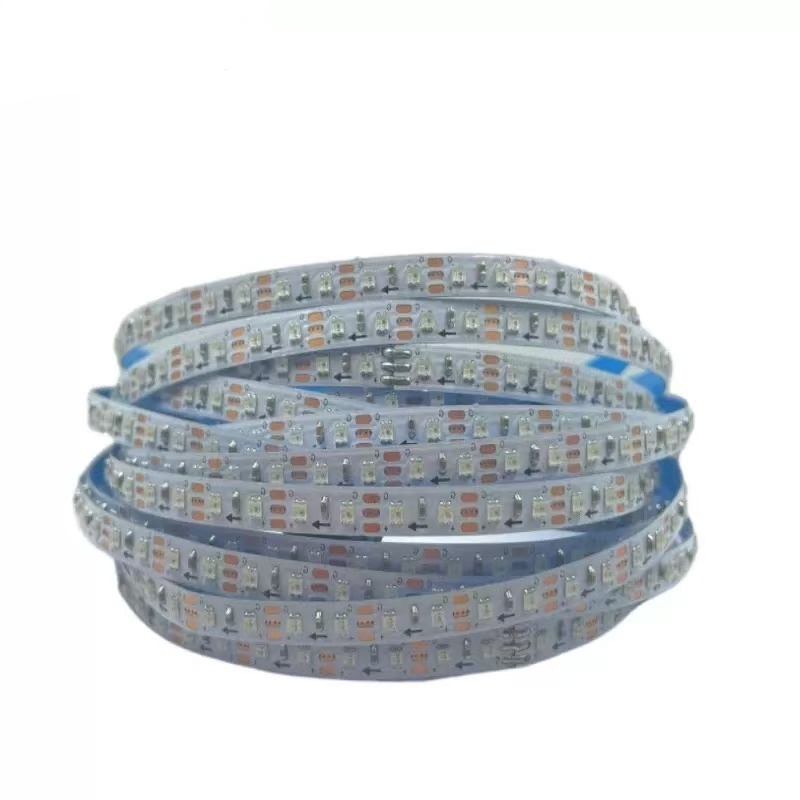

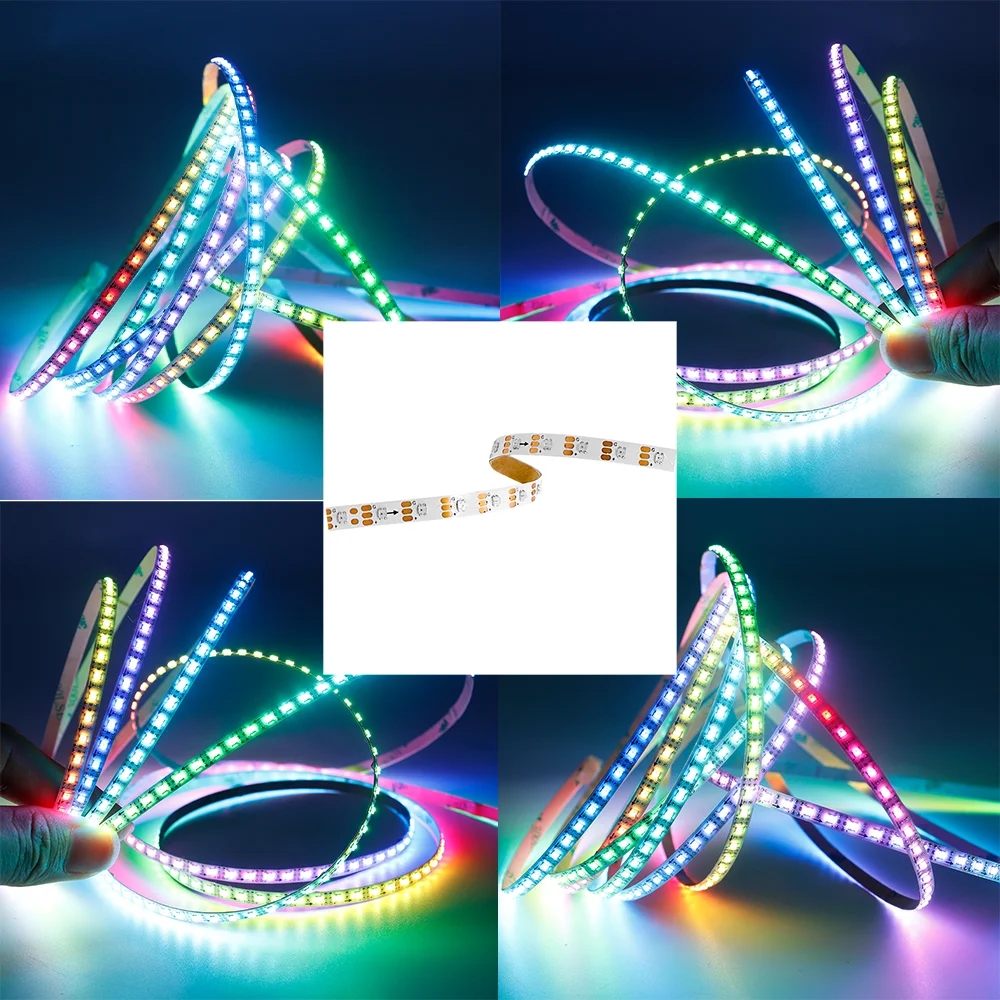

Decorative LED Strip Light 1M-5M 200leds/m WS2812 2020 0807 Addressable LED Strip Flexible DC5V 12V RGB PCB 5mm Wide

Product Description

📊 WS2812B Magic LED Strip Light Data
5V-200L-200LED
RGB
0807SMD IC
1, LED Type: 0807RGB IP30 Non-waterproof
2, IC Type: 2812
3, IC QTY: 200 pc/m / 160pc/m
4, LED QTY: 200LED/m / 160LED/m
5, Volt: DC5V
6, Power: 10w/m Waterproof with silicon tube
7, PCBA Color: White PCB
8, LED Color: White
9, PCB Width: 5mm (200led) / 2.7mm (160led)
10, Package: 5 m/roll
11, 2LED/Cuttable, 10mm cuttable
📝 Product Description
  • IC Type: Built-in WS2812 IC
  • Light Source: 0807SMD LED
  • Gray Level: 256
  • View Angle: 120°
  • Input Voltage: DC5V
  • PCB Width: 5mm
  • LED Qty: 160LEDs/m or 200LEDs/m
  • Thickness: 2mm
  • Cuttable: Each single LED is cuttable
  • Temperature: Storage: -30~+95°C | Operating: -20~+85°C
  • Color: Red (650nm), Green (520nm), Blue (460nm)
  • Connectors: 3pin JST male & female (Red: VCC, White: GND, Green: DATA)

🌟 Easy Installation: Every LED lamp (one 2812B IC) can be arbitrary cut off. Good flexibility and easy installation allows for arbitrary bending.

🌈 Dream Color Lighting: Match with a controller to create colorful effects like curtain-up, flowing water, raindrops, and jump flashes. Animation effects can be edited via Coreldraw, Flash, or LedEdit software.

🏢 Applications

Perfect for making LED screens, LED walls, and advertising boards. Widely applied to hotels, KTV, bars, advertisement companies, decoration companies, city lighting projects, and entertainment/leisure place lighting.

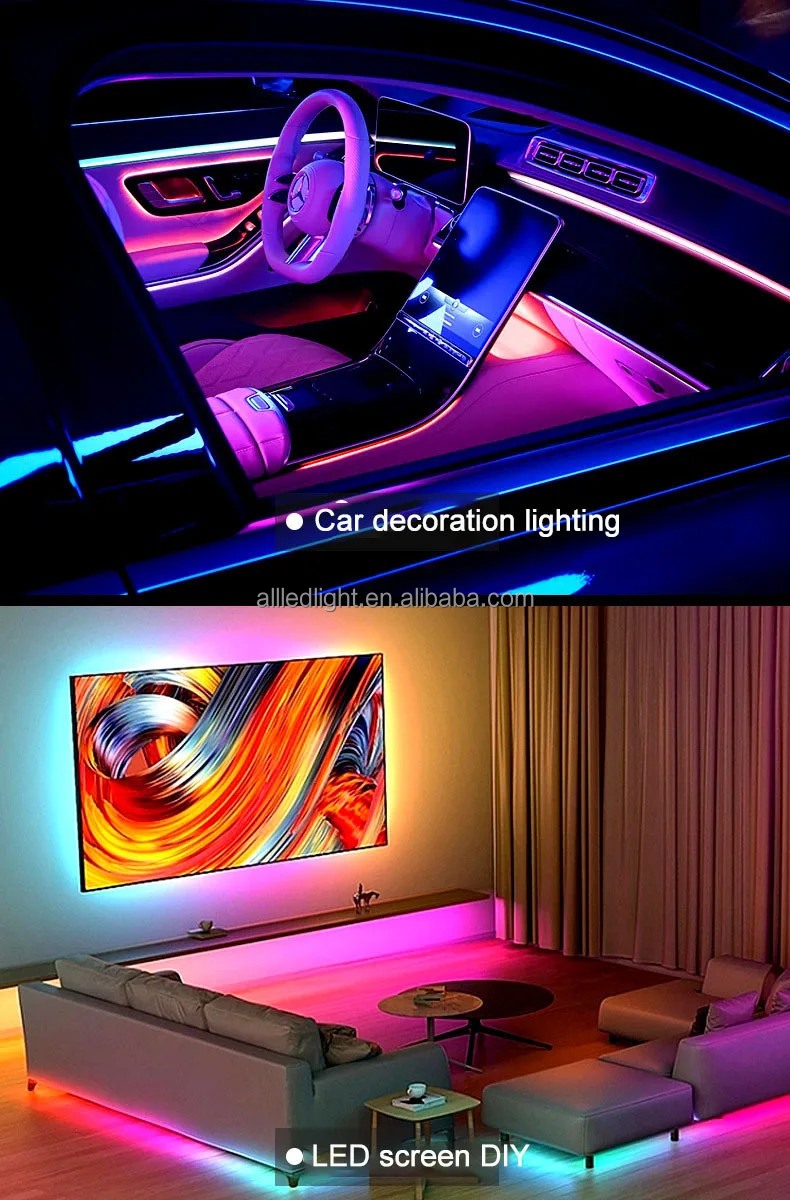

WS2812 LED Strip Application

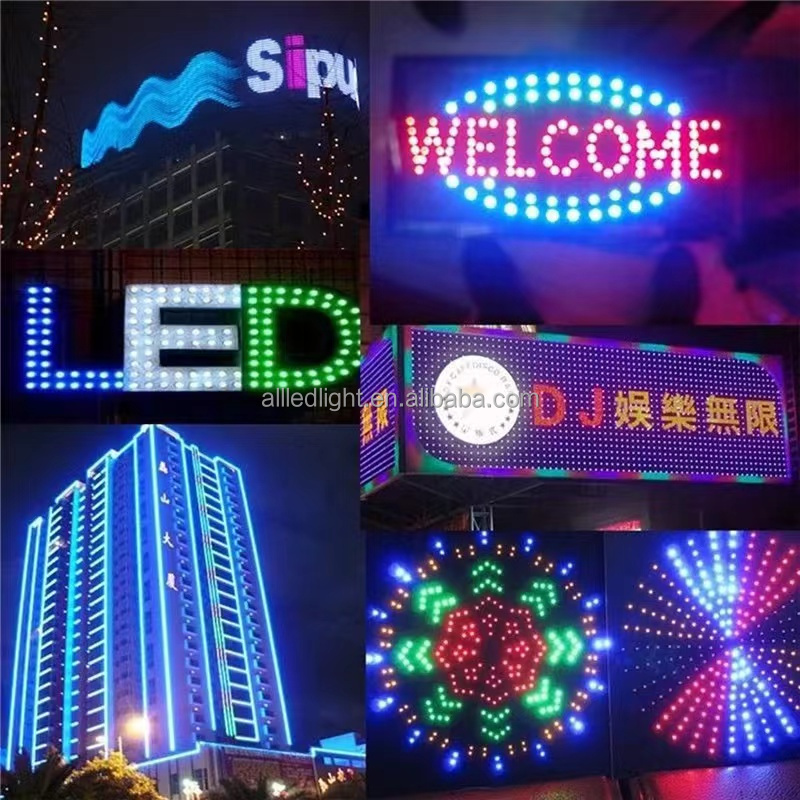

WS2812 LED Strip Display
📦 Package Include

1m LED strip with antistatic bag

📸 Product Gallery

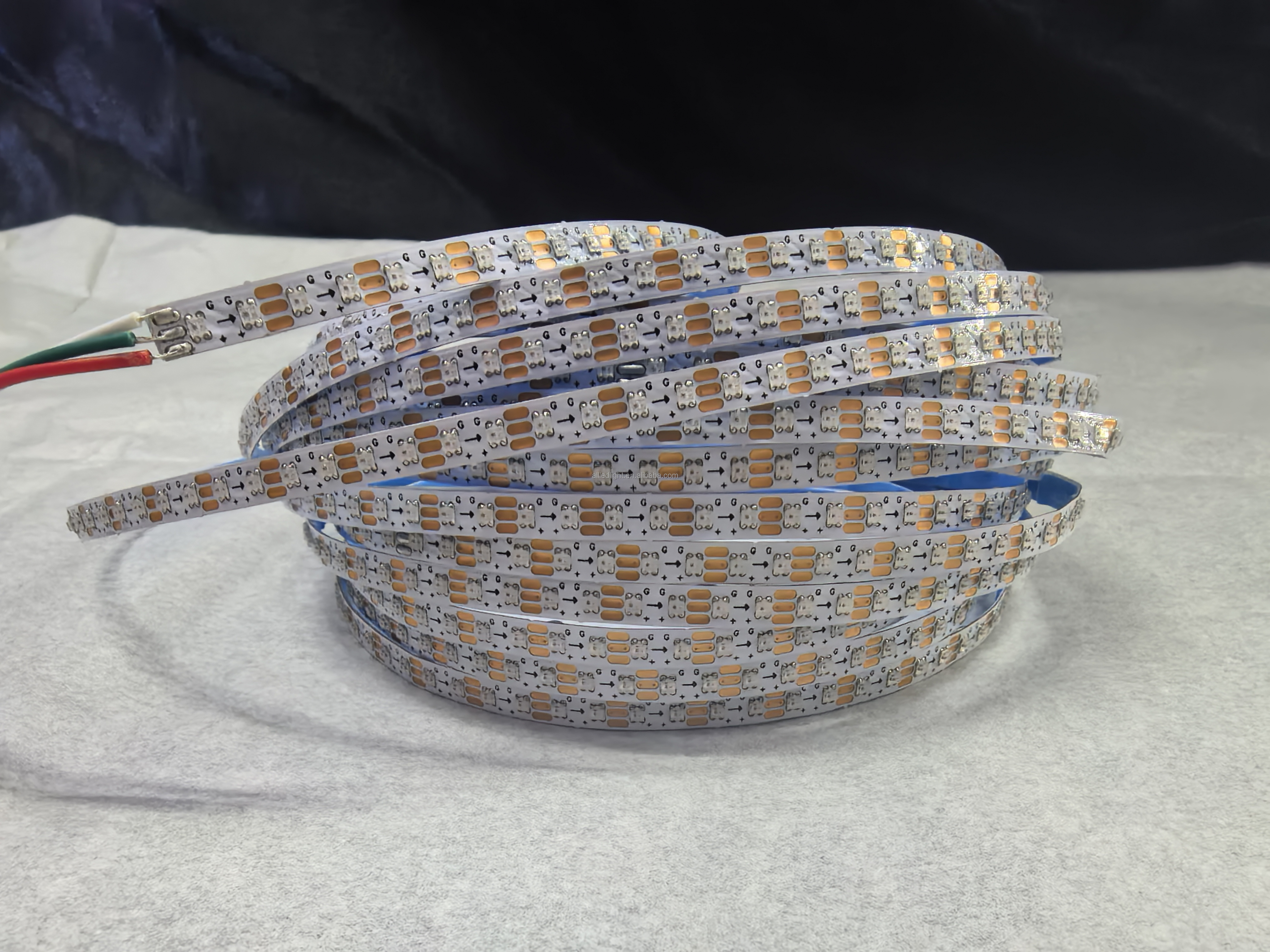

WS2812B Photo 1

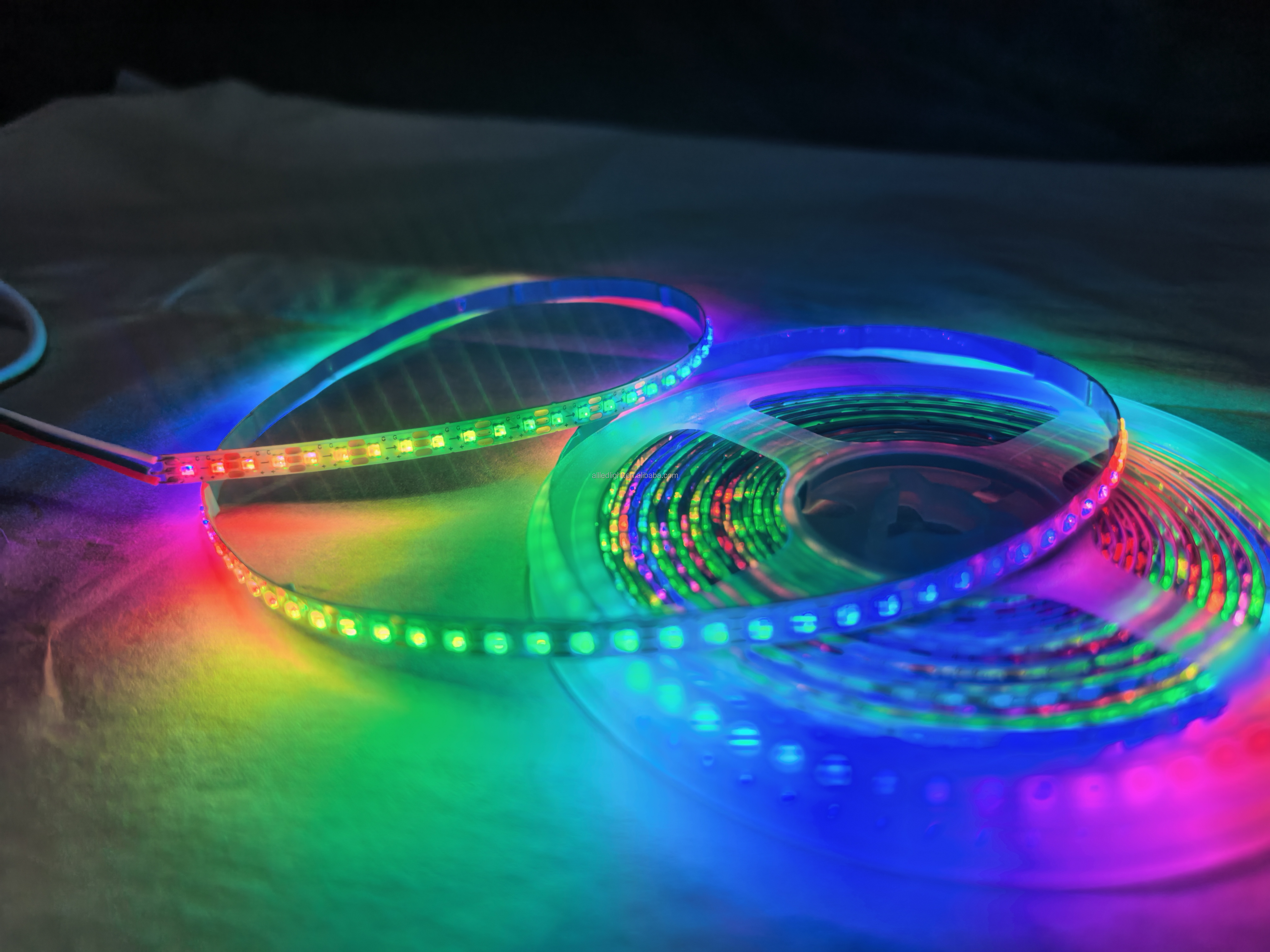

WS2812B Photo 2

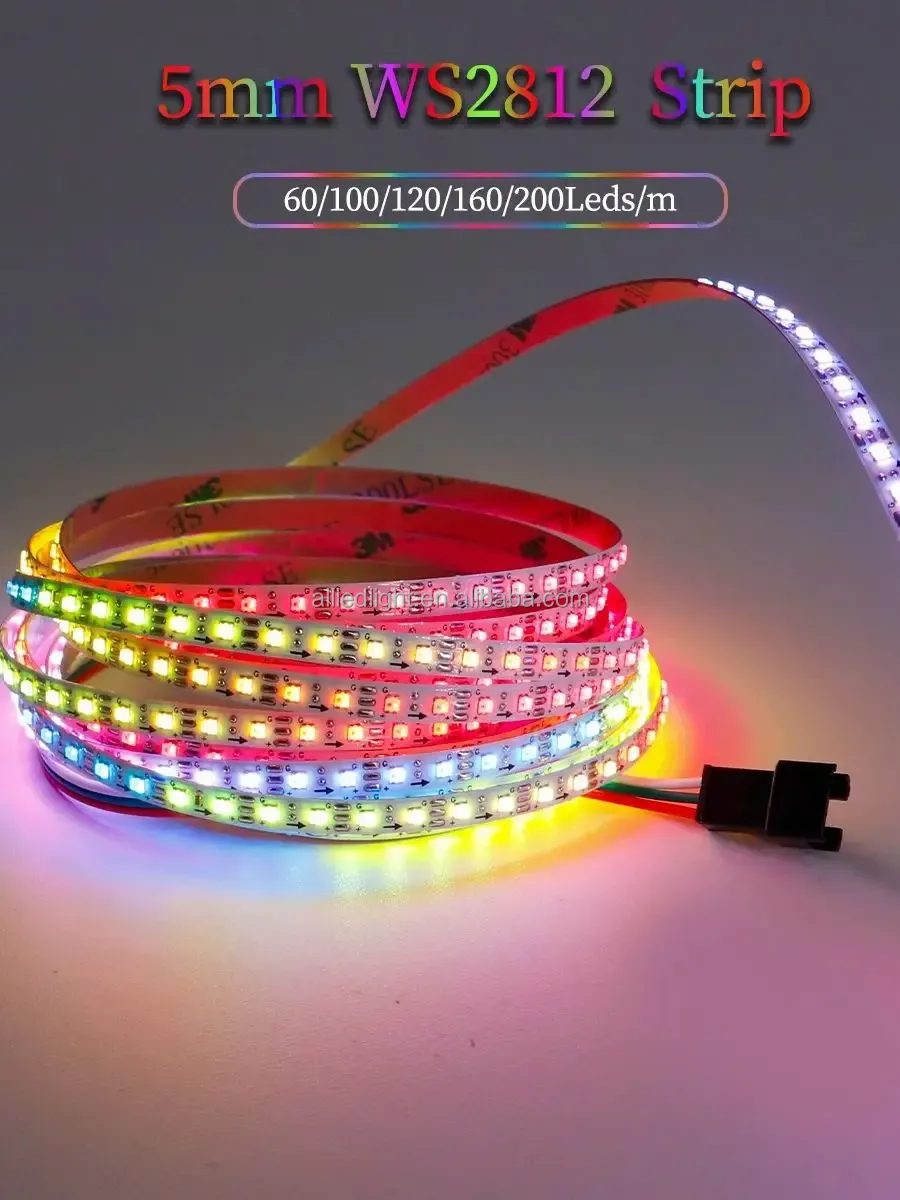

WS2812B Photo 3

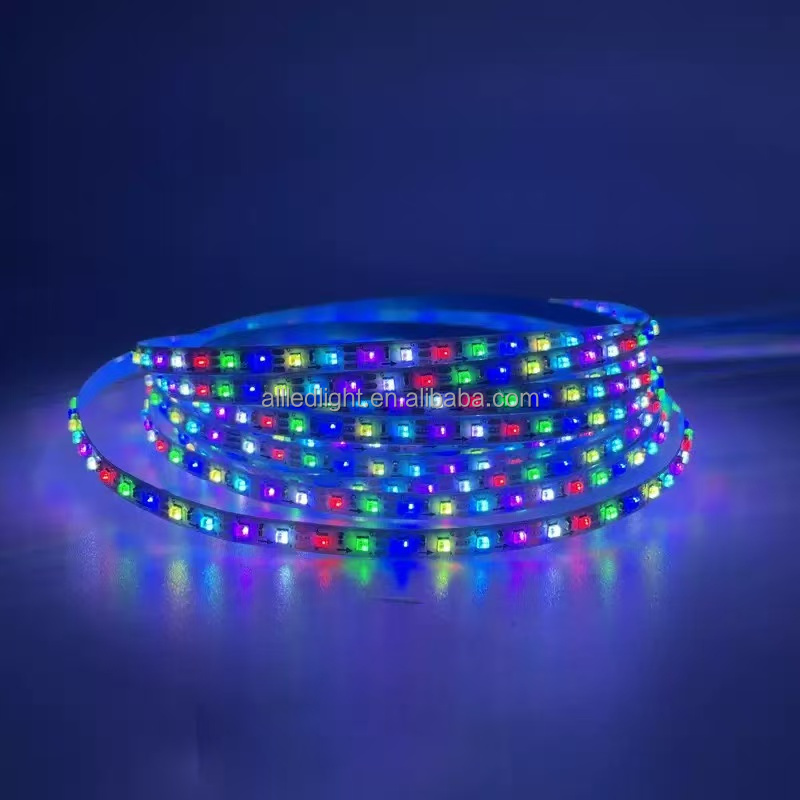

WS2812B Photo 4

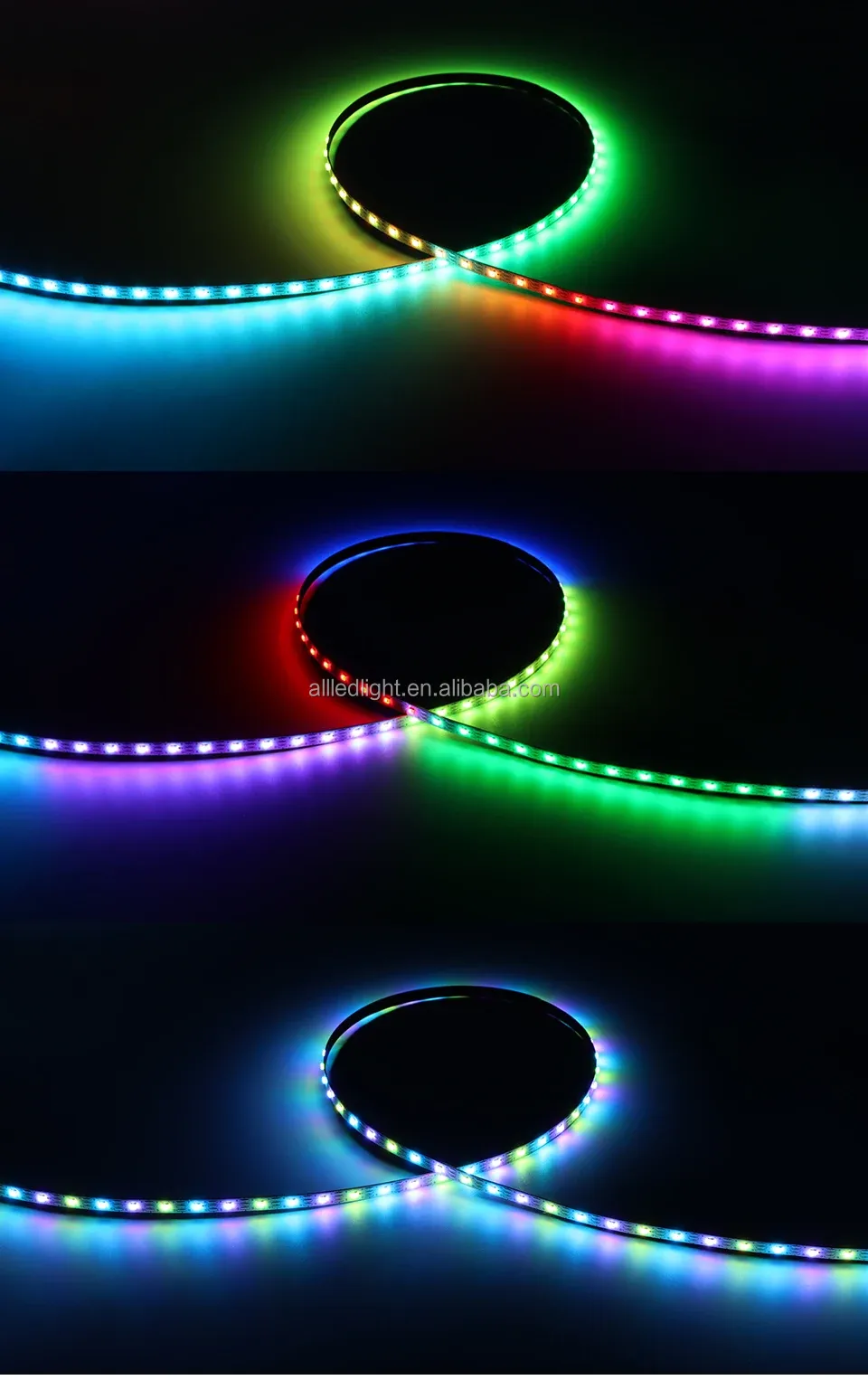

WS2812B Photo 5

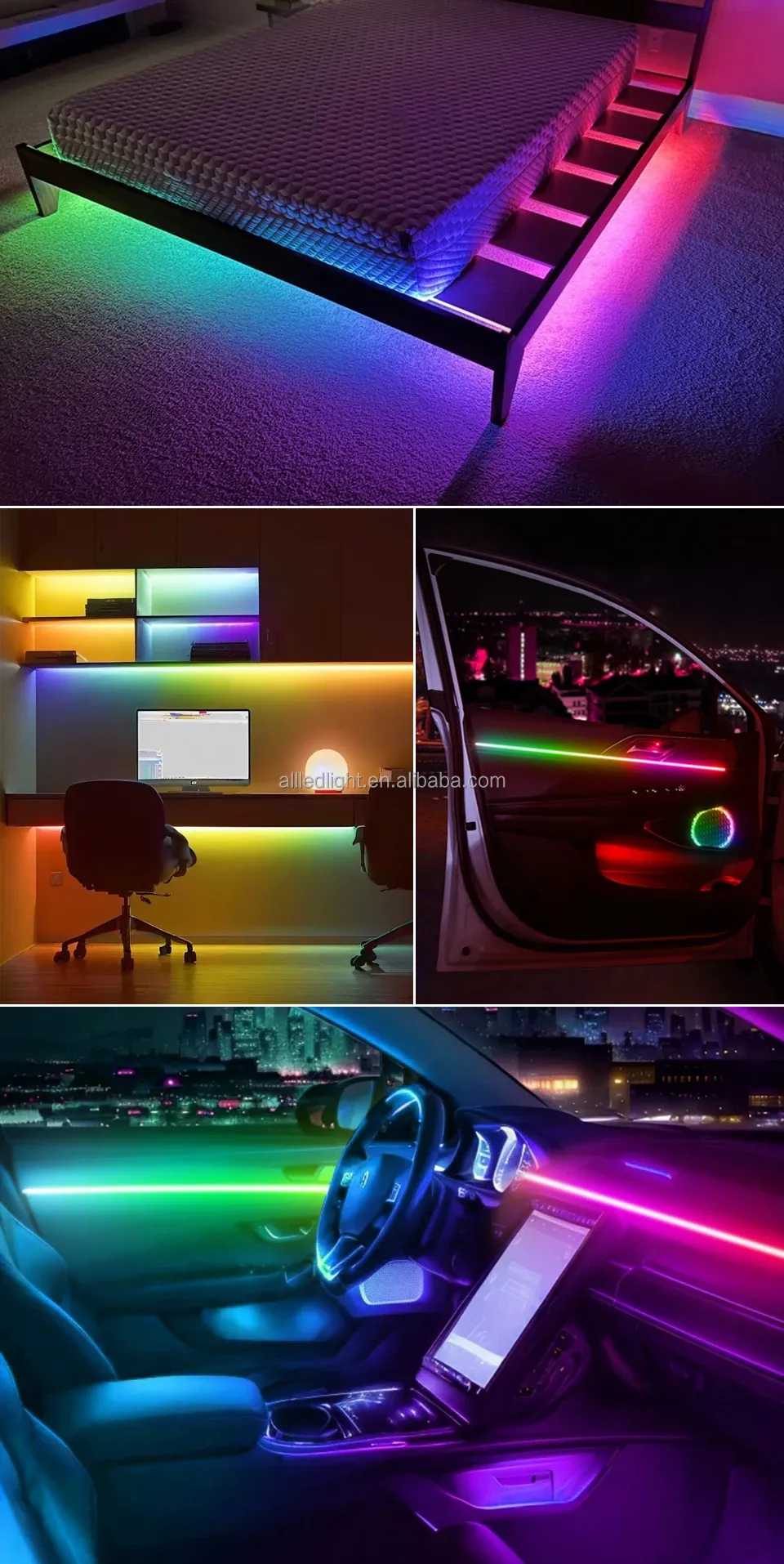

WS2812B Photo 6

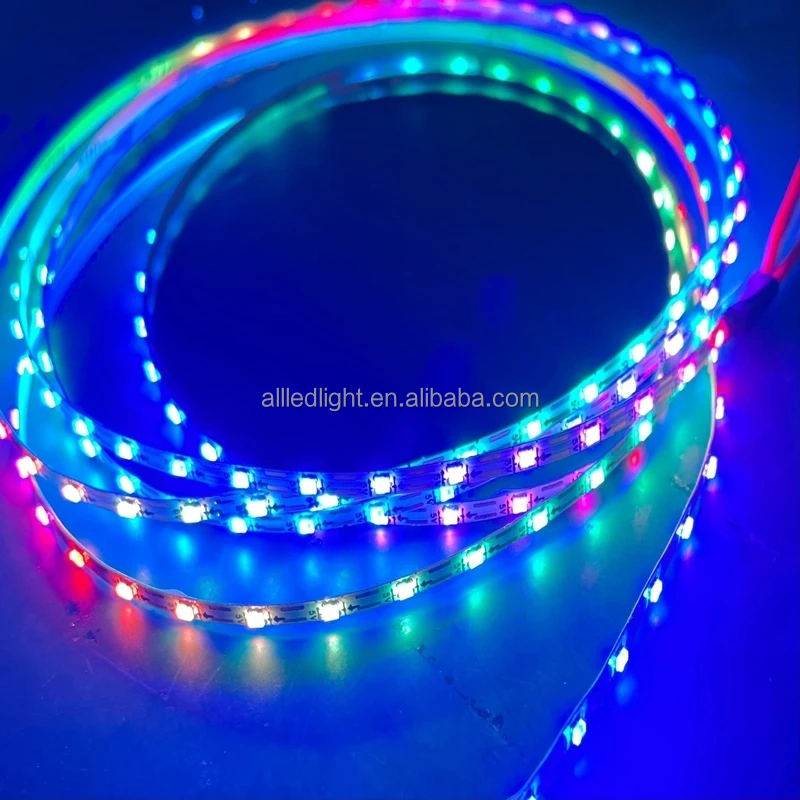

WS2812B Photo 7

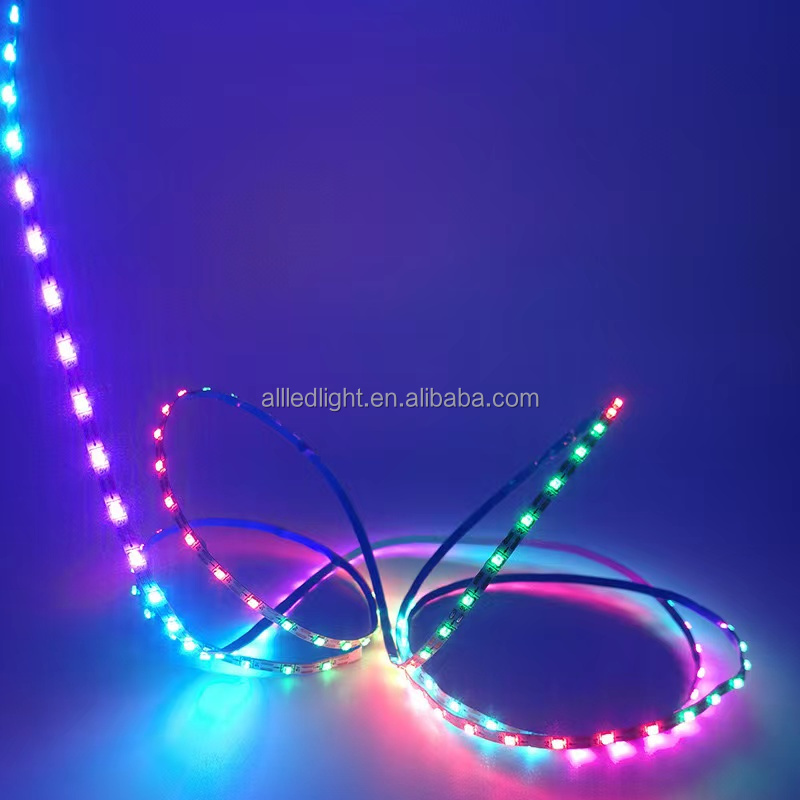

WS2812B Photo 8

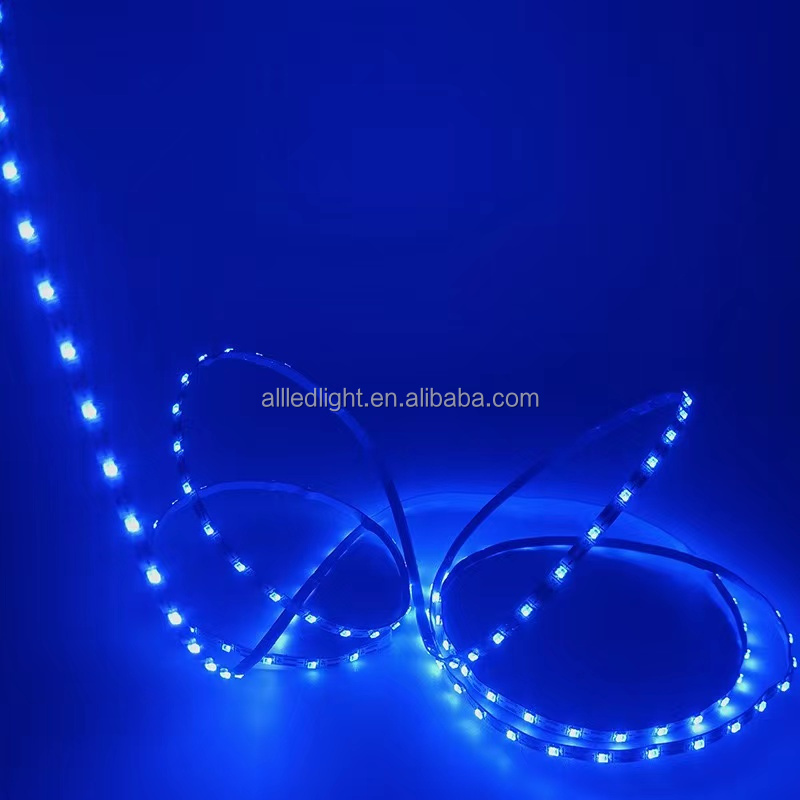

WS2812B Photo 9

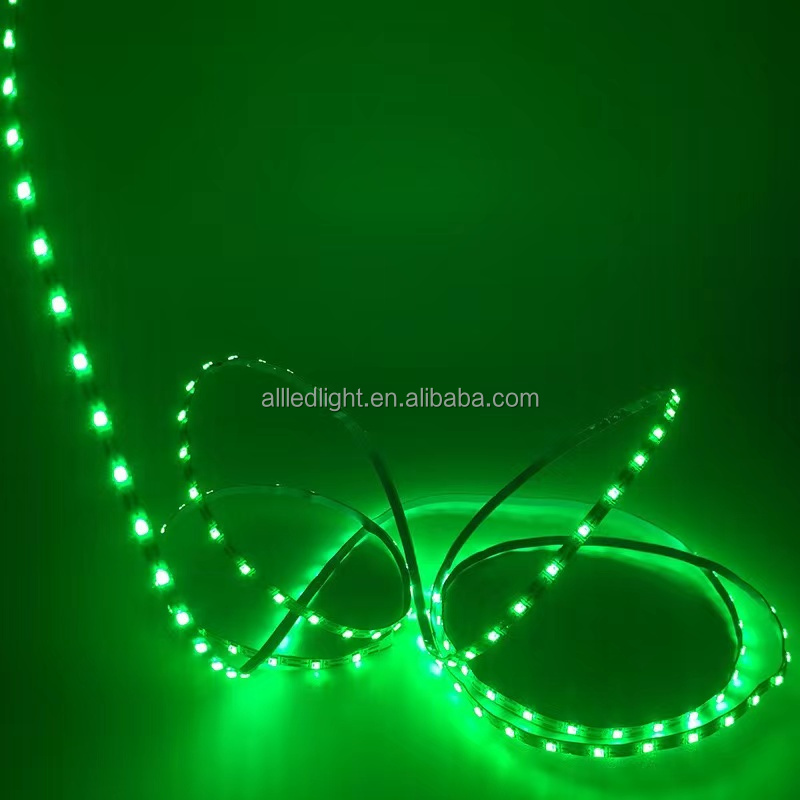

WS2812B Photo 10

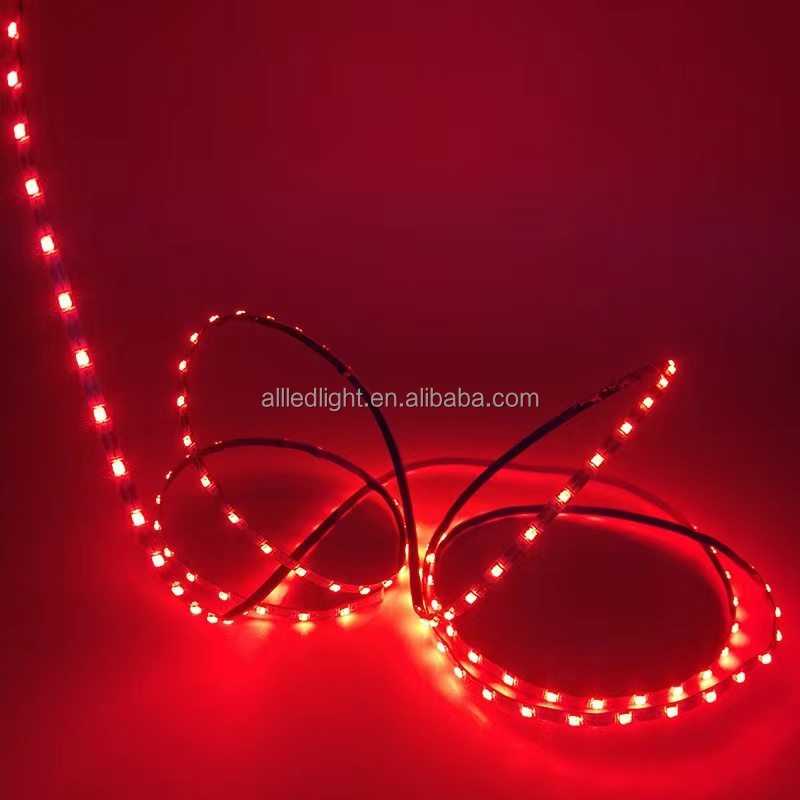

WS2812B Photo 11

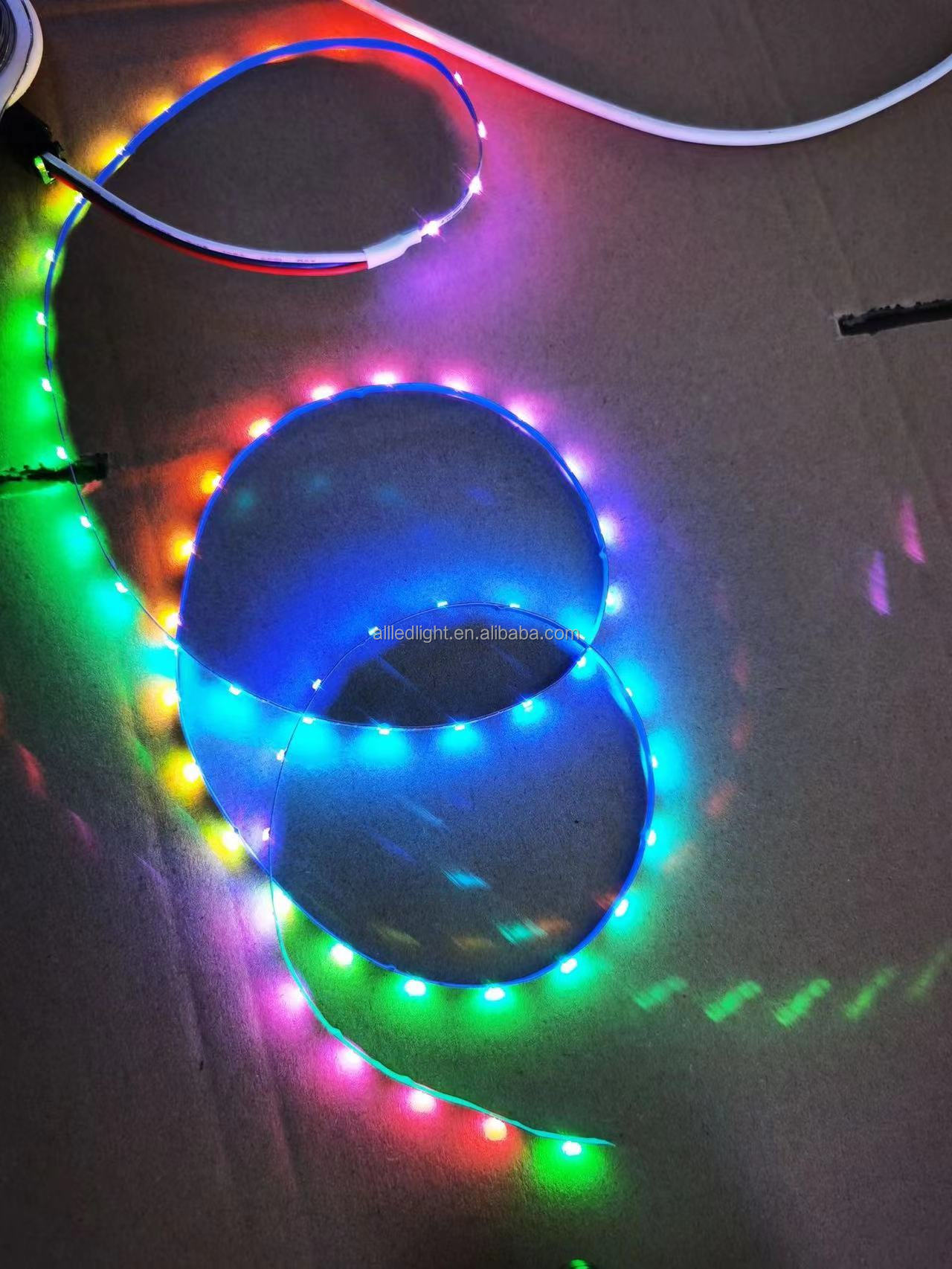

WS2812B Photo 12

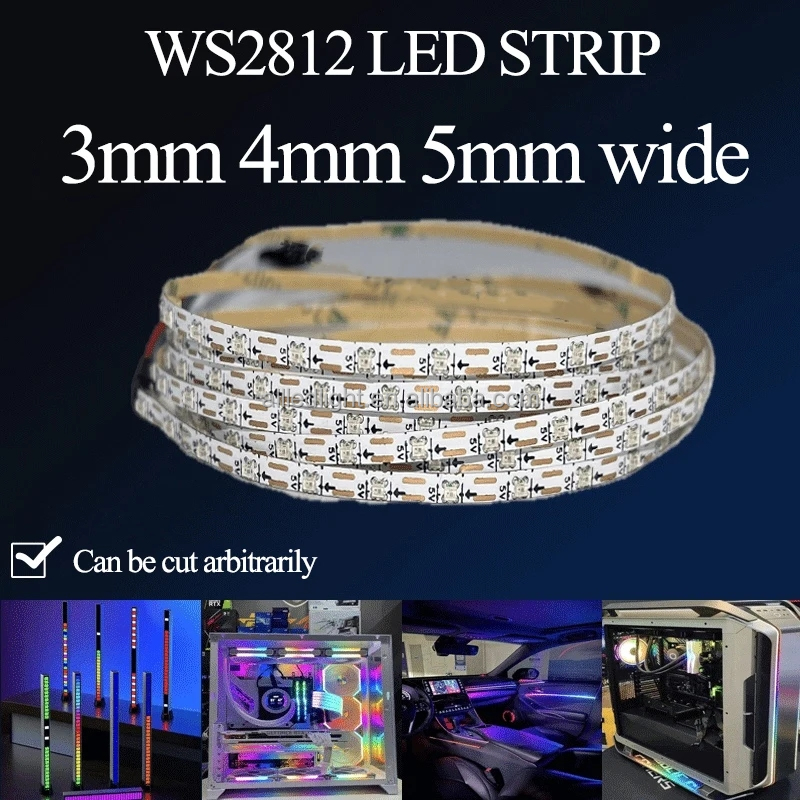

WS2812B Photo 13

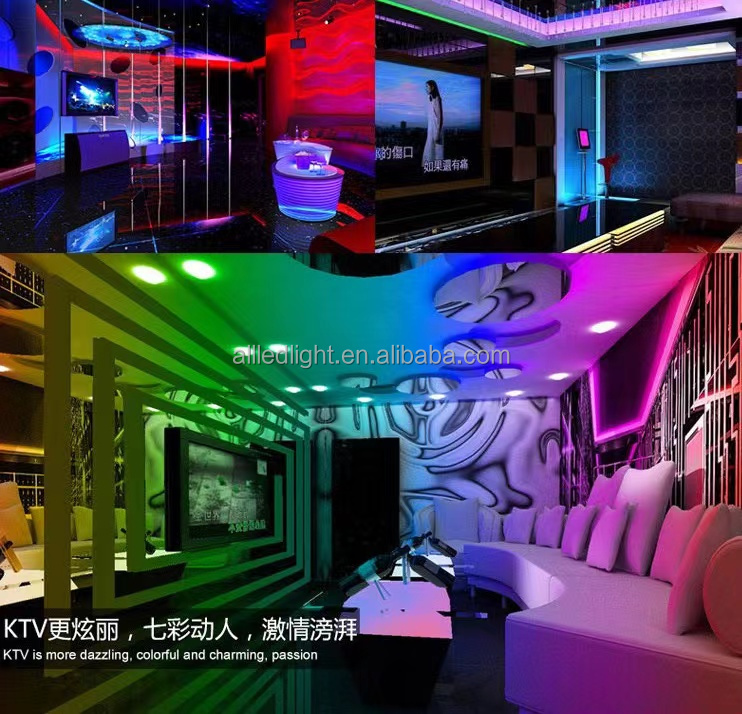

WS2812B Photo 14

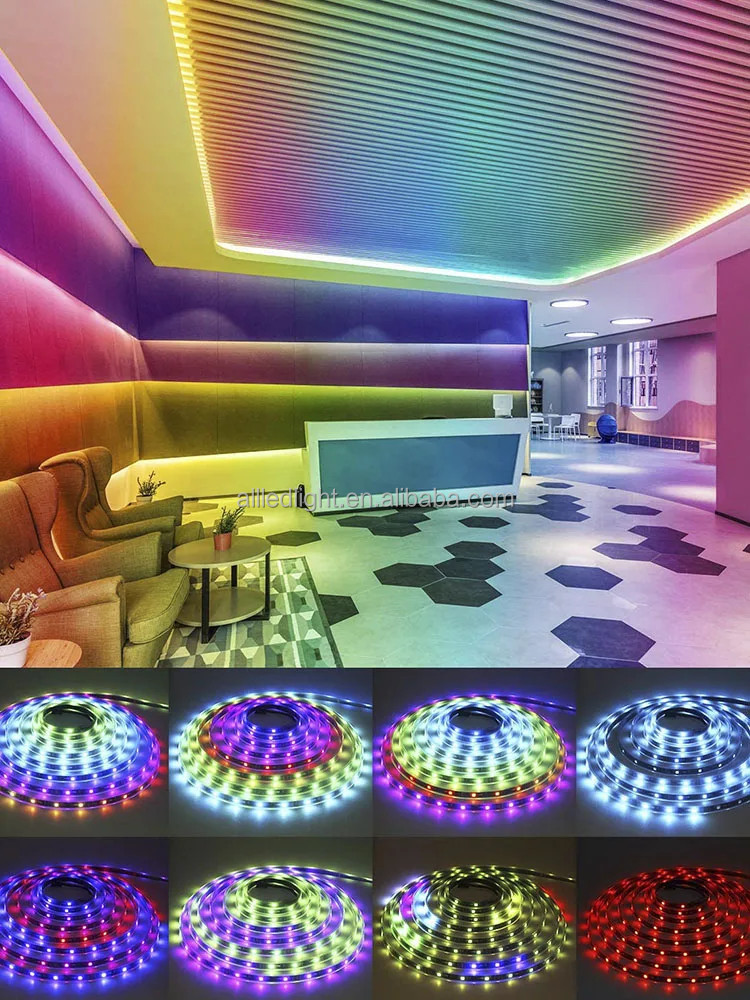

WS2812B Photo 15
Frequently Asked Questions
Q: What is the operating voltage for the WS2812B LED strip?
A: The strip operates on DC5V. Using a higher voltage may damage the LEDs.
Q: Can I cut the WS2812B strip to a specific length?
A: Yes, every single LED is addressable and cuttable, allowing you to customize the strip length easily.
Q: Do I need a special controller for this LED strip?
A: Yes, an external digital controller is required to achieve the "magic" color-changing and animation effects.
Q: Is the IP30 version suitable for outdoor use?
A: No, the IP30 version is non-waterproof and is intended for indoor use only. For wet areas, please choose the waterproof version with a silicon tube.
Q: What is the difference between the 160LED/m and 200LED/m options?
A: The primary difference is the LED density and PCB width. The 200LED/m strip is 5mm wide, while the 160LED/m version is 2.7mm wide.
